Quick Start
This section describes basic procedures to help you get started quickly with the instrument.
l Prepare Instrument for Use
l Adjust the Carrying Handle
l Use Built-in Help System
l Rack Mount the Instrument
Prepare Instrument for Use
Verify that you received the following items. If anything is missing, please contact your nearest Agilent sales office or
Agilent authorized reseller.
l Power cord (for country of destination)
l Certificate of Calibration (optional)
l Agilent 34460A/61A Product Reference CD (product software and manuals) (optional on 34460A)
l Agilent Automation-Ready CD (Agilent IO Libraries Suite) (optional on 34460A)
l Supplemental documentation packet
l USB 2.0 cable (optional on 34460A)
The latest product documentation is available at www.agilent.com/find/truevolt-doc. For documentation for mobile
devices, see www.agilent.com/find/truevolt-mobilehelp.
To download the Digital Multimeter Connectivity Utility, go to www.agilent.com/find/DMMutilitysoftware.

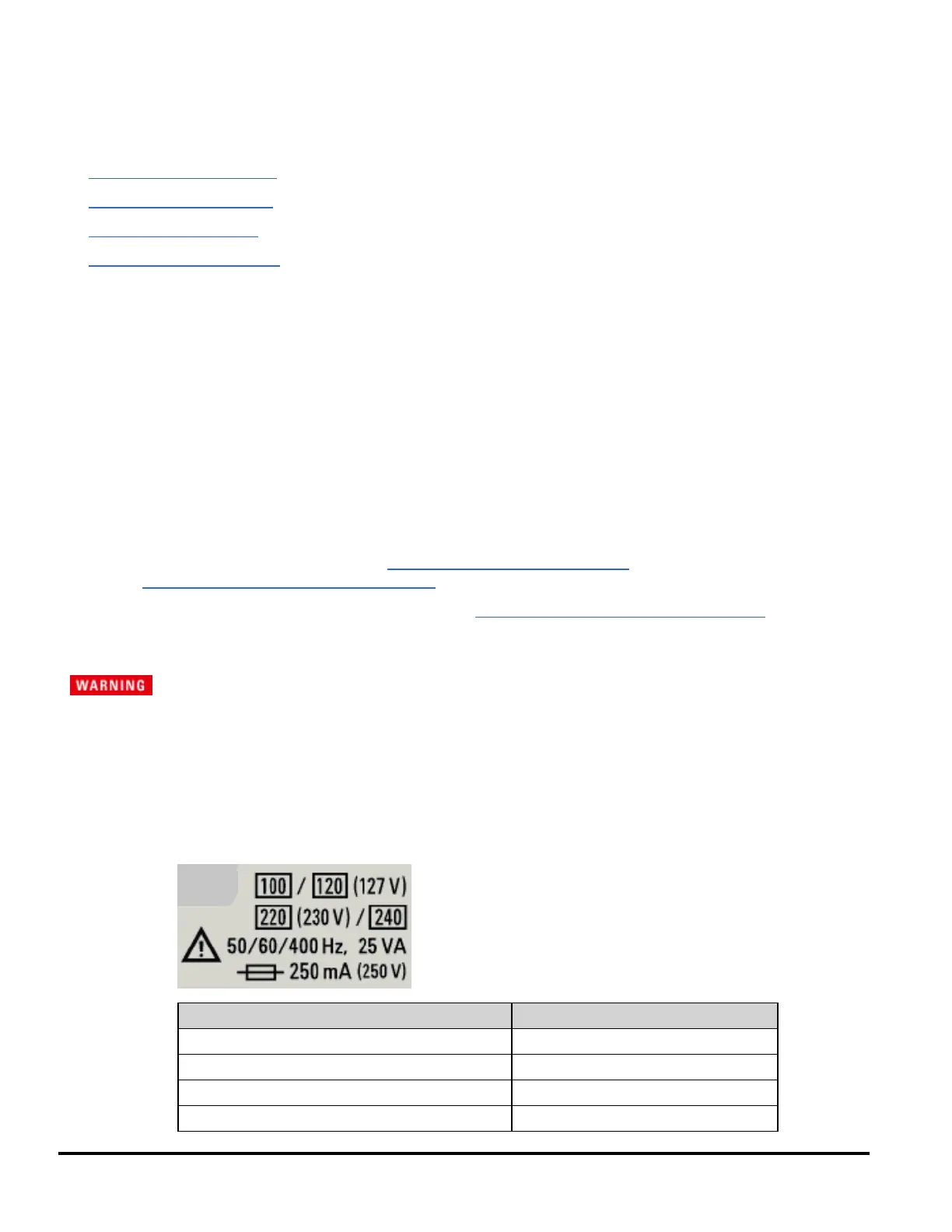

Setting the AC Mains Line Voltage Selector and Fuse Installation
Before plugging the instrument into AC mains power, verify that the line voltage
setting visible on the back of the AC mains input module is correct for the AC mains
power source being connected. The line voltage selections are shown in a box on the
rear panel immediately to the left of the AC mains input module. Other nominal line
voltages are shown in parentheses.
Verify that the correct fuse is installed. To replace a blown fuse or verify the correct
fuse, pull it gently from the fuse drawer and insert the correct working fuse. Use only
a 5x20 mm, time-lag, 0.25 A, 250 V certified fuse. The Agilent part number is 2110-
0817.
AC MAINS Nominal Line Voltage Range AC Mains Line Voltage Selector
100 - 115 100
120 - 127 120
202 - 230 220
240 240
10 Agilent Truevolt Series DMM Operating and Service Guide
