Number

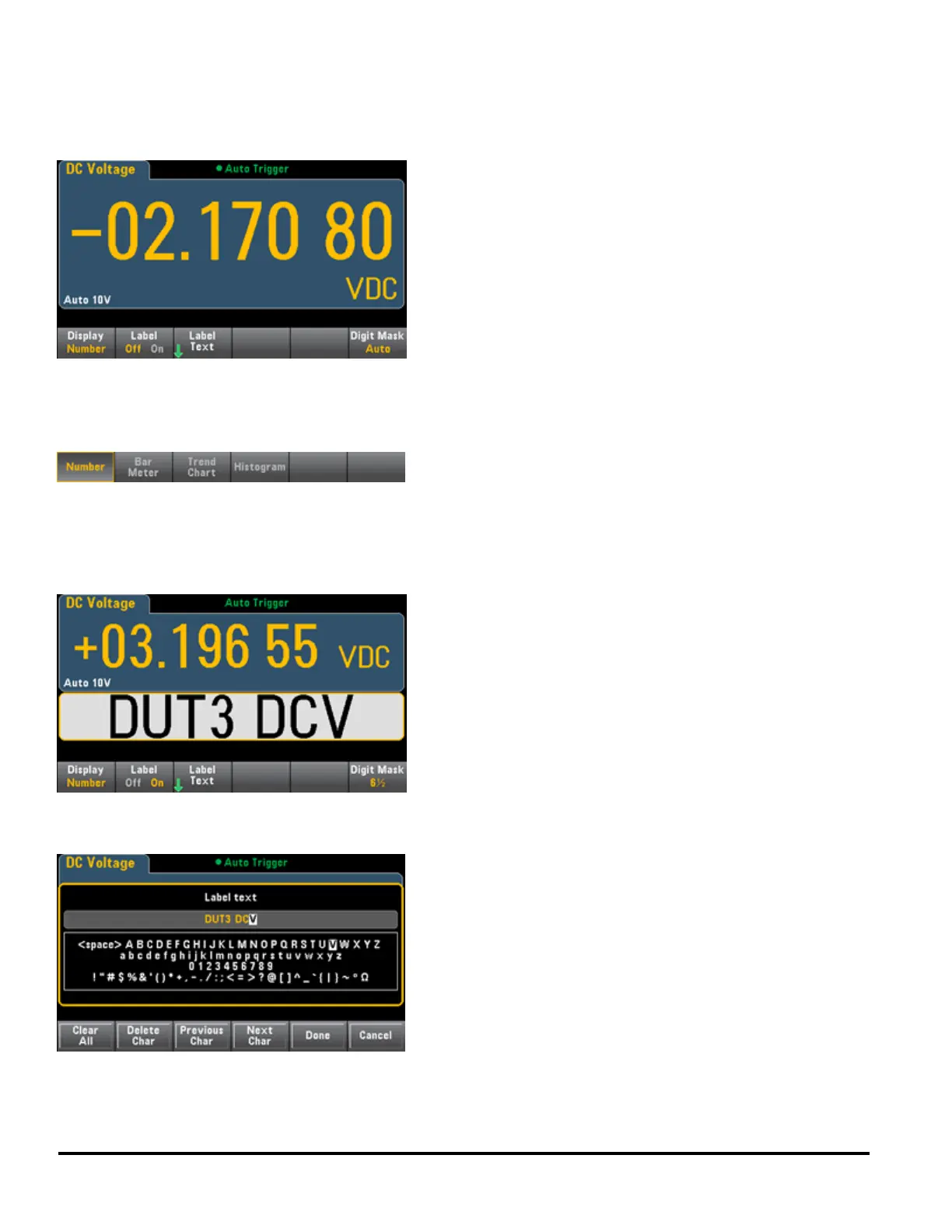

By default, the instrument shows a reading as a number (below).
Selecting the Display
The Display softkey allows you to select a different display (below). The trend chart is available on the 34461A only:
Adding a Label
The Label softkey allows you to add a large text label on the screen. For example, you can use this to indicate what
measurement is being taken by the DMM.
To enter the text, press Label Text and use the softkeys and front-panel arrow keys to modify the label (below). Then
press Done. Note that the label's font automatically shrinks to accommodate longer labels.
62 Agilent Truevolt Series DMM Operating and Service Guide
