Installation Procedure
1. Turn off the power and remove all measurement leads and other cables, including the power cord, from the
instrument before continuing.

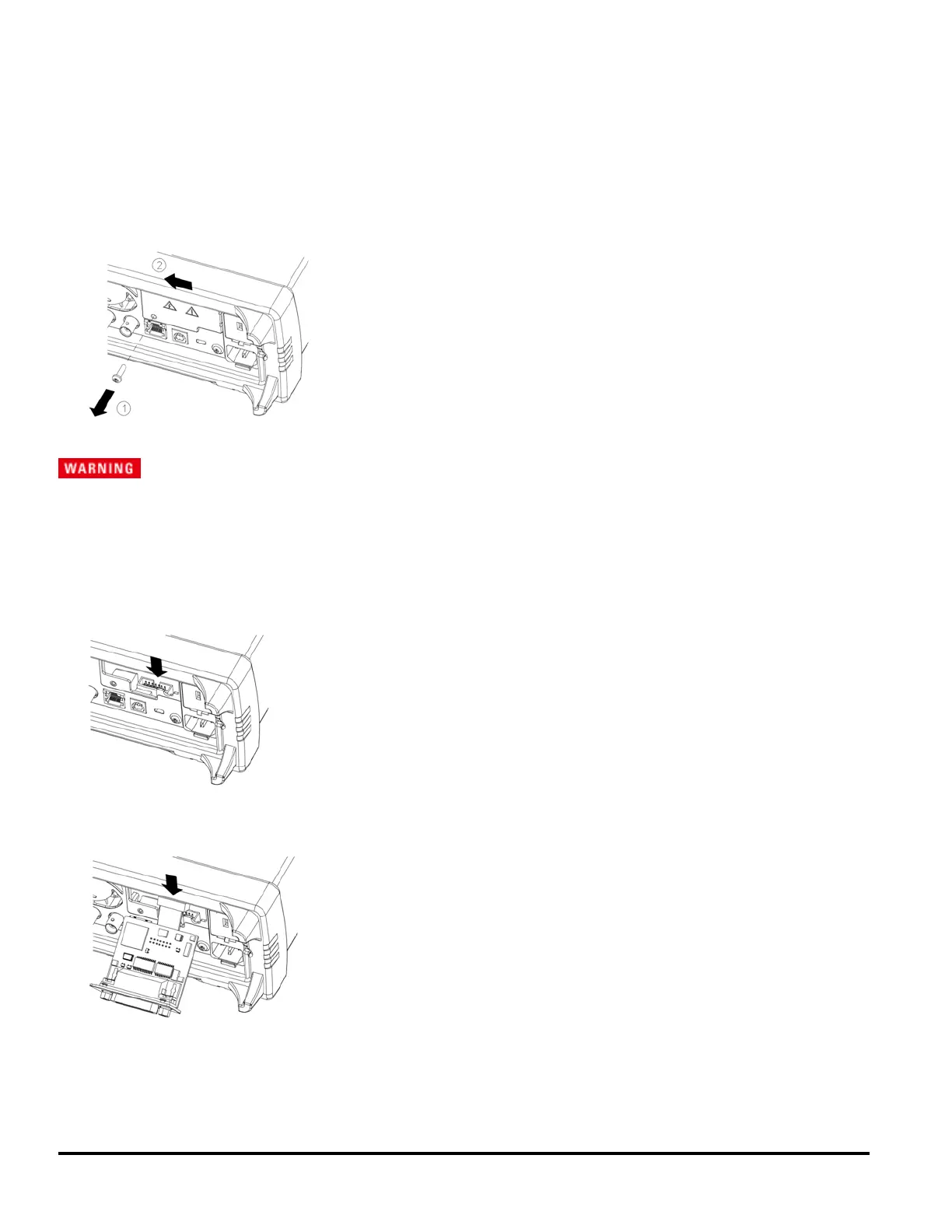

2. Use the Torx driver to remove the screw from the GPIB cover plate. Retain the screw for use later in this
procedure. Then remove the cover plate by sliding it to the left.
Retain GPIB Cover Plate
After installing the GPIB option, retain the cover plate for use in the event that you ever
remove the GPIB option. The instrument should never be connected to power or inputs on
the measurement terminals without either the GPIB module or the cover plate securely
covering the rear-panel opening.
3. Locate the connector, just inside the unit, for the cable attached to the GPIB module
4. Bend the cable so that it is extends above the circuit board. Attach the cable to the connector that was located in
the previous step.
308 Agilent Truevolt Series DMM Operating and Service Guide
