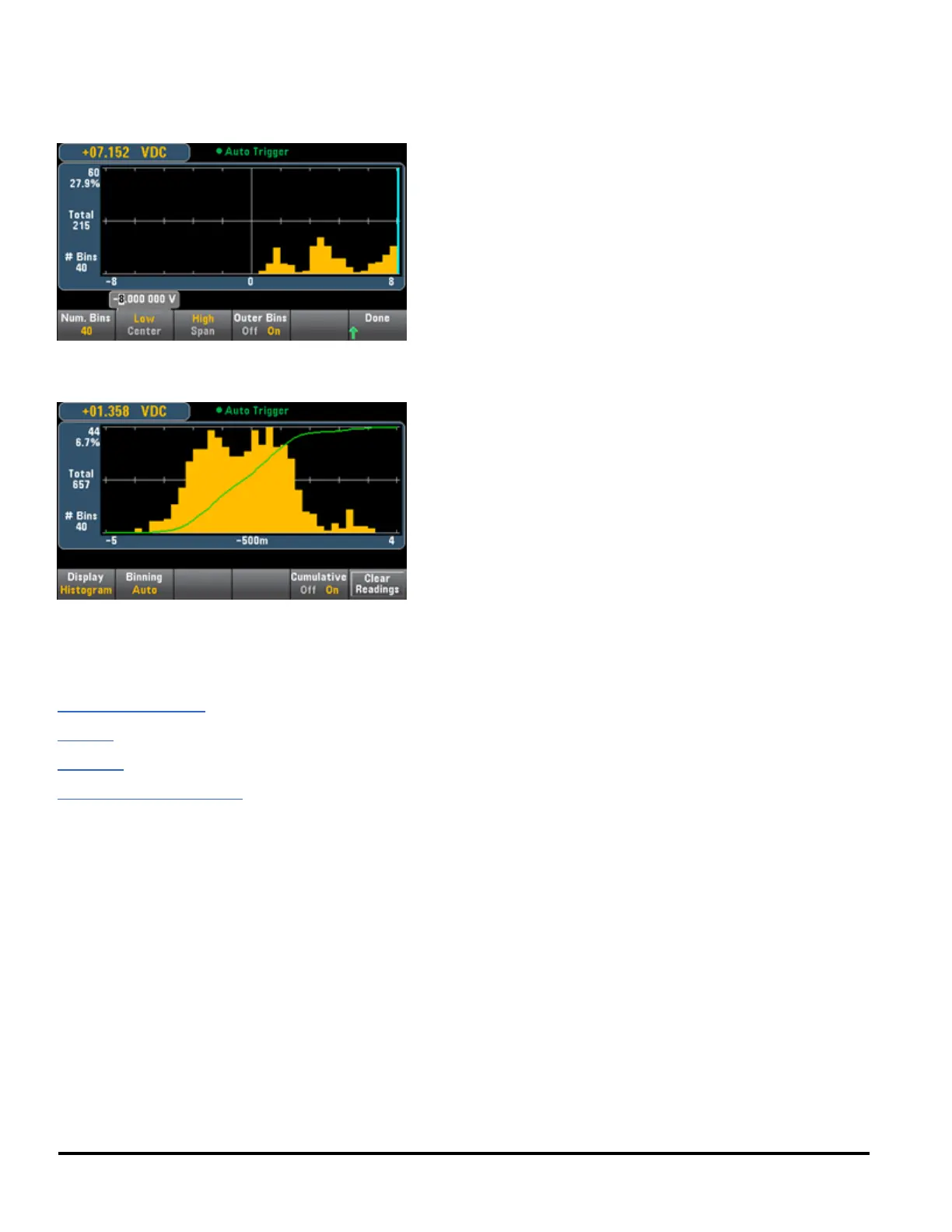

The image below adds the outer bins to the display (below). The relatively large number of readings above the bin range
(the cyan bar) causes the bars within the bin range to shrink.
The main histogram menu also includes a Cumulative softkey that hides or shows a line representing the cumulative
distribution function, which always goes up to 100%.
The final button on the histogram menu, Clear Readings, clears reading memory and starts a new histogram.
See Also
Display - Introduction
Number
Bar Meter
Trend Chart (34461A only)
68 Agilent Truevolt Series DMM Operating and Service Guide
