NE management by software application
MPR-e
209

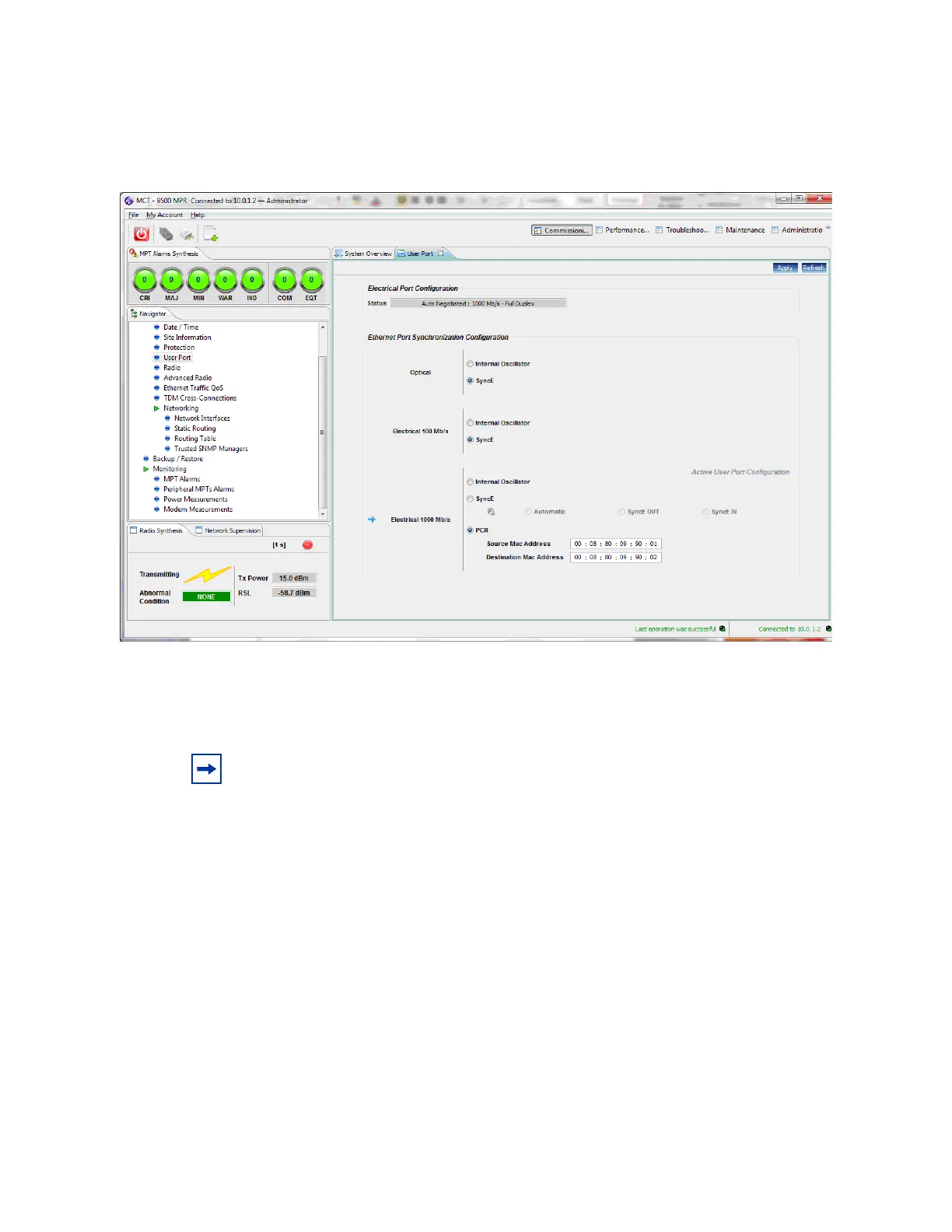

Figure
103:
Electrical
1Gb/s ac
tive c
onfiguration with PCR synchronization
If PCR has been selected, the Source MAC Addr
ess and the Destination MAC
Address must
be entered.
Note:
Multicast MAC addresses
are not suppor
ted.
Synchronization must be provisio
ned for
PCR between the M
PR-e standalone and
a PMC
port on the 7705
SAR. The
source and destination
MAC addresses for the 7705
SAR ar
e
available in
Table
75
.
208
210
