NE management by software application
MPR-e 247
• Adaptive modulation
• Qos ethernet
• Traffic port ethernet
• Monitoring

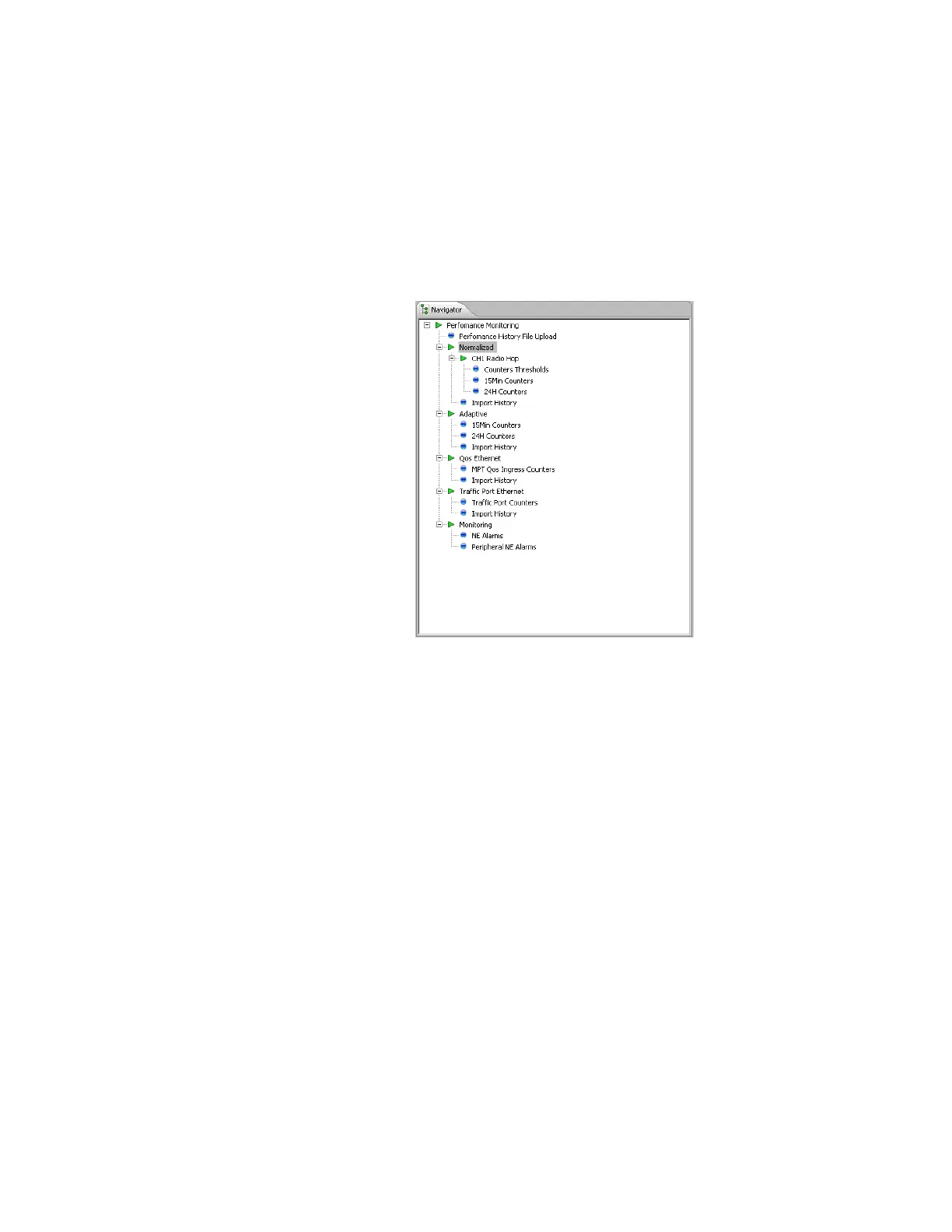

Figure 152: Performance monitoring menu
Performance history file upload
This menu allows you to export a .csv file with data regarding the performance counters. This
operation is done through an FTP session. This menu is not available in Single NE mode with
7705 SAR.
• Check the FTP Server Parameters area with the FTP Server parameters.
•the Apache Server, available on the TCO Software Suite R5.0 DVD-ROM, is used
as default FTP server. Check that the following parameters have been correctly setup.
→ Server address: PC address
→ Username: anonymous
→ Password: anonymous
→ Port: 21
• In the Performance Family field, select the type of counters to be exported:
Normalized Performance Counters (see Normalized) / Adaptive Modulation
Counters (see Adaptive modulation) / MPR-e QoS Ingress Counters (see MPT QoS
ingress counters) / Traffic Port Counters (see Traffic port counters).
