9500 family overview
74 MPR-e
The power must be provided from the MPT Extended Power Unit to the MPT-XP Data+DC
connector.
The MPT-XP is frequency dependent.

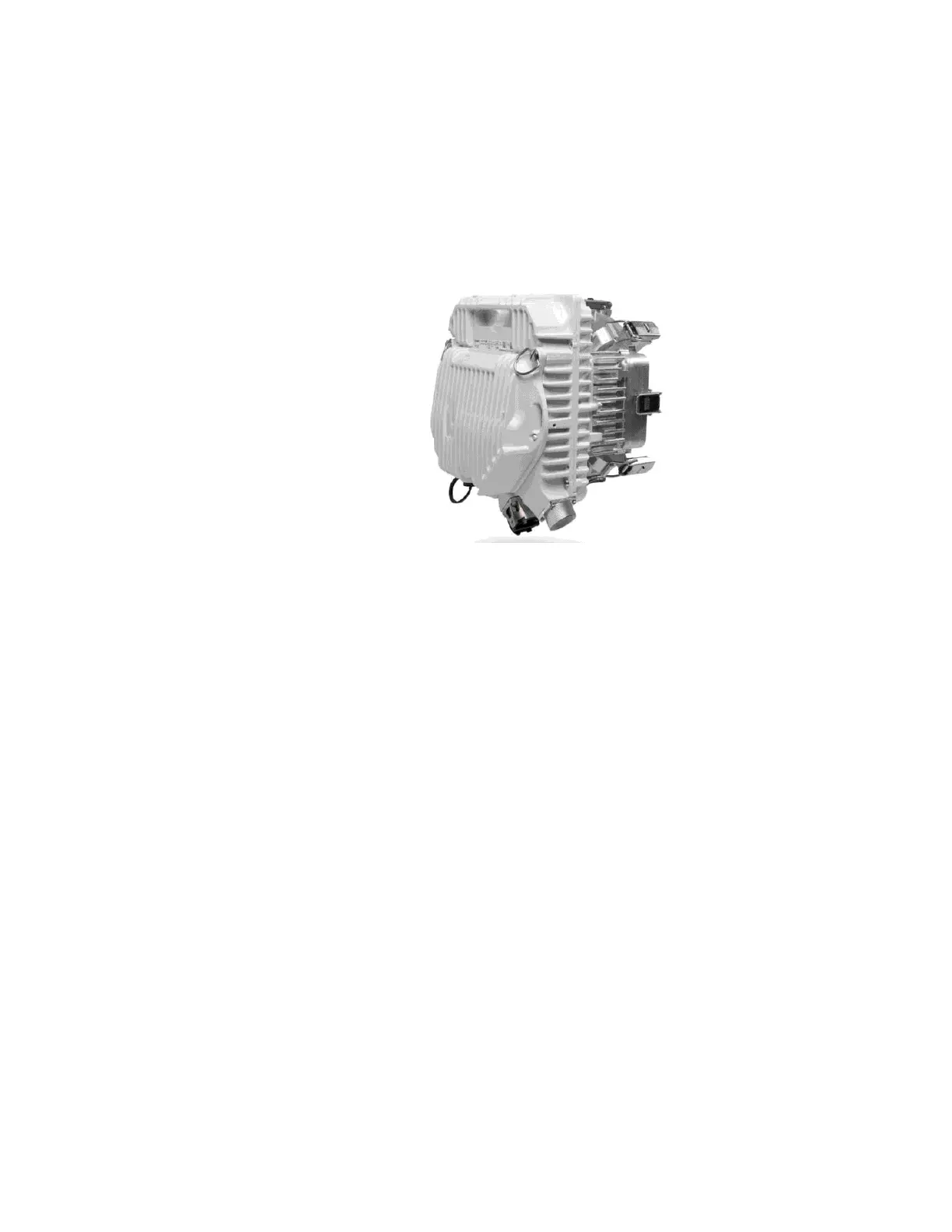

Figure 25: MPT-XP
MPT-XP connectivity (1+0 configuration)
The MPT-XP can be connected to the Ethernet generic Device through:
• Electrical interface
or
• Optical interface (an optional SFP must be installed in the MPT-XP).
Electrical interface
The MPT-XP MUST be connected to a MPT Extended Power unit through one electrical
Ethernet cable.
The maximum cable length is 100 m.
Figure 26 shows the connections used with the MPT Extended Power Unit.
The MPT Extended Power unit is an indoor device that is installed in a 19-inch or 21-inch
rack.
