Rockwell Automation Publication 750-IN001P-EN-P - April 2017 107
Lift and Mount the Drive Chapter 3

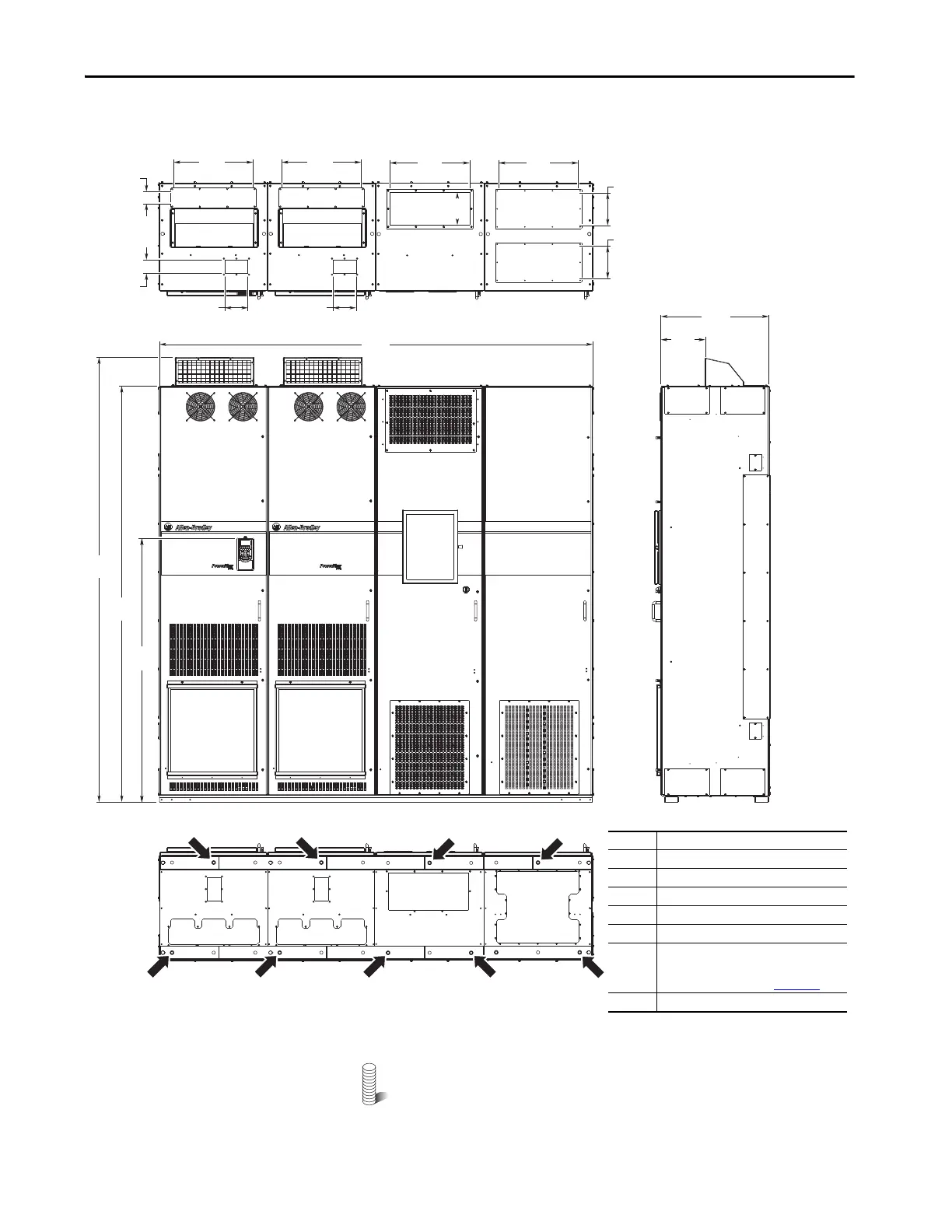

Figure 71 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 9
(Enclosure Code B)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
600
(23.6)
240
(9.4)
440
(17.3)
183
(7.2)
183
(7.2)
180
(7.1)
440
(17.3)
440
(17.3)
127
(5.0)
440
(17.3)
127
(5.0)
76
(3.0)
1
1
1
1
1
2
3
4
5
6
7
2
68
(2.7)
2453
(96.6)
2300
(90.6)
1464
(57.6)
2400
(94.5)
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4 Optional HIM.
5 Option bay disconnect switch access door.
6 Interlock override switch.
For instructions and precautions see the
Hardware Service Manual, 750-TG001
.
7 Recommended nine-hole anchoring.
Bottom
Top
600 mm (23.6 in.) Deep Drive with Cabinet
Options Bay and Wiring Bay
To Next Page
