Chapter 3 Lift and Mount the Drive

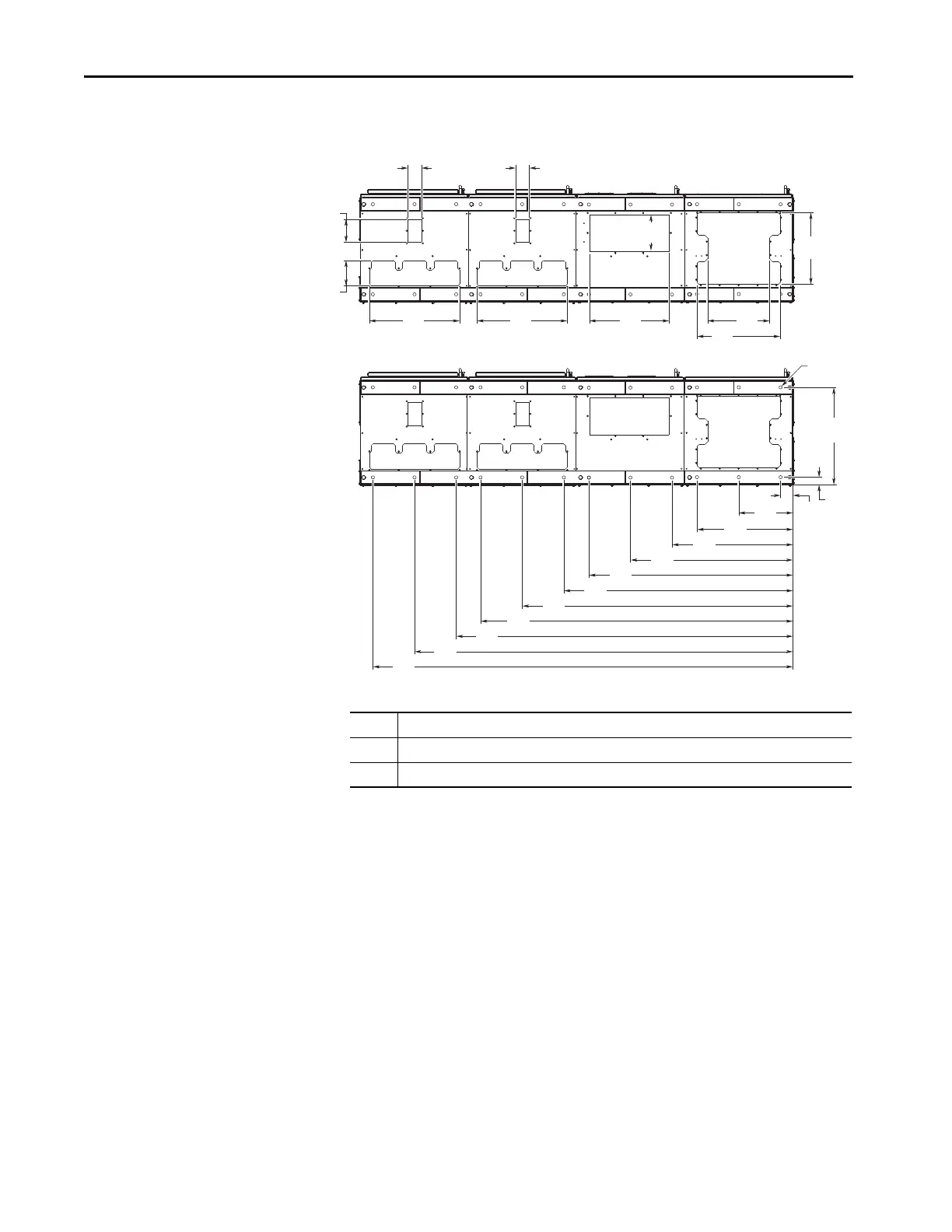

Figure 72 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 9 Bottom Access
(Enclosure Code B)
ø18.0
(0.71)
542
(21.3)
43
(1.7)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
69
(2.7)
1269
(50.0)
1500
(59.1)
1731
(68.1)
1869
(73.6)
2100
(82.7)
2331
(91.8)
500
(19.7)
500
(19.7)
460
(18.1)
344
(13.5)
440
(17.3)
141
(5.6)
1
1
1
1
2
2
127
(5.0)
76
(3.0)
76
(3.0)
398
(15.7)
205
(8.1)
600 mm (23.6 in.) Deep Drive with Cabinet Options
Bay and Wiring Bay
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
