166 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 4 Power Wiring

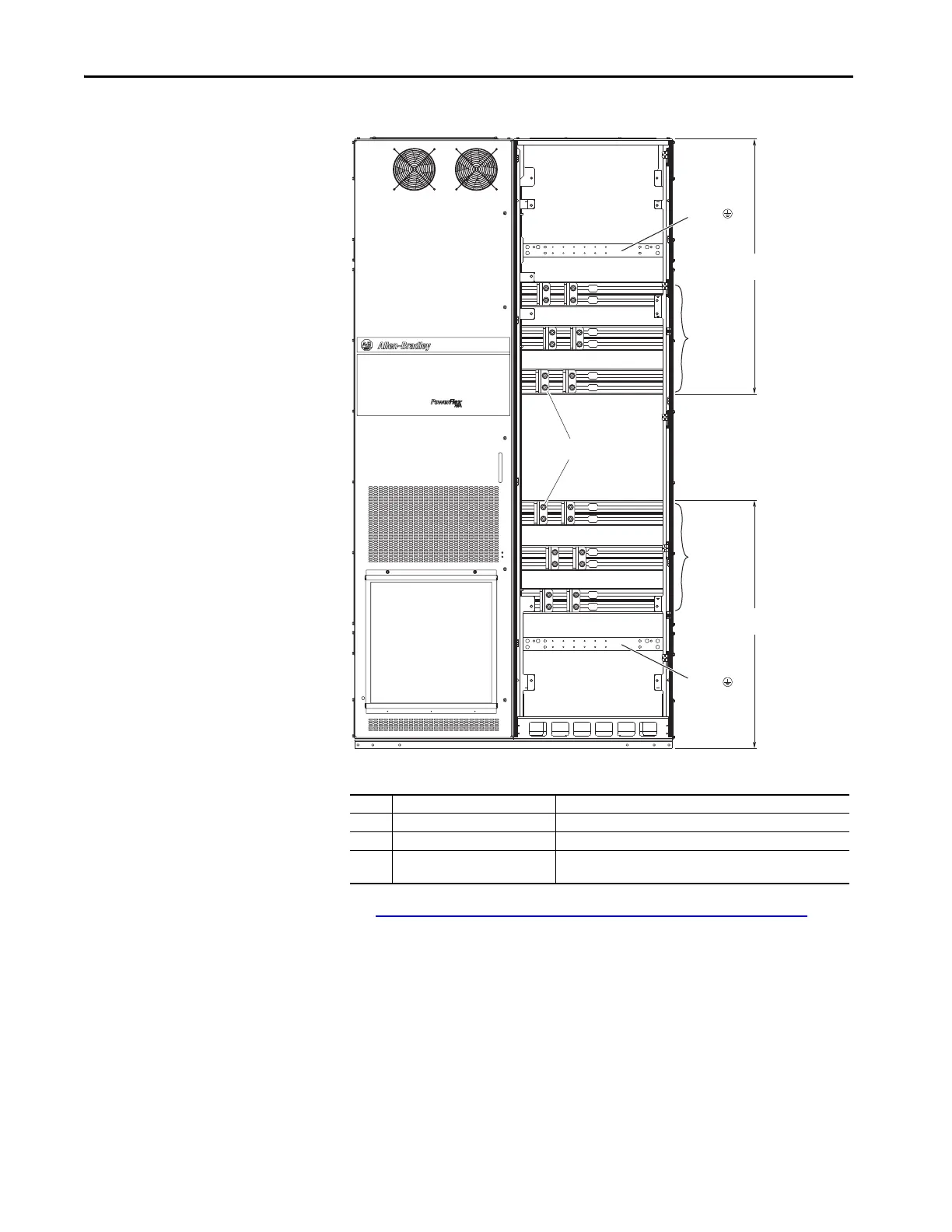

Figure 100 - Bus Bar Locations, Floor Mount Frame 8 Option P14 Wiring Bay
Table 17 - Floor Mount Frame 8 Wiring Bay
See Floor Mount Frames 8…10 Power Terminal L-brackets on page 170 for
information on how to make cable connections on extruded bus bars.
No. Name Description
1 Power bus R/L1, S/L2, T/L3
2 Power bus U/T1, V/T2, W/T3
3 PE grounding bar Terminating point to chassis ground for incoming AC line and motor
shield.
R / L1
S / L2
T / L3
U / T1
V / T2
W / T3
PE
PE
964
(38.0)
936
(36.9)
1
2
3
3
L-brackets (2 per phase)
