210 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 4 Power Wiring

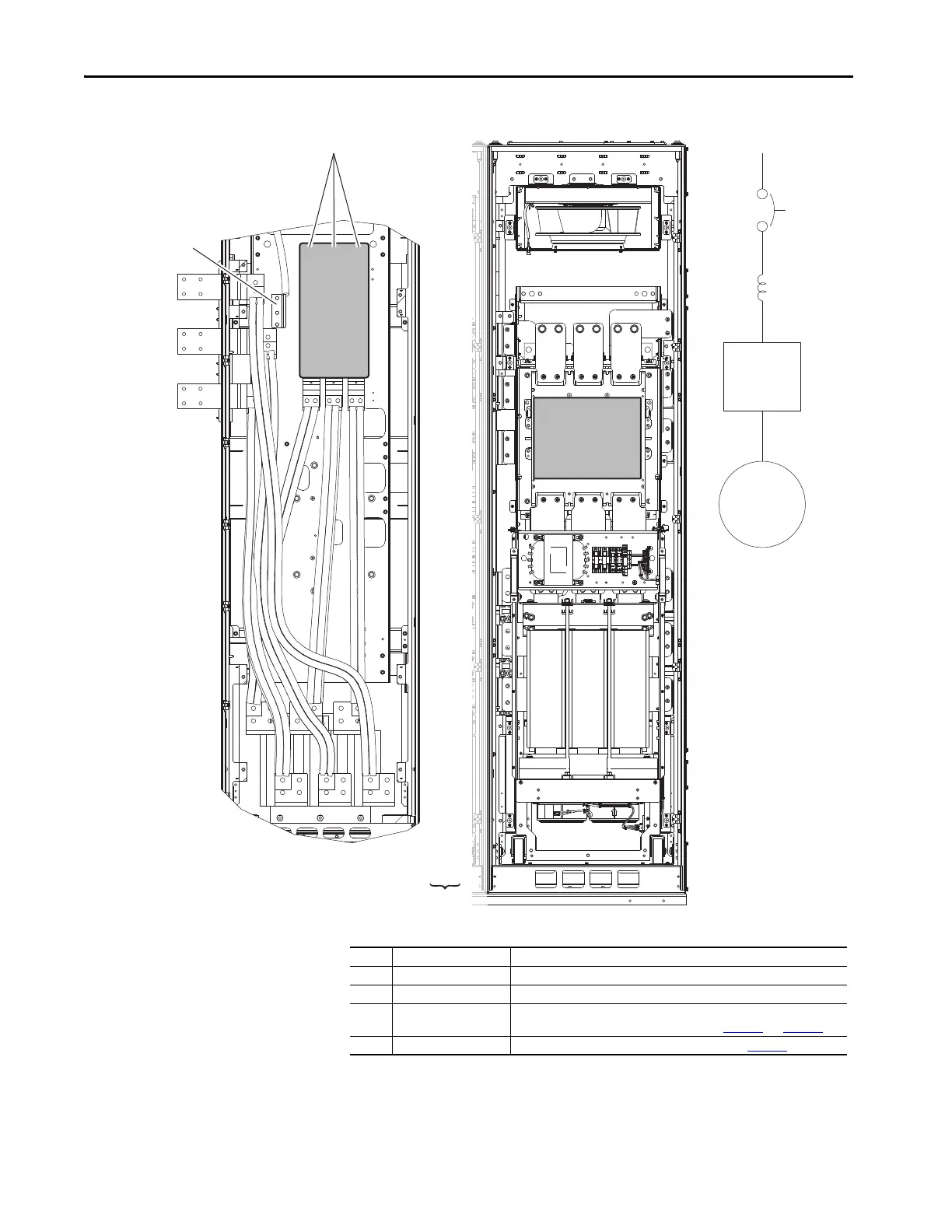

Figure 115 - Option P3 or P5 Disconnect and Option L1 or L3 Input Reactor
U / T1
V / T2
W / T3
1
2
4
3
Drive
Motor
P3 or P5
L1 or L3
Floor Mount Frame 8 Floor Mount Frame 9
No. Name Description
1 R/L1, S/L2, T/L3 Three-phase input power connection.
2 PE Three-phase input ground.
3 R/L1, S/L2, T/L3 Three-phase input power for frame 9 drives lands on the horizontal bus bars
behind the cabinet options rollout assembly. See page 172
and page 173.
4 U/T1, V/T2, W/T3 Motor connection that is made at drive power bus. See page 164
.
