Rockwell Automation Publication 750-IN001P-EN-P - April 2017 211
Power Wiring Chapter 4

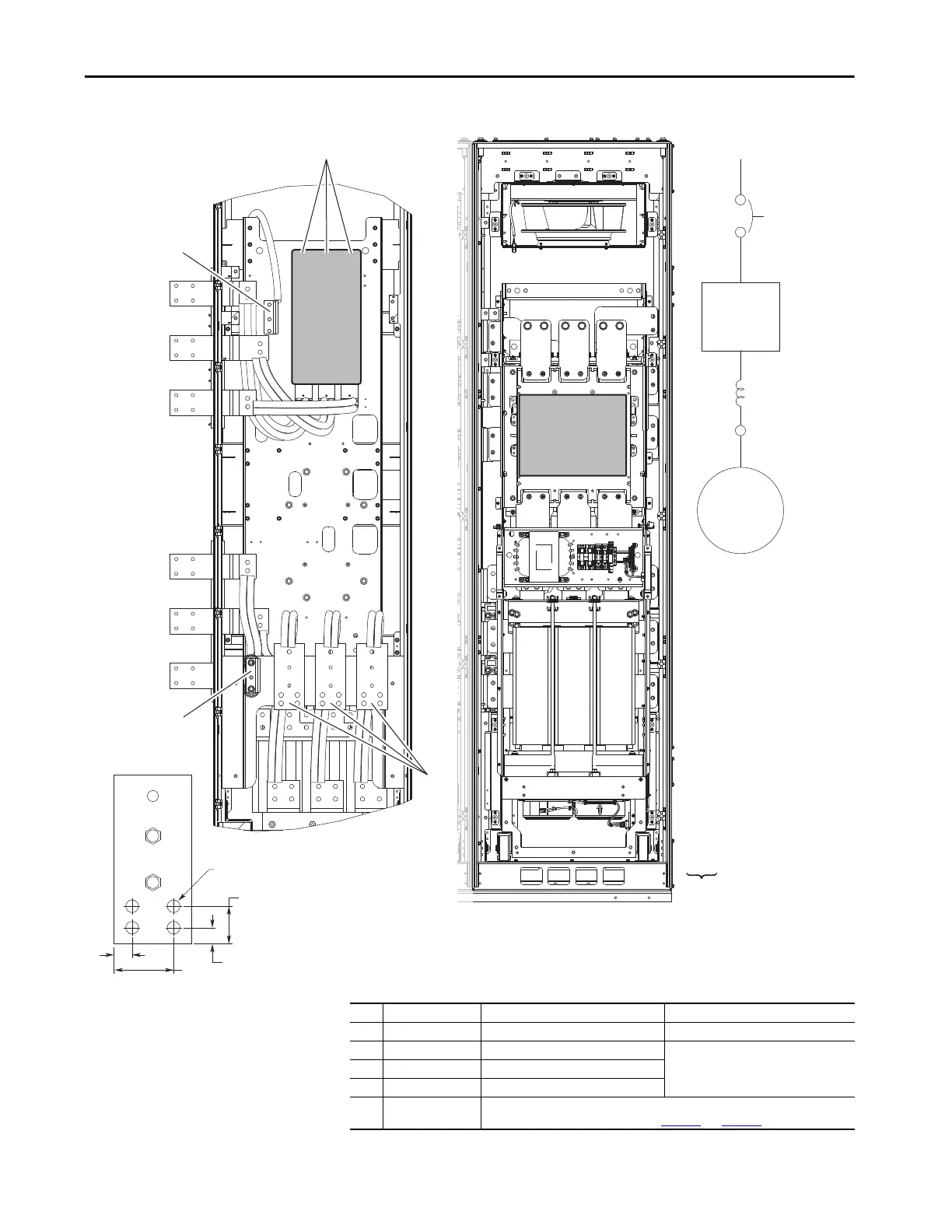

Figure 116 - Option P3 or P5 Disconnect and Option L2 or L4 Output Reactor
ø15 (0.6)
4 Places
44.5
(1.75)
19.1
(0.75)
70.5
(2.80)
21.5
0.85)
U / T1
V / T2
W / T3
1
3
4
4
2
5
Drive
Motor
P3 or P5
L2 or L4
Output Terminal
Floor Mount Frame 8 Floor Mount Frame 9
No. Name Description Recommended Torque, N•m (lb•in)
1 R/L1, S/L2, T/L3 Three-phase input power connection. Factory installed
2 PE Three-phase input ground.
38.0 (336)3 PE Three-phase motor ground.
4 U/T1, V/T2, W/T3 Motor connection.
5 R/L1, S/L2, T/L3 Three-phase input power for frame 9 drives lands on the horizontal bus bars behind
the cabinet options rollout assembly. See page 172
and page 173.
