212 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 4 Power Wiring

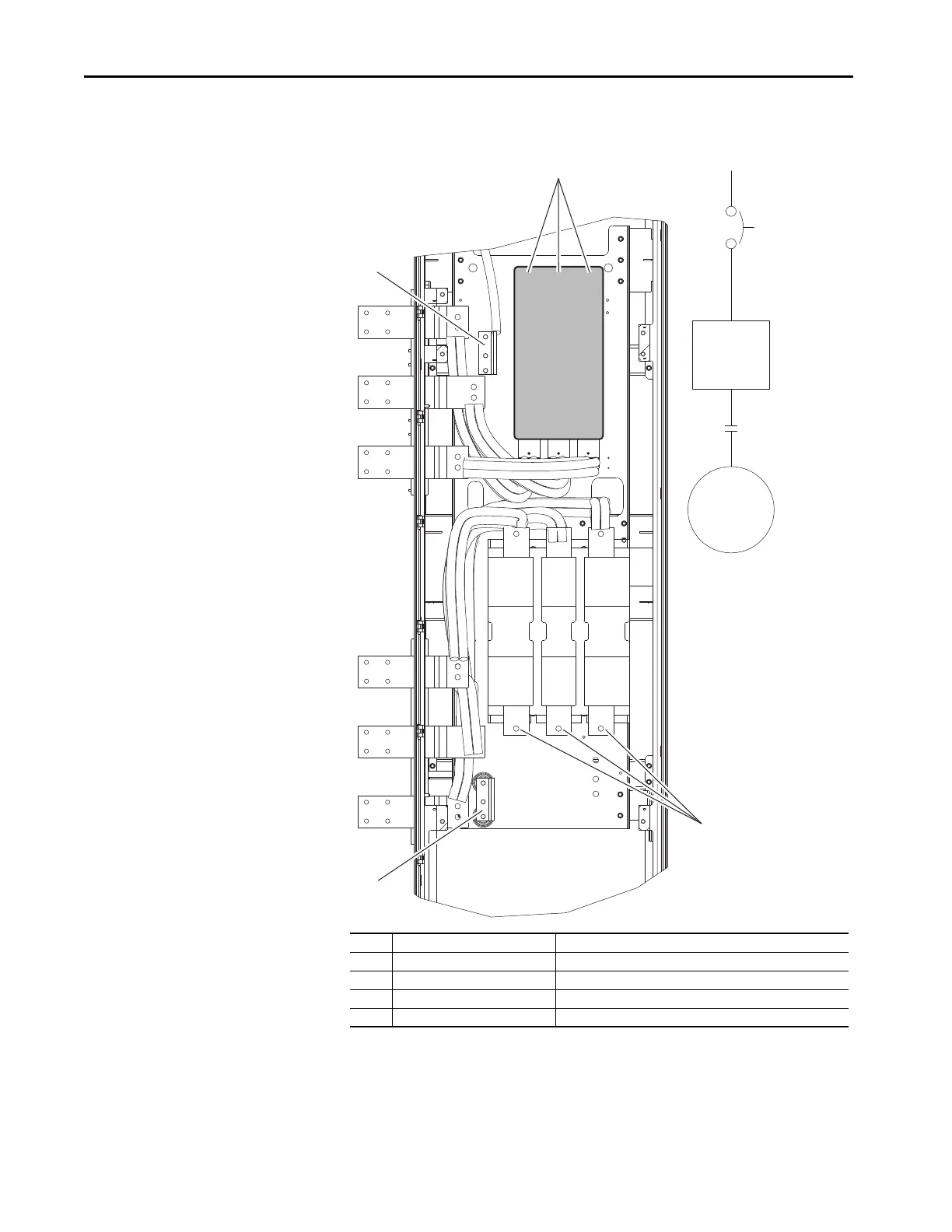

Figure 117 - Option P3 or P5 Disconnect and Option P12 Output Contactor
(only floor mount Frame 8)
No. Name Description
1 R/L1, S/L2, T/L3 Three-phase input power connection.
2 PE Three-phase input ground.
3 PE Three-phase motor ground.
4 U/T1, V/T2, W/T3 Motor connection.
4
3
1
2
