30 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 2 Prepare for Installation

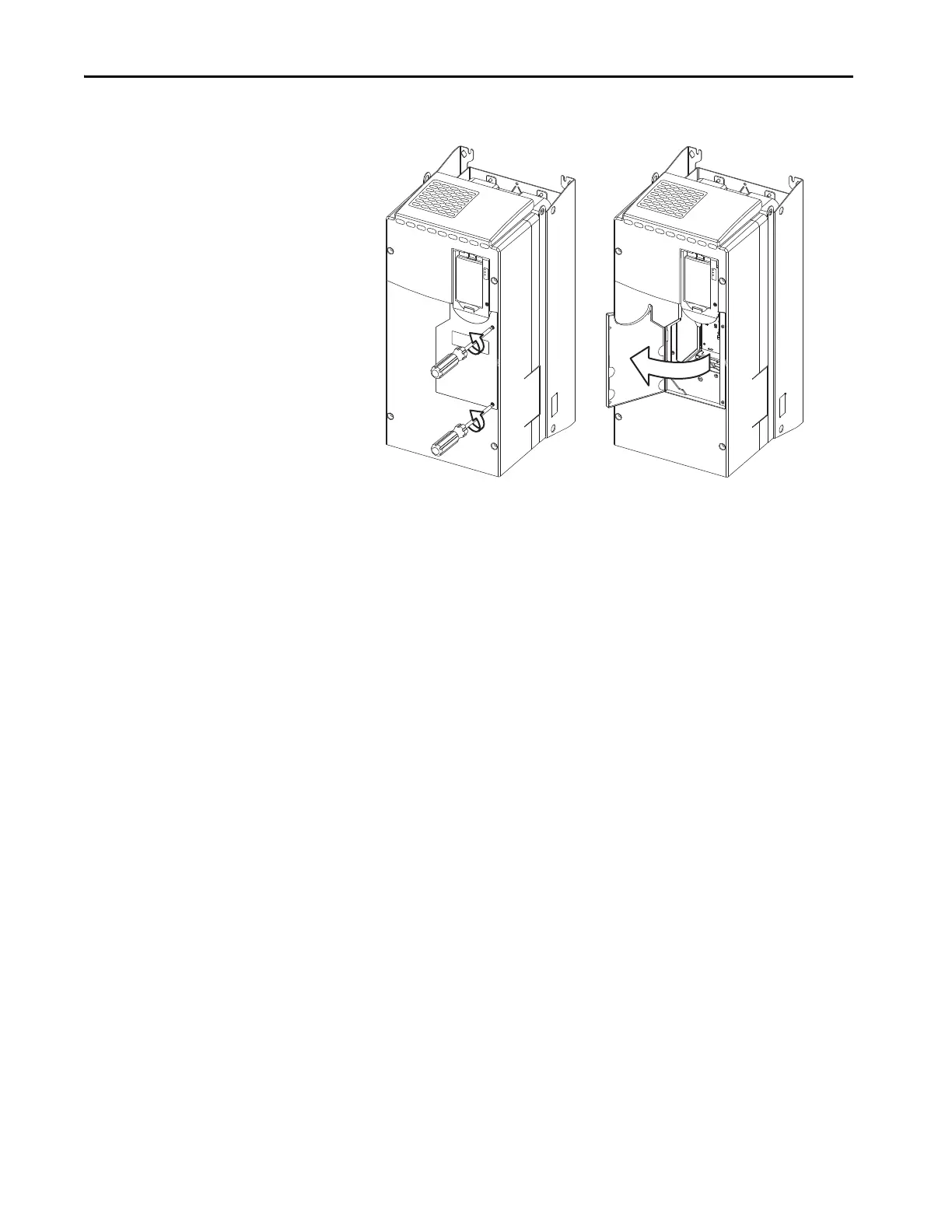

Figure 5 - Enclosure Code N (IP00, NEMA/UL Open Type) Wall Mount, Frames 6 and 7 Access Door
To open or secure the access door, use this tool:
• Recommended screwdriver = 6.4 mm (0.25 in.) flat or T20 Hexalobular
