34 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 2 Prepare for Installation

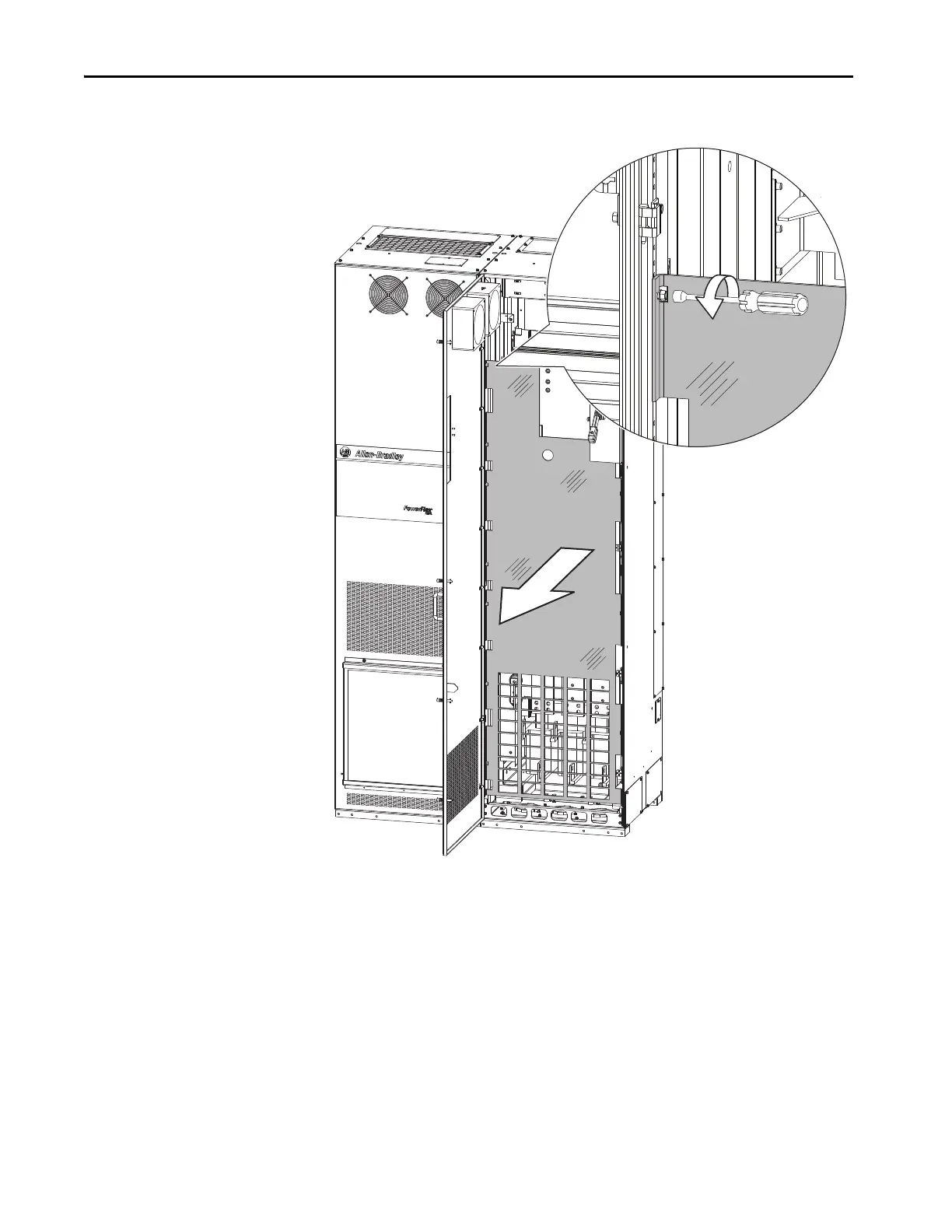

Figure 9 - Full Cabinet Options Bay Guard – Floor Mount Frame 8
To remove the full bay guard, loosen the ten M5 screws. You do not need to
remove these screws.
To remove or replace the full bay guard, use this tool and torque:
• Recommended torque = 2.8 N•m (25.0 lb•in)
• Recommended driver = 8 mm Hexagonal socket
