Rockwell Automation Publ
ication 750-IN001P-EN-P -
April 2017
35
Prepa
re for Insta
llation
Chapt
er 2

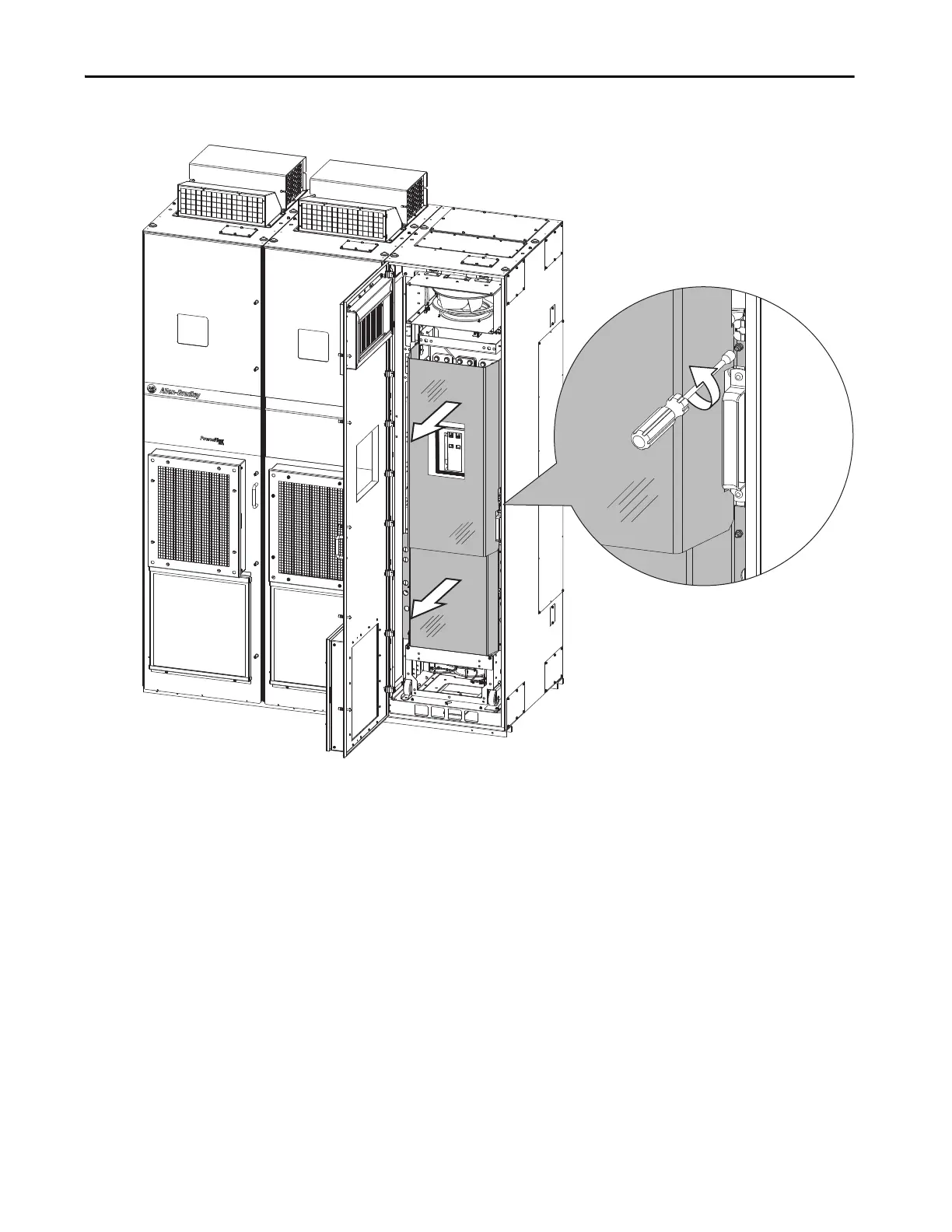

Figure
10 -
Full Ca
bine
t Op
tions
Bay Gua
rd Floo
r Mou
nt Fra
me 9
T
o remove the full bay g
uard, loosen the ten M5 sc
rews. Y
ou do not ne
ed to
remov
e these scr
ews.
T
o re
move
or re
place t
he full bay guar
d, use t
his tool a
nd tor
que
:
•
Re
comme
nded torque = 2.8 N•m (25.0 lb•in)
•
R
eco
mm
en
ded
dr
iv
er
= 8 m
m H
ex
ago
n
al so
ck
et
34
