Allen-Bradley 20F Installation Instructions

Rockwell Automation Publication 750-IN001P-EN-P - April 2017 61
Lift and Mount the Drive Chapter 3

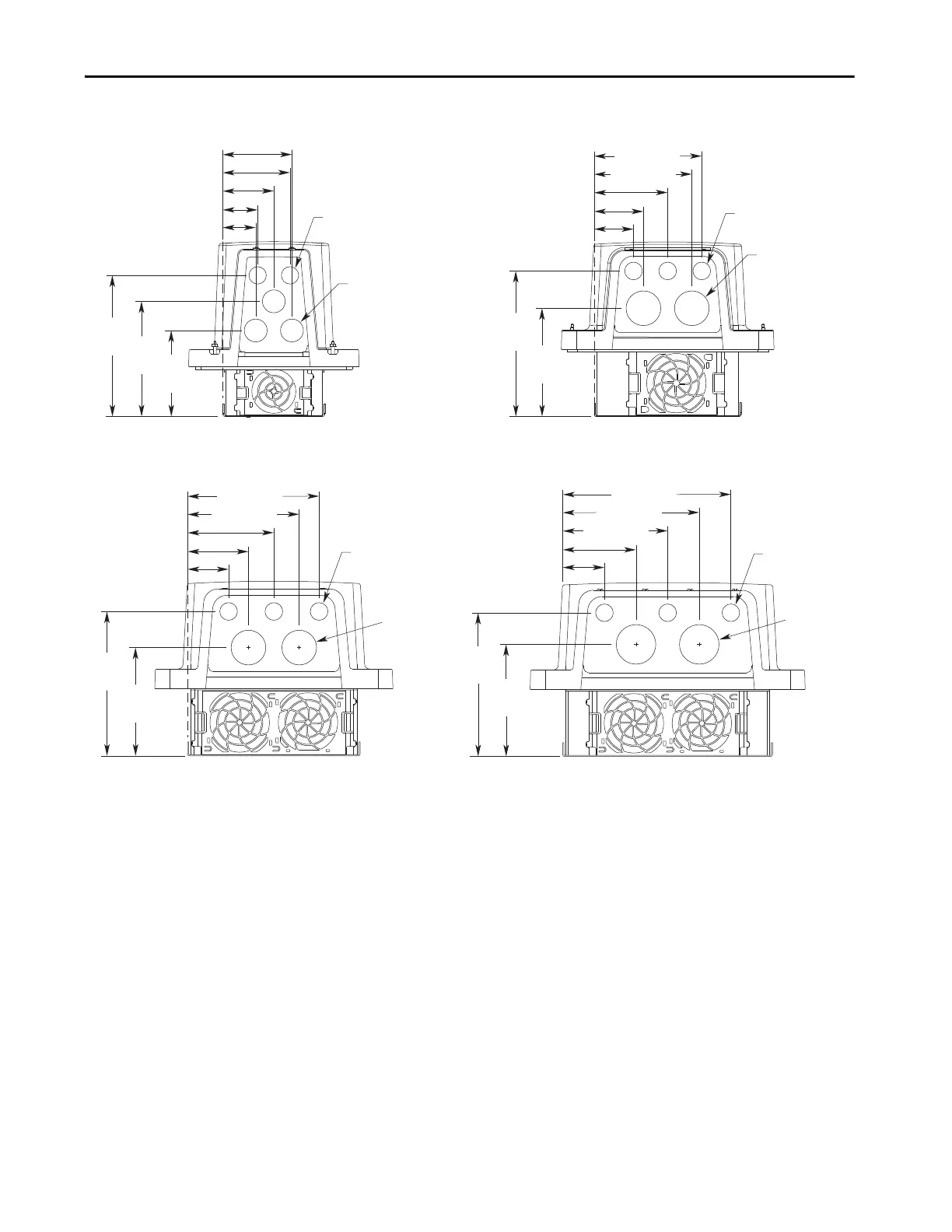

Figure 26 - IP54, NEMA/UL Type 12, Wall Mount Frames 2…5, Bottom Access
Dimensions are in millimeters and (inches).
179.4
(7.06)
146.4
(5.76)
109.4
(4.31)
88.1 (3.47)
85.7 (3.37)
65.1 (2.56)
44.5 (1.75)
42.1 (1.66)
136.5
(5.37)
183.5
(7.22)
49.8 (1.96)
62.3 (2.45)
92.8 (3.65)
123.3 (4.85)
135.8 (5.35)
136.5
(5.37)
182.0
(7.17)
51.8 (2.04)
76.8 (3.02)
108.8 (4.28)
140.8 (5.54)
165.8 (6.53)
141.9
(5.59)
181.9
(7.16)
52.8 (2.08)
92.8 (3.65)
132.8 (5.23)
172.8 (6.80)
212.8 (8.38)
2x: Ø22.0
(Ø0.87)
2x: Ø43.7
(Ø1.72)
2x: Ø50.0
(Ø1.97)
2x: Ø43.7
(Ø1.72)
3x: Ø29.0
(Ø1.14)
3x: Ø22.2
(Ø0.87)
3x: Ø22.2
(Ø0.87)
3x: Ø22.2
(Ø0.87)
Wall Mount Frame 2
Wall Mount Frame 3
Wall Mount Frame 4
Wall Mount Frame 5
