62 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

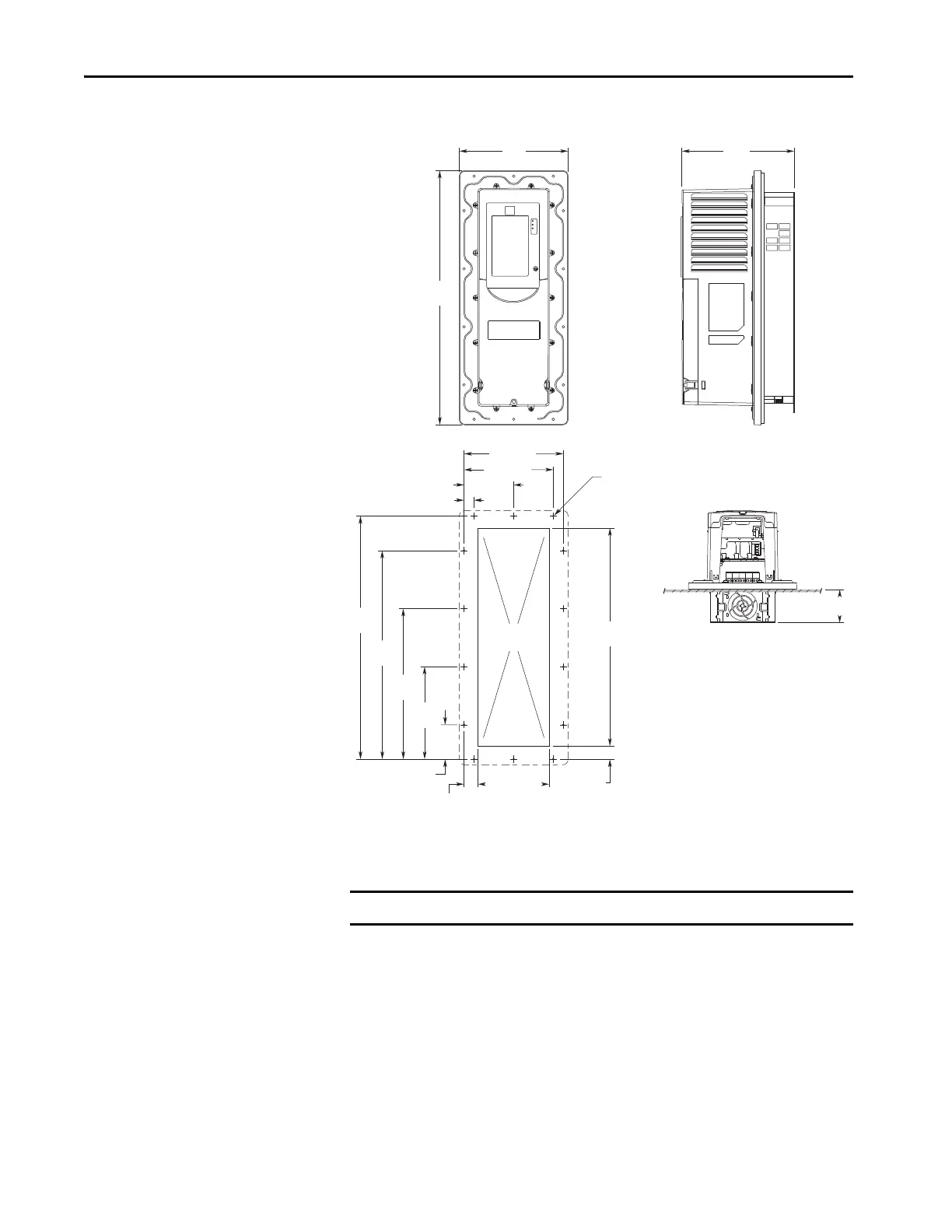

Figure 27 - Flange Mount, Frame 2
Dimensions are in millimeters and (inches).
IMPORTANT Must use mounting hardware that is supplied to meet enclosure rating.
206.2
(8.12)
212.0
(8.35)
481.8
(18.97)
63.7
(2.51)
175.3
(6.90)
65.3
(2.57)
285.3
(11.23)
395.3
(15.56)
460.6
(18.13)
19.2 (0.76)
94.2 (3.71)
169.2 (6.66)
188.3 (7.41)
14x: Ø3.50
(Ø0.138)
128.00 +1.80/-0.00
(5.0 +0.1/-0.0)
399.60 +1.80/-0.00
(15.7 +0.1/-0.0)
30.5
(1.20)
30.2
(1.19)
