Allen-Bradley 20F Installation Instructions

64 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

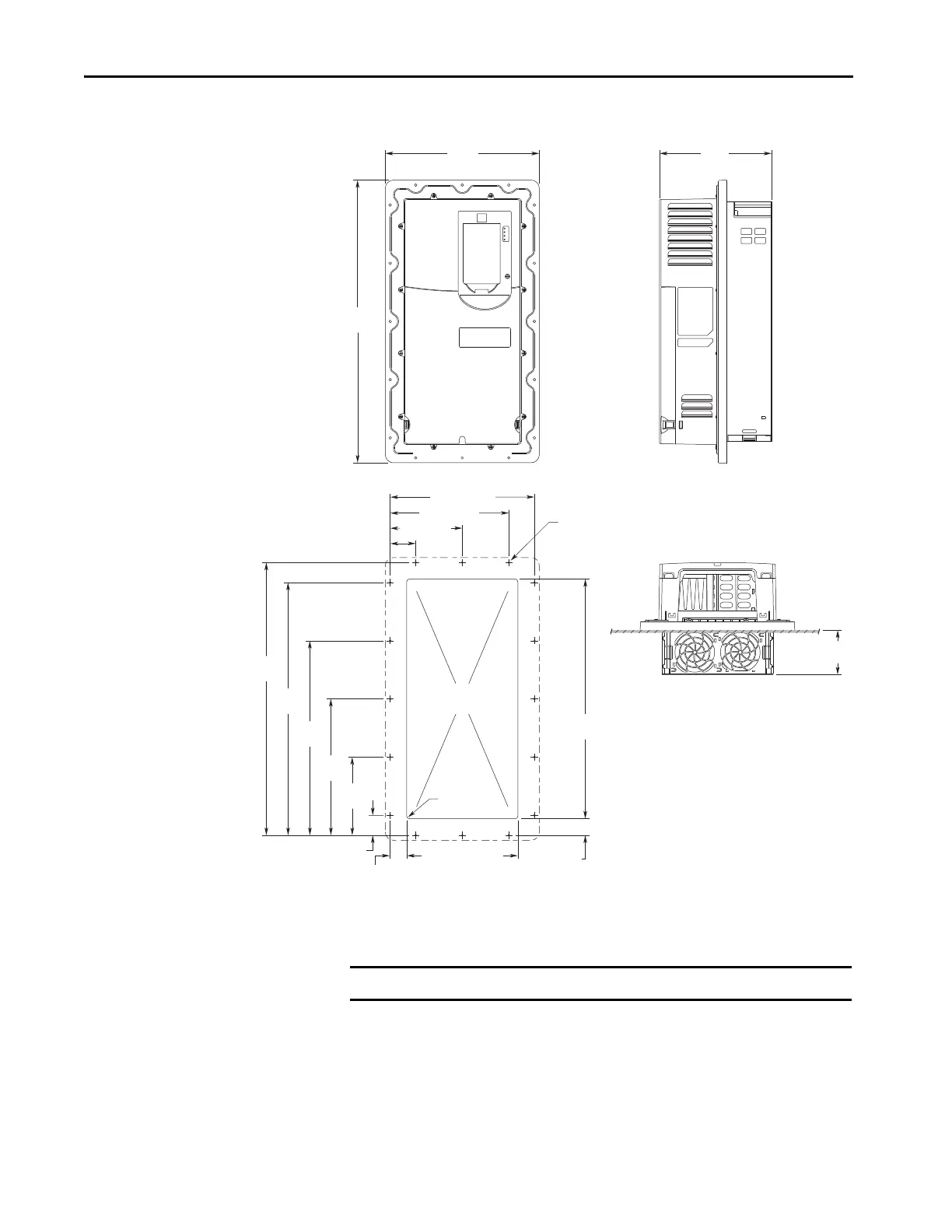

Figure 29 - Flange Mount, Frame 4
Dimensions are in millimeters and (inches).
211.9
(8.34)
292.0
(11.50)
84.5
(3.33)
535.0
(21.06)
211.00 +1.80/-0.00
(8.307 +0.070/-0.000)
30.75
(1.211)
454.00 +1.80/-0.00
(17.874 +0.070/-0.000)
147.75
(5.817)
37.75
(1.486)
30.75
(1.211)
257.75
(10.148)
367.75
(14.478)
477.75
(18.809)
515.50
(20.295)
48.25 (1.900)
136.25 (5.364)
224.25 (8.829)
272.50 (10.728)
16x: Ø3.50
(Ø0.138)
4x: 5.00R
(0.197R)
IMPORTANT Must use mounting hardware that is supplied to meet enclosure rating.
