74 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

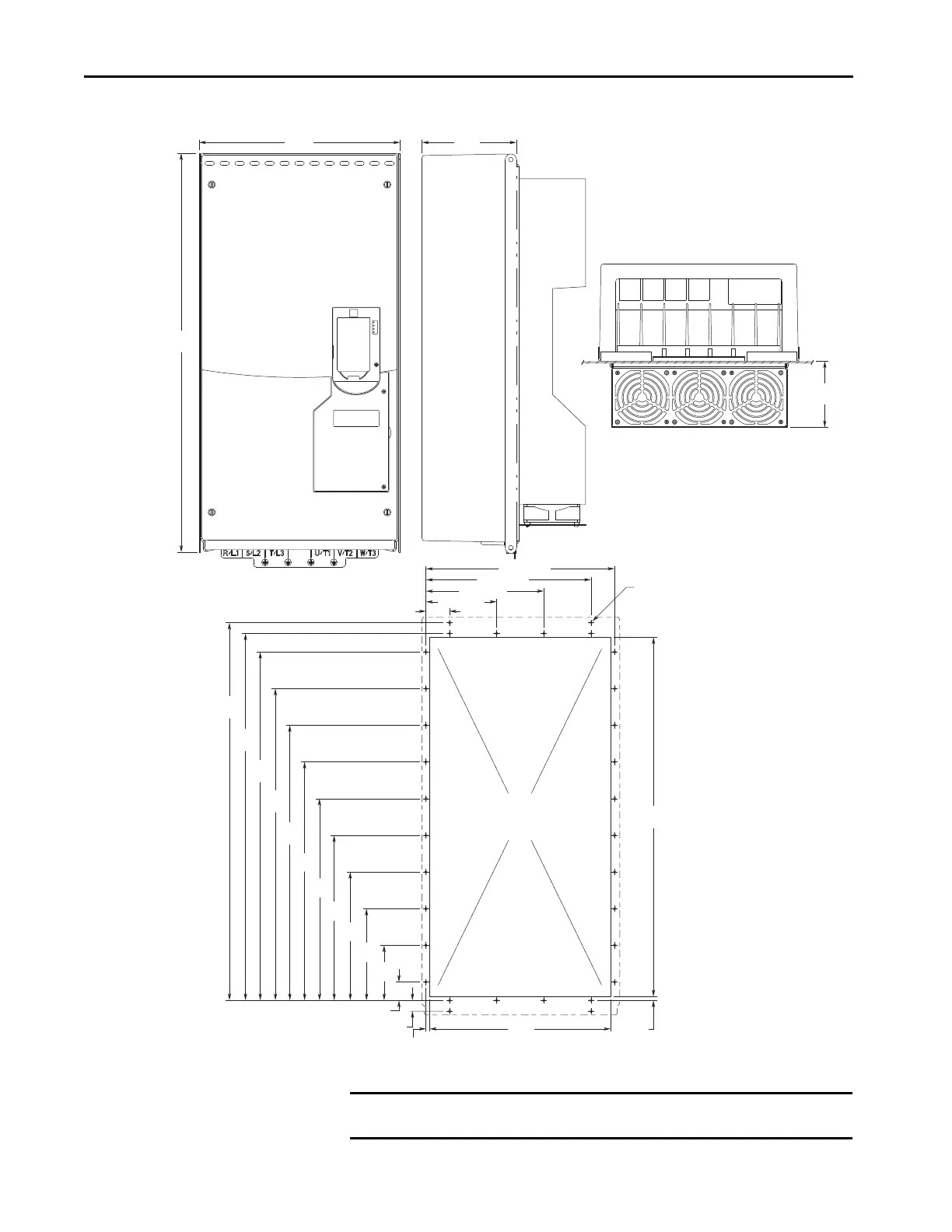

Figure 39 - Flange Mount, Frame 7
Dimensions are in millimeters and (inches).
875.0
(34.45)
430.0
(16.93)
208.4
(8.20)
138.0
(5.43)
509.6
(20.06)
28.0
(1.10)
431.2
(16.98)
352.8
(13.89)
274.4
(10.80)
196.0
(7.72)
117.6
(4.63)
588.0
(23.15)
666.4
(26.24)
744.8
(29.32)
784.0
(30.87)
812.0
(31.97)
39.2
(1.54)
768.0
(30.24)
50.38 (1.98)
151.13 (5.95)
251.88 (9.92)
352.63 (13.88)
403.00 (15.87)
32x: Ø7.0
(Ø0.28)
387.0
(15.24)
8.0
(0.31)
8.0
(0.31)
IMPORTANT Must use flange adapter kit (catalog number 20-750-FLNG4-F7) to meet
enclosure rating.
