Rockwell Automation Publication 750-IN001P-EN-P - April 2017 75
Lift and Mount the Drive Chapter 3

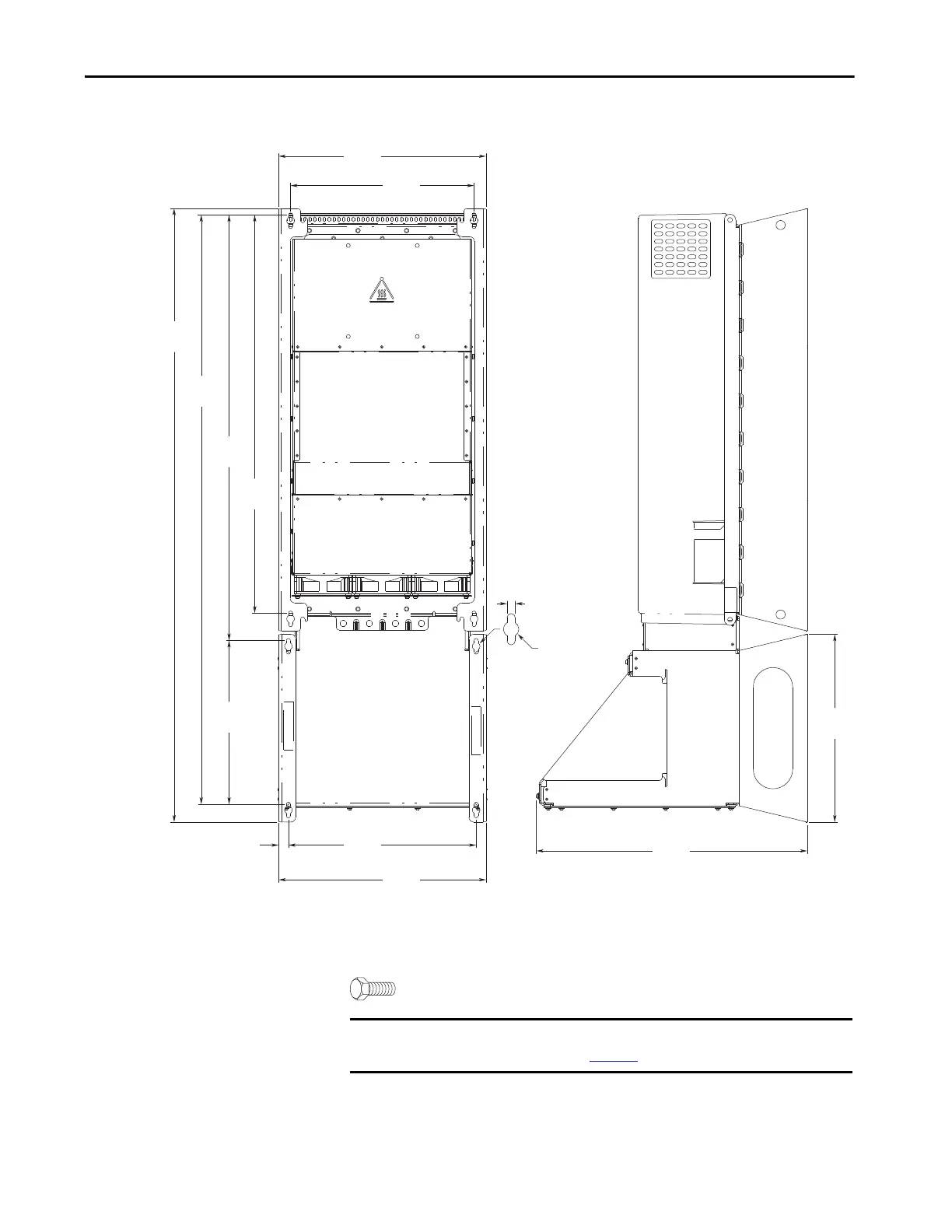

Figure 40 - NEMA/UL Type 1, Wall Mount Frame 7
Dimensions are in millimeters and (inches).
M8 (5/16 in.) mounting hardware recommended.
430.0
(16.93)
1271.0
(50.04)
1221.0
(48.07)
881.8
(34.72)
825.0
(32.48)
380.0
(14.96)
389.0
(15.31)
20.5
(0.81)
561.0
(22.08)
389.2
(15.32)
8.5 (0.33)
ø16.0 (0.63)
430.0
(16.93)
339.2
(13.35)
IMPORTANT NEMA Type 1 kit (catalog number 20-750-NEMA1-F7) does change the
mounting dimensions in Figure 34
.
