Allen-Bradley 20F Installation Instructions

Rockwell Automation Publication 750-IN001P-EN-P - April 2017 77
Lift and Mount the Drive Chapter 3

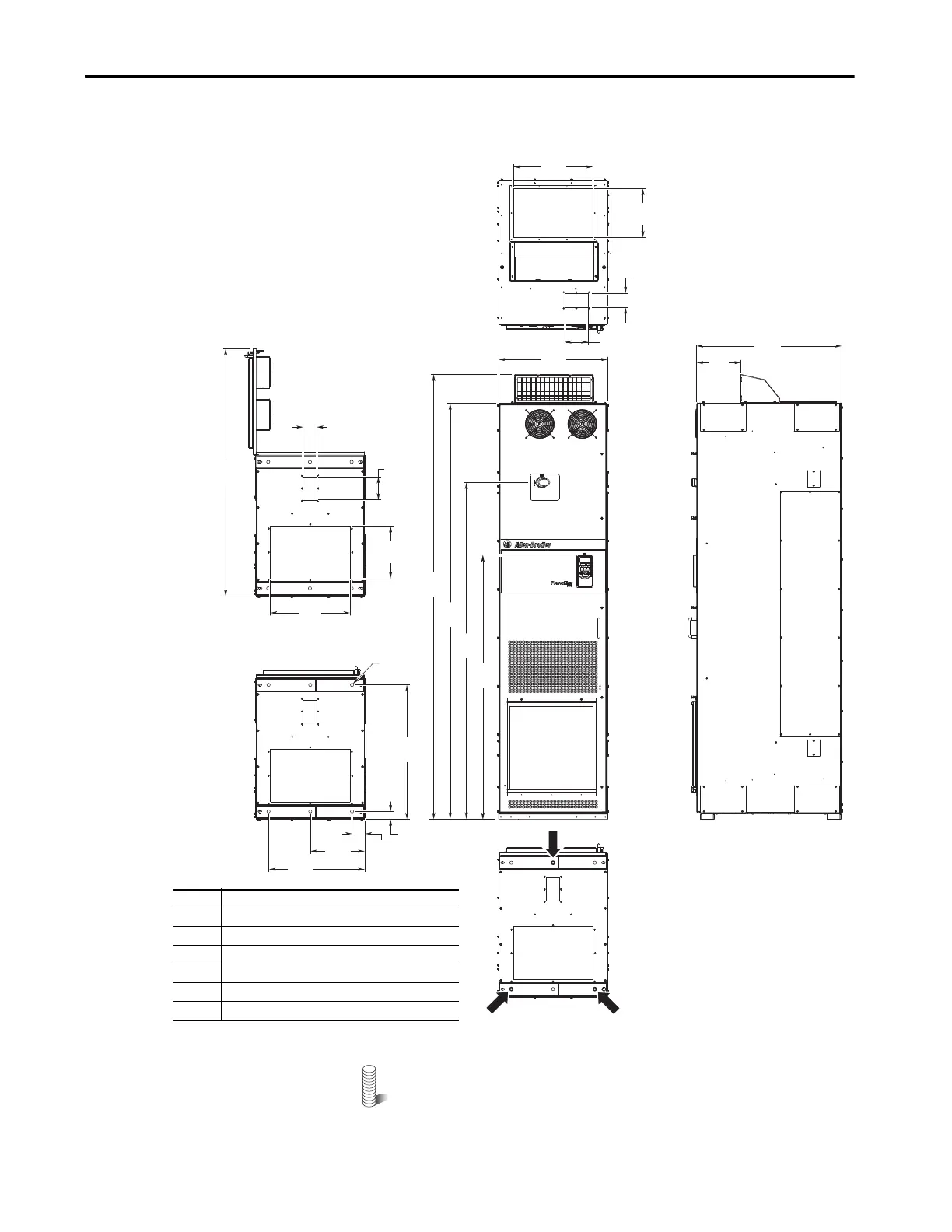

Figure 42 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
(Enclosure Codes L, P, W)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
2453
(96.6)
600
(23.6)
800
(31.5)
2300
(90.6)
1862
(73.3)
240
(9.4)
1374
(54.1)
292
(11.5)
127
(5.0)
76
(3.0)
300
(11.8)
531
(20.9)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
69
(2.7)
76
(3.0)
1464
(57.6)
127
(5.0)
440
(17.3)
440
(17.3)
270
(10.6)
1
1
2
2
3
4
5
6
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4 Disconnect switch (SW2). Common DC input drives.
5 Optional HIM.
6 Recommended three-hole anchoring.
Bottom
Bottom
Top
