84 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

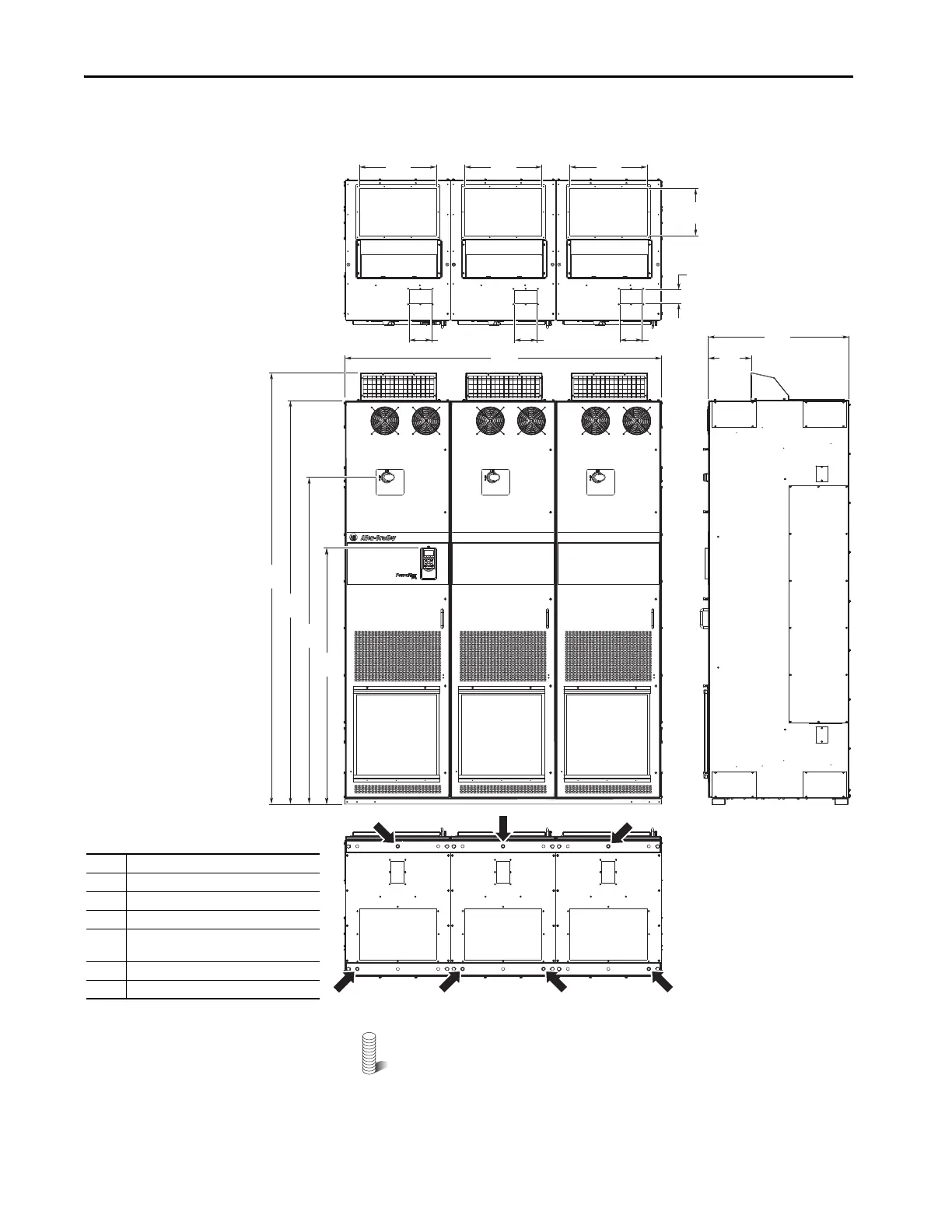

Figure 49 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 10
(Enclosure Codes L, P, W)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
1800
(70.9)
800
(31.5)
240
(9.4)
440
(17.3)
440
(17.3)
440
(17.3)
270
(10.6)
2453
(96.6)
2300
(90.6)
1862
(73.3)
1464
(57.6)
127
(5.0)
76
(3.0)
1
22
2
3
4
4
4
5
6
3
1
1
127
(5.0)
127
(5.0)
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4 Disconnect switches (SW2). Common DC
input drives.
5 Optional HIM.
6 Recommended seven-hole anchoring.
Bottom
Top
