92 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

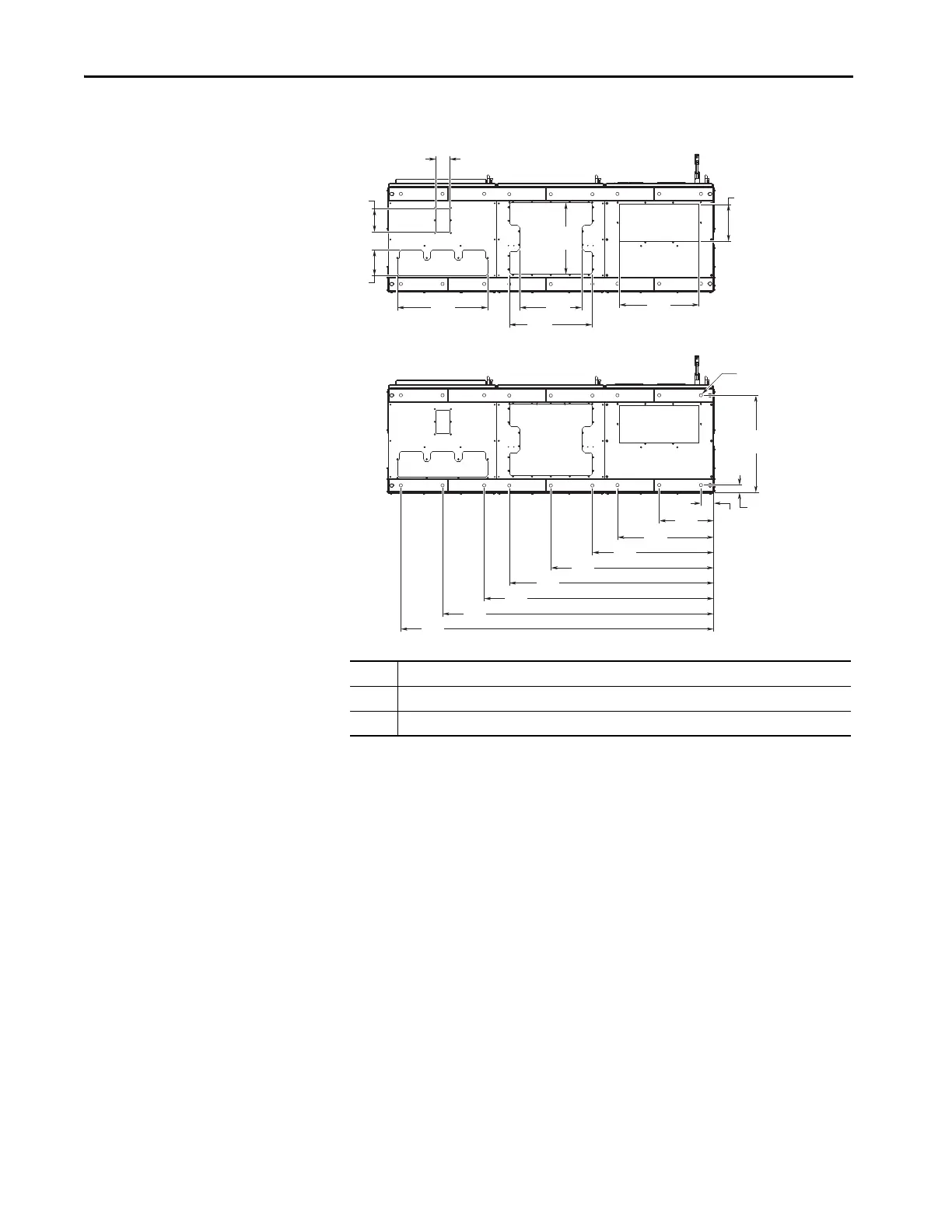

Figure 56 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8 Bottom Access
(Enclosure Code B)
440
(17.3)
205
(8.1)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
69
(2.7)
1269
(50.0)
1500
(59.1)
1731
(68.1)
500
(19.7)
460
(18.1)
398
(15.7)
141
(5.6)
127
(5.0)
344
(13.5)
76
(3.0)
1
1
1
2
ø18.0
(0.71)
542
(21.3)
43
(1.7)
600 mm (23.6 in.) Deep Drive with Wiring
Bay and Cabinet Options Bay
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
