Rockwell Automation Publication 750-IN001P-EN-P - April 2017 91
Lift and Mount the Drive Chapter 3

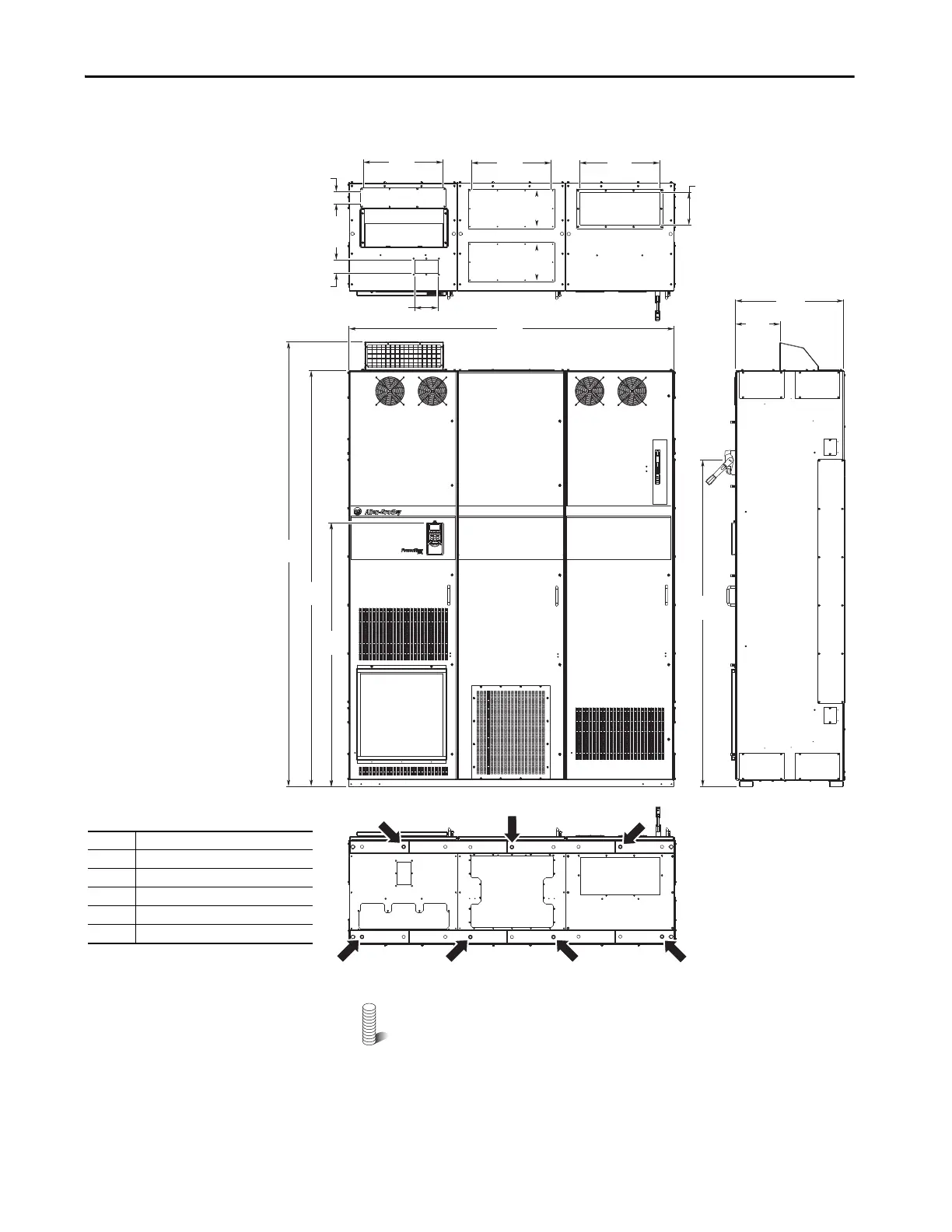

Figure 55 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
(Enclosure Code B)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
2453
(96.6)
2300
(90.6)
1800
(70.9)
440
(17.3)
440
(17.3)
127
(5.0)
76
(3.0)
1
1
1
1
3
4
5
2
68
(2.7)
183
(7.2)
183
(7.2)
1464
(57.6)
600
(23.6)
240
(9.4)
1808
(71.2)
180
(7.1)
440
(17.3)
No. Description
1Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4Optional HIM.
5 Recommended seven-hole anchoring.
Bottom
Top
600 mm (23.6 in.) Deep Drive with Wiring
Bay and Cabinet Options Bay
