Chapter 3 Lift and Mount the Drive

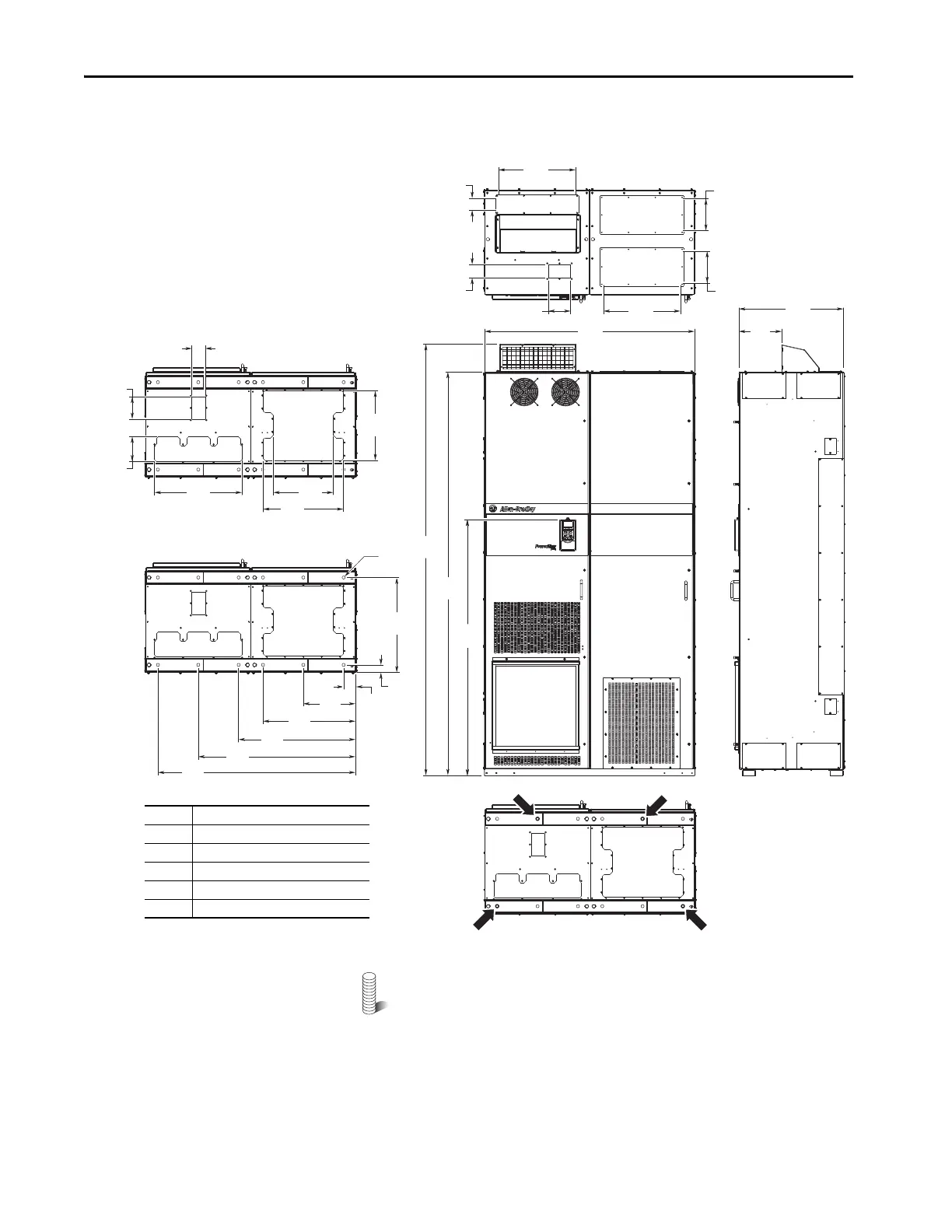

Figure 54 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
(Enclosure Code B with P14)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
2453
(96.6)
2300
(90.6)
600
(23.6)
240
(9.4)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
ø18.0
(0.71)
542
(21.3)
43
(1.7)
69
(2.7)
500
(19.7)
460
(18.1)
398
(15.7)
141
(5.6)
127
(5.0)
344
(13.5)
76
(3.0)
1200
(47.2)
440
(17.3)
440
(17.3)
127
(5.0)
76
(3.0)
1
1
1
1
1
2
2
3
4
5
68
(2.7)
183
(7.2)
183
(7.2)
1464
(57.6)
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4 Optional HIM.
5 Recommended four-hole anchoring.
Bottom
To p
Bottom
600 mm (23.6 in.) Deep Drive with Wiring Bay
