Rockwell Automation Publication 750-IN001P-EN-P - April 2017 99
Lift and Mount the Drive Chapter 3

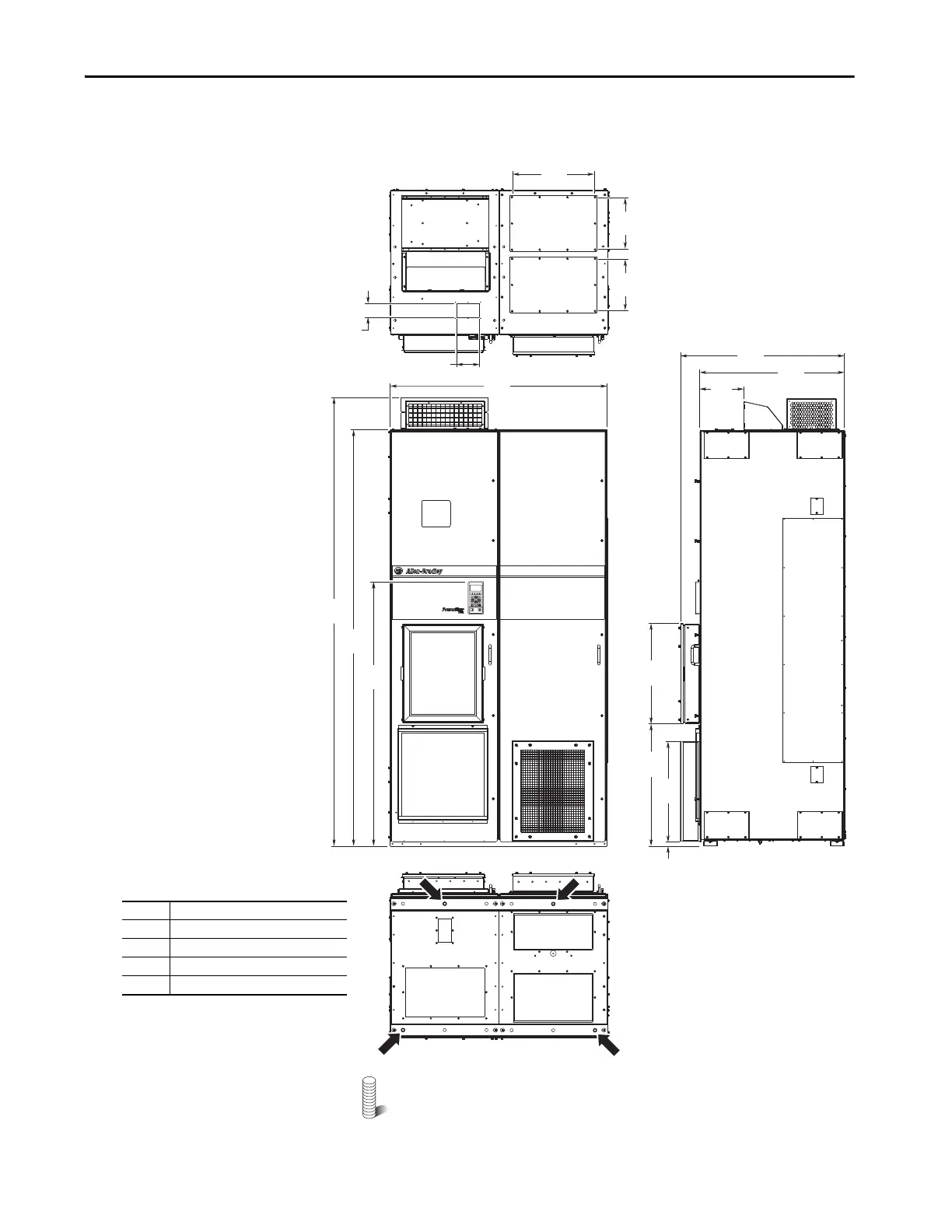

Figure 63 - IP54, NEMA 12, MCC Style Cabinet, Floor Mount Frame 8 (Enclosure Codes K and Y)
IP54, UL Type 12, MCC Style Cabinet, Floor Mount Frame 8 (Enclosure Code J) with
P14
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
800
(31.5)
909
(35.8)
244
(9.6)
675
(26.6)
556
(21.9)
24
(1.0)
556
(21.9)
310
(12.2)
310
(12.2)
480
(18.9)
2477
(97.5)
2300
(90.6)
1200
(47.2)
1464
(57.6)
78
(3.1)
1
1
2
3
4
127
(5.0)
No. Description
1Power wiring conduit plates.
2 Control wiring conduit plates.
3Optional HIM.
4 Recommended four-hole anchoring.
Bottom
Top
800 mm (31.5 in.) Deep Drive with Wiring Bay
