Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 125

Develop External Routines Chapter 7

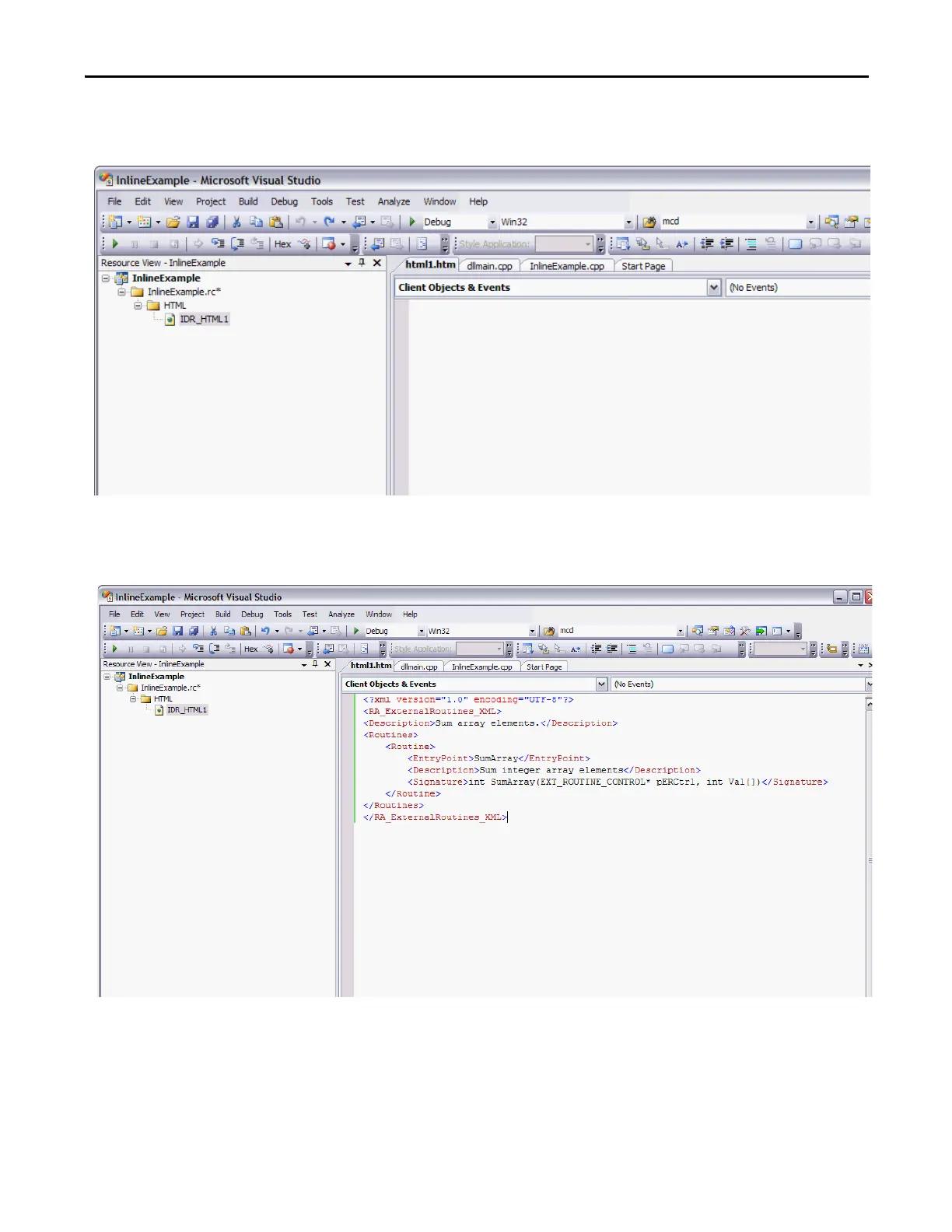

4. Open the new resource. Choose the IDR_HTML1 file from the

HTML folder.

5. Choose the Client Objects & Events.

The HTML code for the project example appears.

6. Edit the HTML file and put in the XML descriptions of the

external routines.
