Appendix B Communicate with Devices on a ControlNet Network
8. Expand the Digital list.
9. Select the output module and click OK.

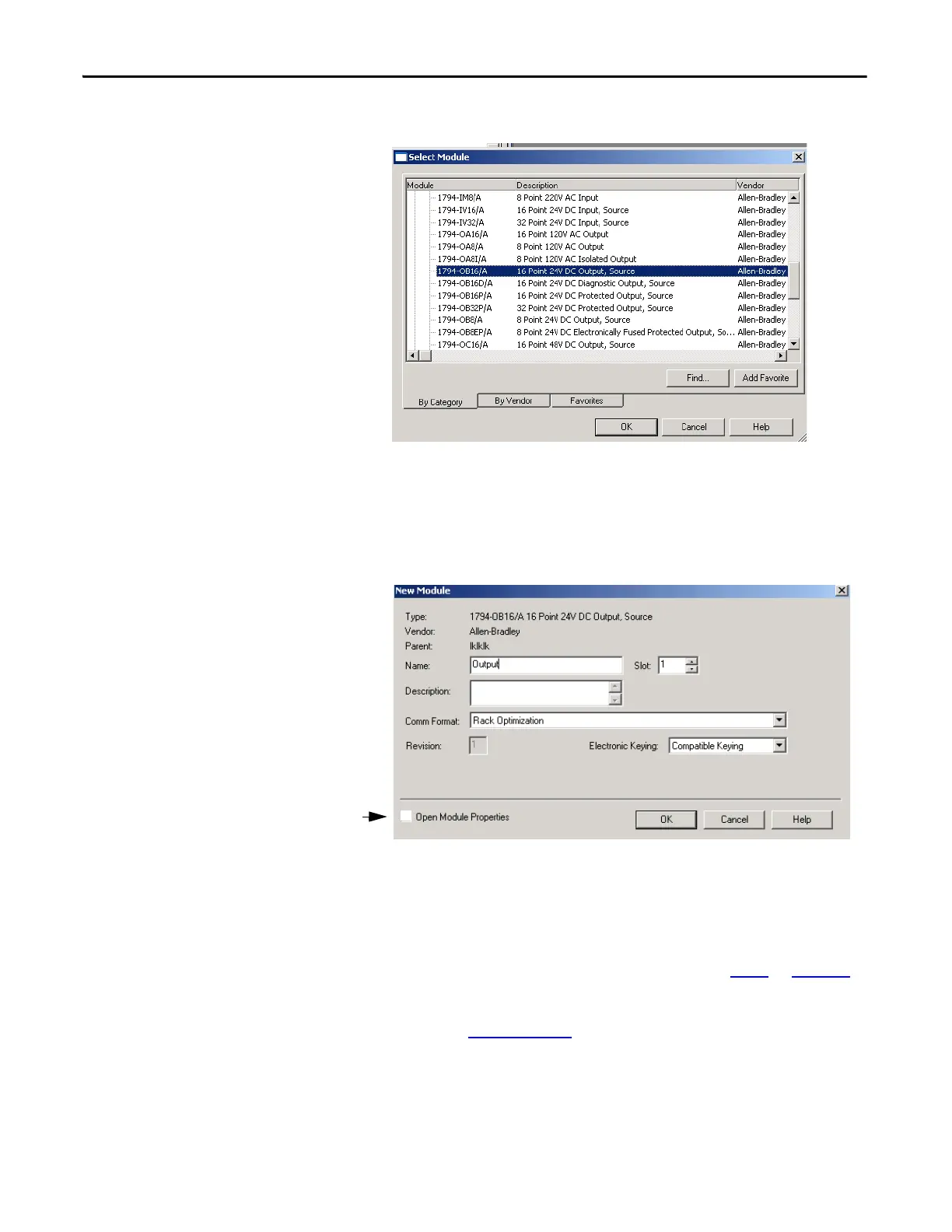

For this example, we chose the 1794-OB16/A 16 Point 24V DC Output,
Source module.
The New Module dialog box appears
10. Enter the module name and slot number. Make sure the Open Module
Properties box is unchecked.
11. Click OK.
Continue to add and configure I/O modules for the remote
communication module by adding them as we did in step 1
on page 204.
See the ControlNet Network Configuration User Manual,
publication CNET-UM001
, for more information.
12. From the File menu, choose Save to save the project.
