Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 209

Communicate with Devices on a ControlNet Network Appendix B

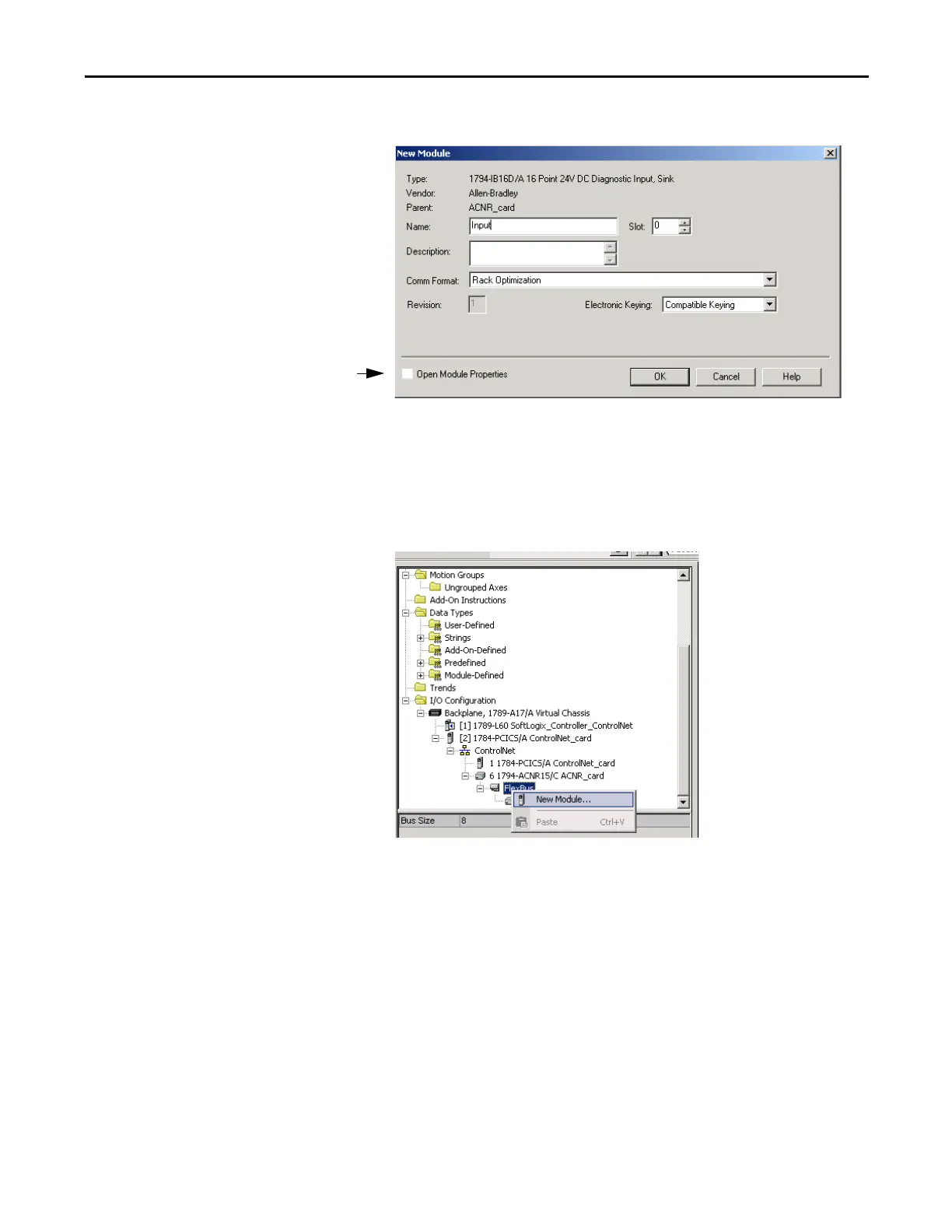

The New Module dialog box appears.

4. Enter the module name and slot number.

5. Make sure the Open Module Properties box is unchecked.

6. Click OK.

7. Add an output I/O module, right-click 1794-ACNR15/C adapter card in

the I/O Configuration folder and choose New Module.

The Select Module dialog box appears.
