208 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix B Communicate with Devices on a ControlNet Network

Add and Configure I/O Modules for the Remote Communication Module

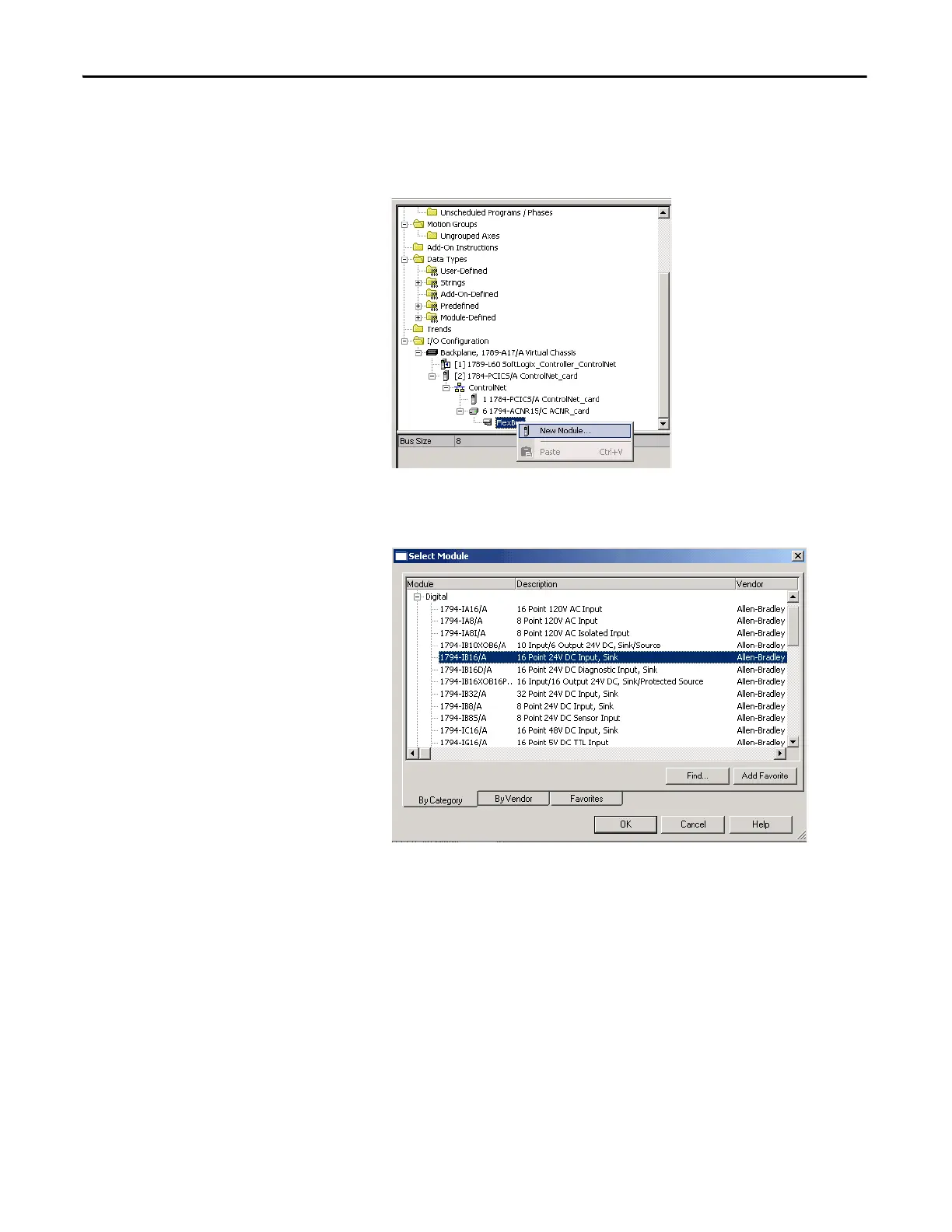

1. Add an input I/O module, right-click 1794-ACNR15/C adapter card in

the I/O Configuration folder and choose New Module.

The Select Module dialog box appears.

2. Expand the Digital list.

3. Select the input module and click OK.

For this example, we chose the 1794-IB16/A 16 Point 24V DC Input,

Sink module.
