9-3
Section 9 Mechanical Configuration

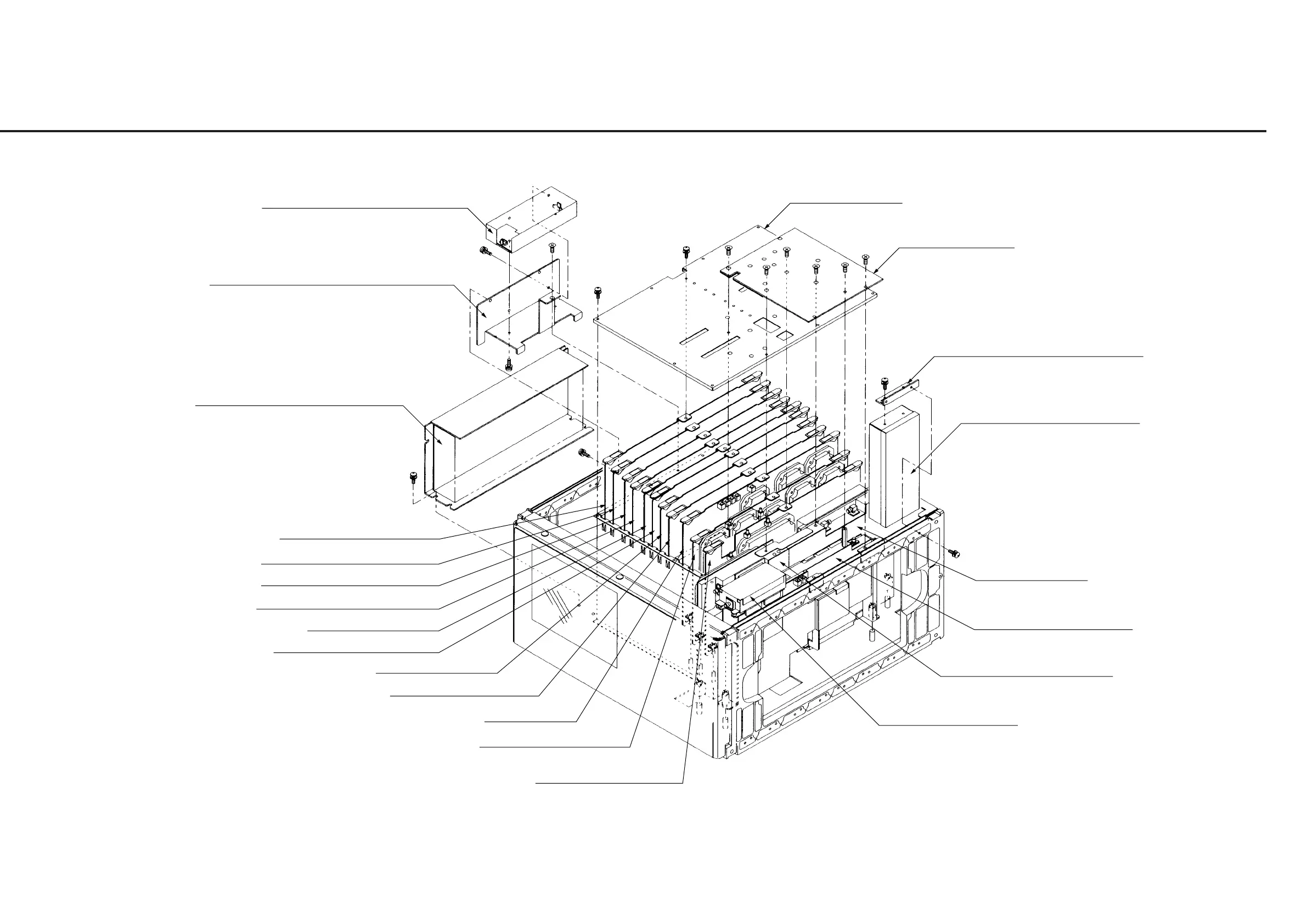

Fig. 9-1 Top Disassembly
[18] HY122R1GN Z4 POWER SUPPLY2
[46] 332B41675 Bracket (for Z4 Power Supply 2)
[45] 33B41481 Cover
[44] 332B41482 Plate
[47] 342B110670 Bracket (for Reference)
[16] 34Y110740 A15 REFERENCE
[15] MM00005A SG1
[13] MM00003A CONVERTER
[14] 34Y113322 SG LOCAL UNIT
[12] MM00009A HPF UNIT
[11] MM00008A DEMOD RF
[10] 322U13232 A11 LOCAL
[9] MM00004A IF
[8] MM00001A DEMOD DSP
[7] 322U13616 A16 AF
[6] 322U13220 A05 MOD DSP1
[5] MM00007A CDMA IQ
[4] MM00006A CDMA BASE BAND
[3] 322U13216 A03 BASE BAND2
[2] 322U13214 A02 BASE BAND1
[1] 322U13212 A01 MAIN CPU
[17] SEC200-5222 Z3 POWER SUPPLY1
