Anritsu VNA Master MS2026C Maintenance Manual

7-25 Installing Main PCB and Reassembling Instrument Assembly Removal and Replacement, MS203xC
7-72 PN: 10580-00307 Rev. D MS20xxC MM
14. Attach the 2 RF coaxial cables from the VNA PCB to the SPA PCB as follows:
• Route the cable from the Ext Ref In BNC connector on the top connector panel through the notch
to the Main PCB and continue routing past the fan to the SPA PCB. Attach the cable to SPA PCB
MMCX connector J6000 Ext Ref (item 9 in Figure 7-38).
• Route the cable from the Ref Out 10 MHz SMA connector on the top connector panel through the
notch to the Main PCB and continue routing past the fan to the SPA PCB. Attach the cable to SPA
PCB MMCX connector J6001, 10 MHz Out (item 11 in Figure 7-38).
Replace the cable tie near the fan that holds the 4 RF cables that connect the case front to the case back
(item 7 in Figure 7-36, part number 3-721-2,if used).

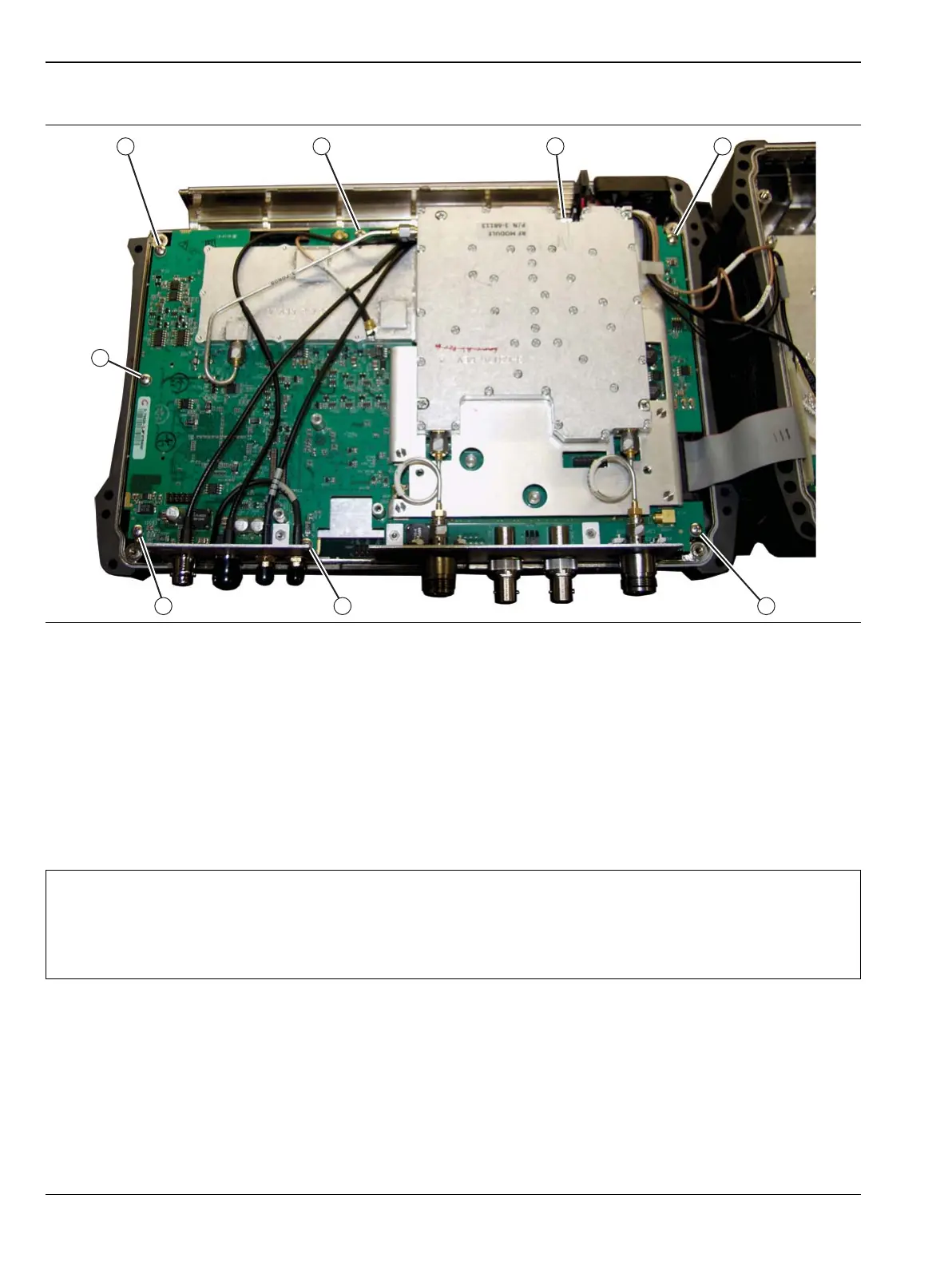

Figure 7-37. VNA PCB Assembly Screw Locations – MS2036C Shown
Caution
All cables along the lower edge of the Mother Board and VNA PCB Assembly must be routed in such
a manner that they will not be pinched between, or protrude between, the case halves of the upper
battery compartment. If any cable protrudes into the battery compartment when the case is closed,
then the cable may be damaged by pinching, or by the battery when it is inserted, or it may prevent
battery insertion.
1
2
3
4
8
7
5
6
