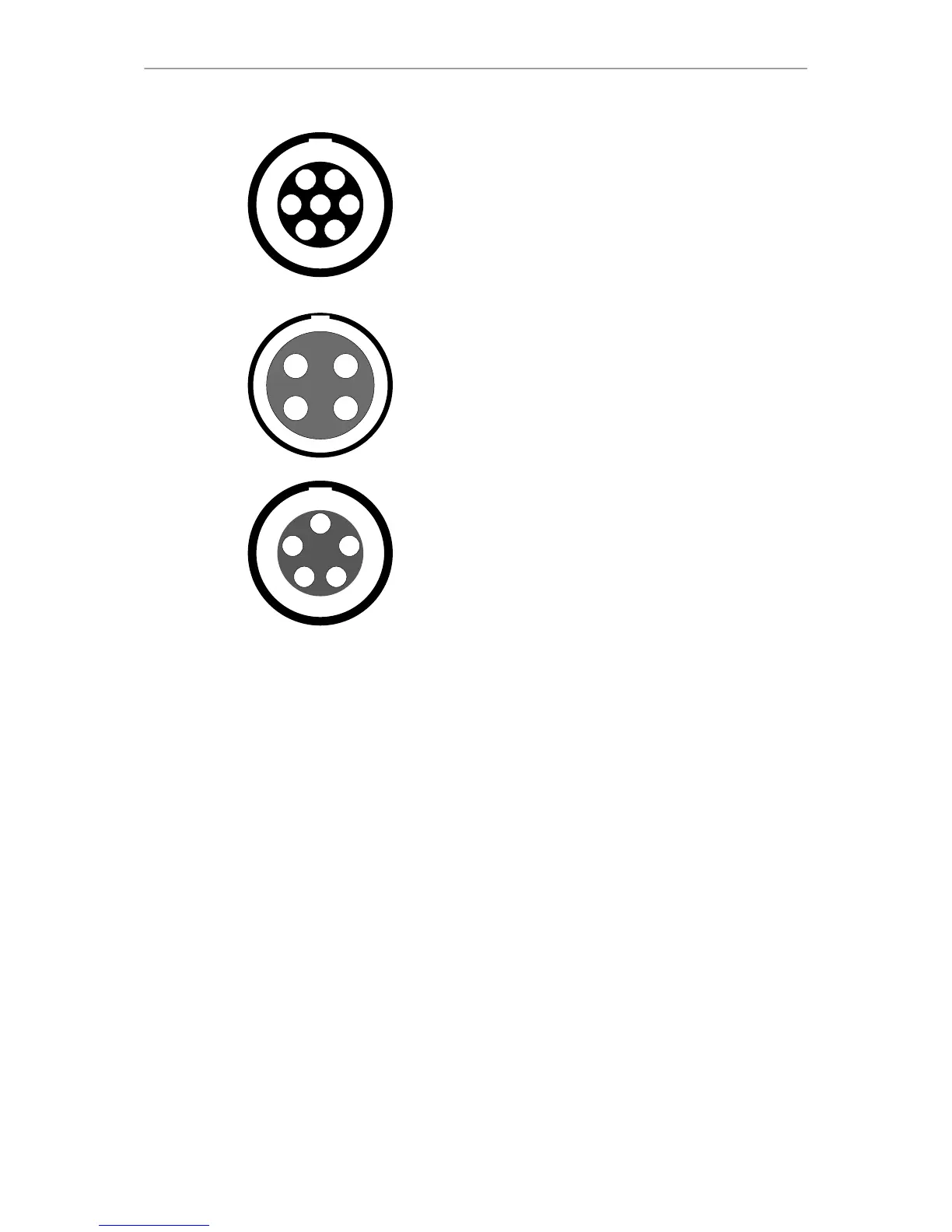

EXT
Connector ID: LEMO EEG.1B.307
1 Can1 H
2 Can1 L
3 Can2 H
4 Can2 L
5 VBat (1A max)
6 Gnd
7 R/S
1
4
2
3
LBUS (on PL lens mount titanium)
Connector ID: LEMO EEG.0B.304
1 Gnd
2 Can L
3 VBat
4 Can H
2
4
3
1
5
Timecode
Connector ID: LEMO EEG.0B.305
1 Gnd
2 LTC in
3 - (no tuning)
4 - (no tuning)
5 LTC out
