ARRI ALEXA Mini - Camera Layout - Back Side; Back Side Components Identification; Hot Surfaces Safety Warning

Camera layout 19
Back
1
2
3
8
9
1
0
1
1
4
5
6
7

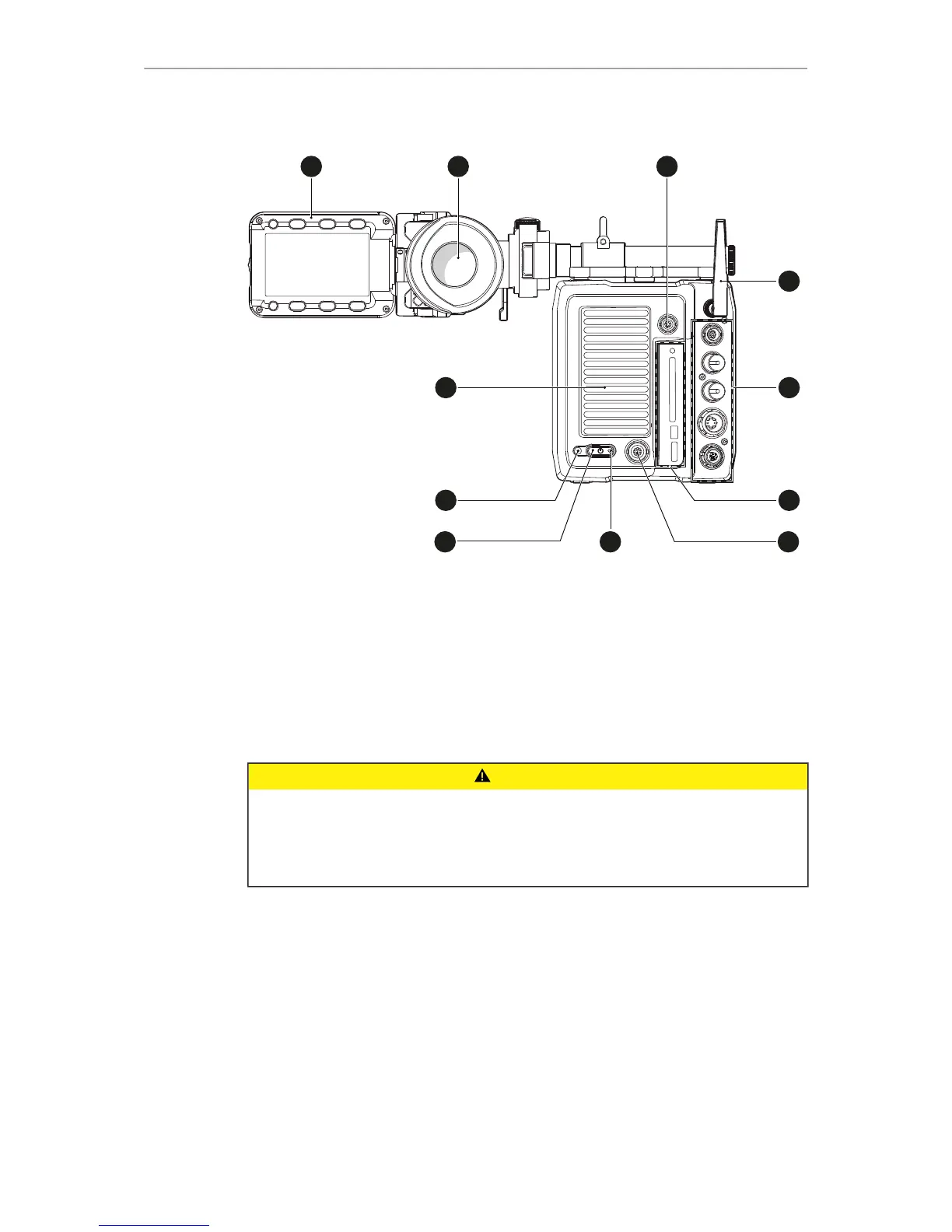

1 Fold-away monitor (MVF-1)
2 OLED eyepiece
3 Timecode connector
4 White radio antenna
5 I/O panel
6 Media panel (CFast 2.0 card slot, USB)
7 Ethernet connector
8 Boot status LED
9 Power button
10 Recording status LED
11 Fan outlet
CAUTION!
Hot surfaces! Risk of injury and damage!
During extended operation or operation in high ambient temperatures, the fan outlet
at the camera rear, the CFast drive and the CFast card can get hot.
Never cover, obstruct or block the fan in- or outlets while the camera is powered.
