Software
The software in the IPBS2 can be updated by downloading new software without disconnecting
the equipment. The new software is stored in flash memory. See System Downgrade for IPBS2
and DB1 on page 132 for information.
Connectors
l Two 8-pin RJ45 modular jacks for LAN/PoE and powering
LEDs

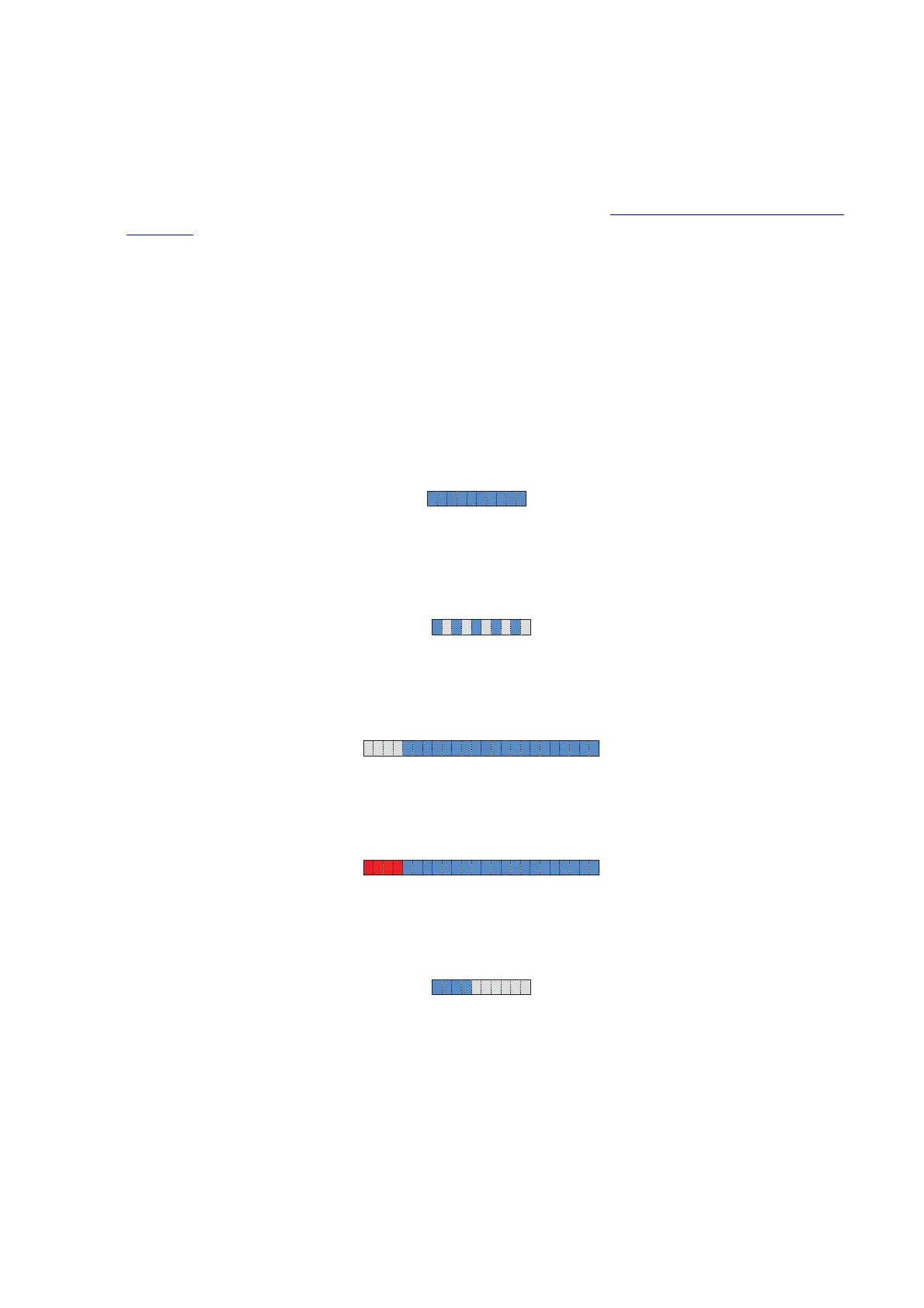

The IPBS2 has one RGB LED to indicate status. This section describes the different indications
and when they shall be used. In the illustrations below: Each blink pattern is represented by a
number of blocks where each block is 100 ms. Light grey blocks means that the LED is off.
Whenever the indication is changed the new pattern always starts from the first block.
Idle/OK Solid blue. IPBS2 operational and no
traffic on the IPBS2.
Starting up/
searching
100 ms blue, 100 ms off. The IPBS2 is in start-up phase,
e.g. waiting for parameters
from Master, or is searching
for air synchronization.
Active traffic 400 ms off, 2000 ms blue. IPBS2 operational and traffic
on the IPBS2.
Fully occupied for
speech traffic
400 ms red, 2000 ms blue. Fully occupied with traffic.
Software download 400 ms blue, 600 ms off. Download of firmware in
progress.
