Avaya IPBS2 - Connect External Antennas

38 Avaya 374x DECT Telephones - User Guide 02/2016

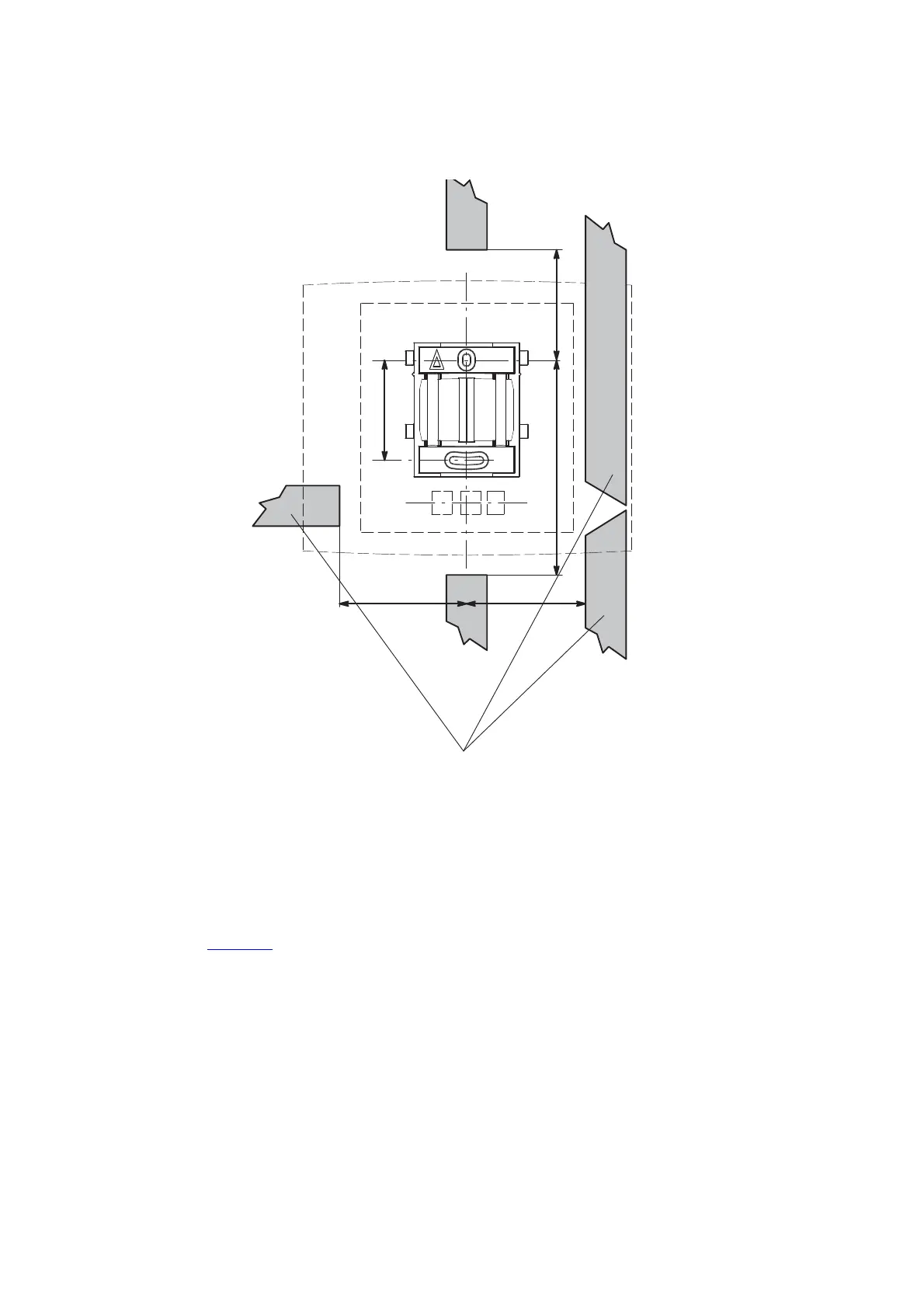

Figure 10. Minimum distances between a cable duct and the mounting bracket
Connect External Antennas (only IPBS2 and DB1)
1. Position the included antenna bracket above the mounting bracket with a minimum
distance of 74 mm (250 mm maximum) and mark the two holes for the antenna bracket,
see figure 11
on page 40 (1).
2. When using wall plugs: Drill the two holes using a  6 mm drill and insert the included wall
plugs.
3. Position the antenna bracket to the wall and fasten it with the two included  3.5 mm
screws.
Figure 8.
TOP
65 mm
125 mm
70 mm75 mm
57 mm
15 mm thick cable ducts
