Installation of the IPBL
Avaya 374x DECT Telephones - User Guide 02/2016
51

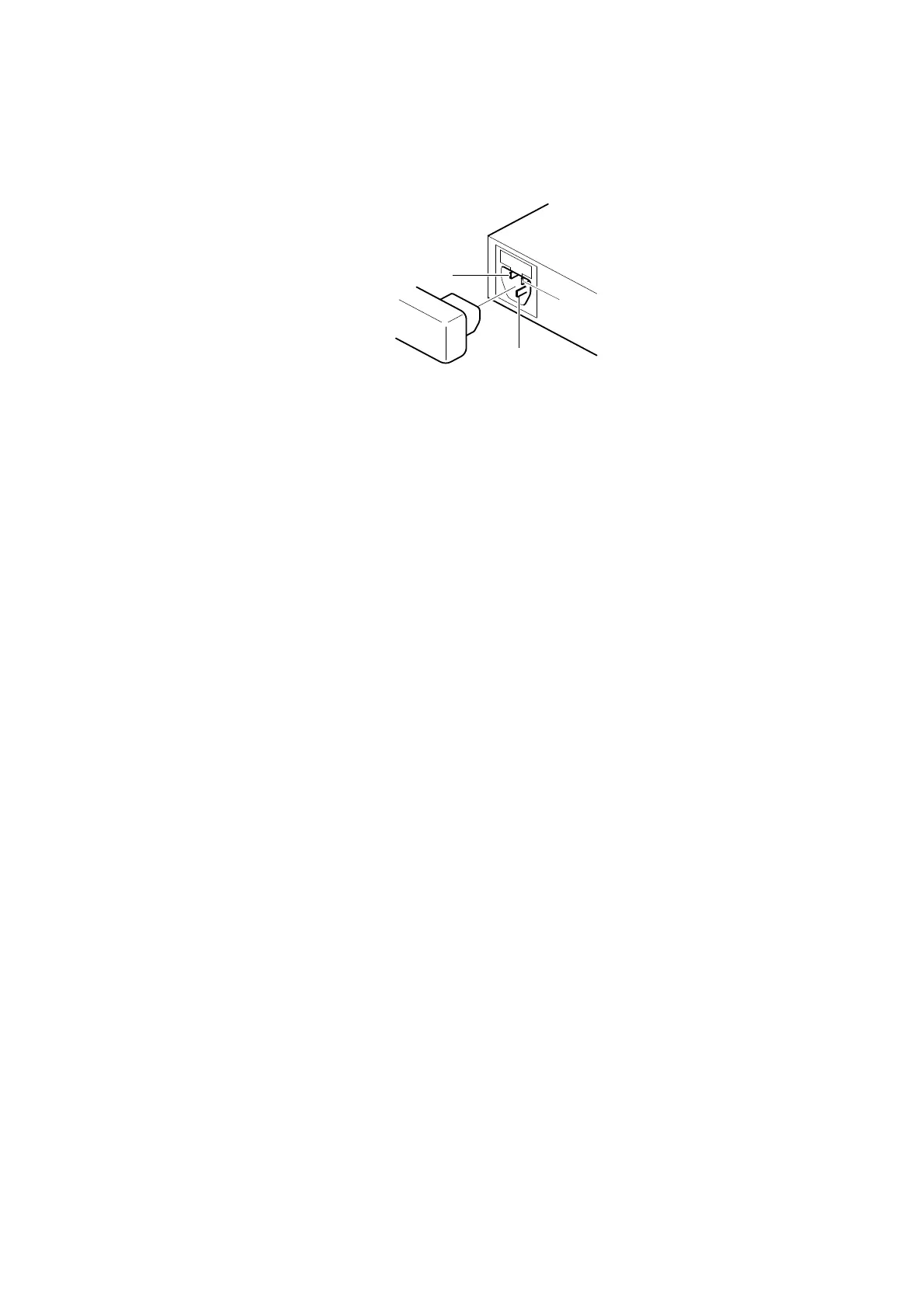

Figure 19. Pinning of the 110/230 VAC power supply
1. Connect the power cable on the IPBL.
2. Connect the power cable in a wall socket with protected earth.
3. The IPBL is switched on.
4. Connect the cables in the following order:
l Ethernet cable (A) LAN1 port must be used (LAN2 port is for administration only).
l If you enable RSTP, both the ports are utilized by the system. See Enabling RSTP
(only for IPBL) on page 132
l Synchronization cable (ring sync, reference sync) (B)
l Base station cable (RFP cable)
Note: The connected RFPs must not be connected to protective earth.
5. Monitor the total current consumption from the GUI.
6. Ensure that the current consumption does not exceed the following values:
Note: Max current consumption is 1,9/0,9 A when supplied with 110/230 VAC. The IPBL current
consumption is 0.3 A.
Figure 14.
