PAGE 133
Option: Remote Control Software
9 OPTION: MAGIC DC7/AC1 XIP LAN
The fee-based option MAGIC DC7/AC1 LAN (order number 430260) allows
you to control and monitor up to ten MAGIC DC7/AC1 XIP Systems within a
network.

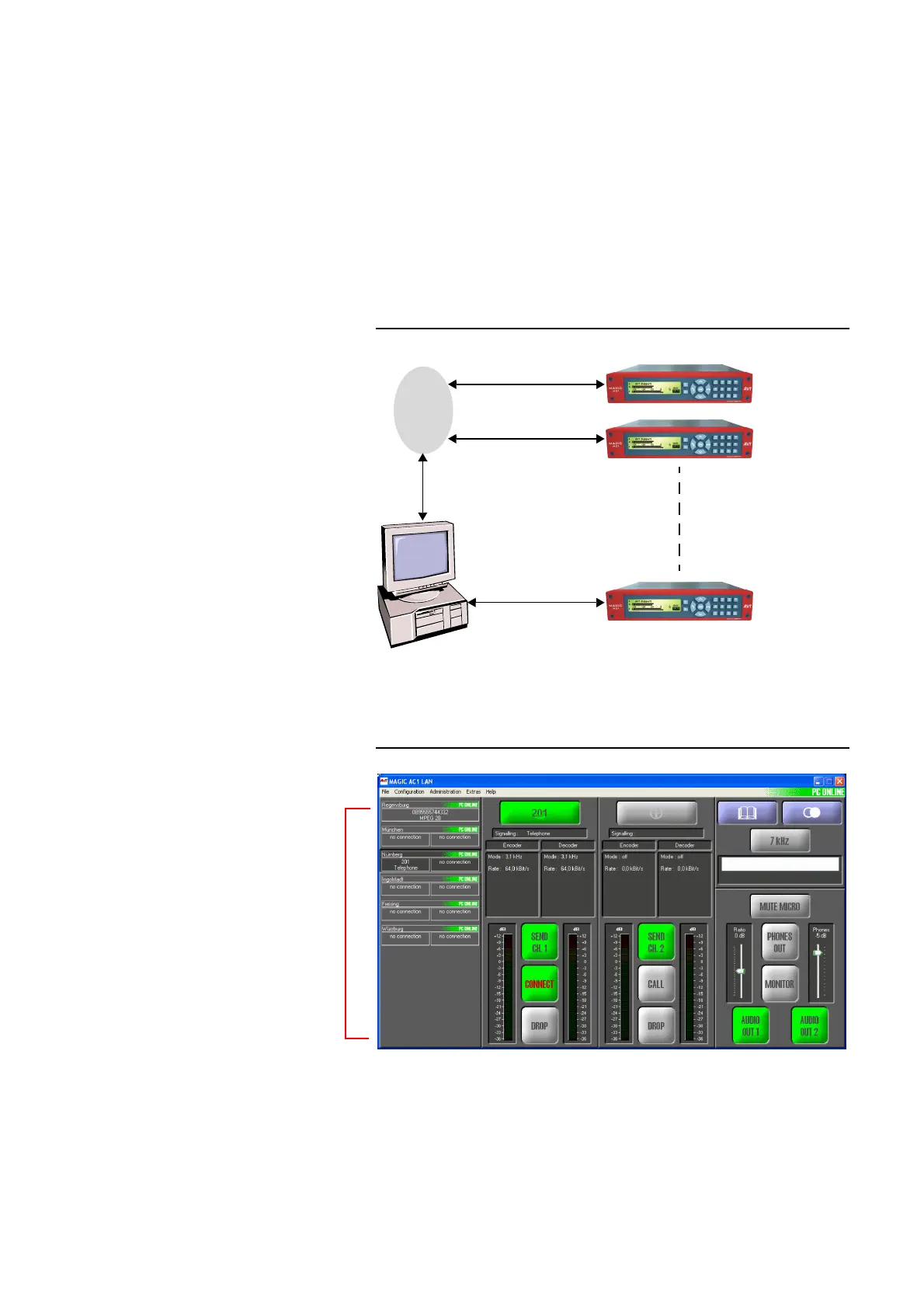

FIG. 89 APPLICATION WITH MAGIC DC7/AC1 XIP LAN
The systems can be connected either directly via several serial interfaces or via
LAN converters.
FIG. 90 WINDOW TO CONTROL SEVERAL AUDIO CODECS
On the left side of the main window, each Audio codec installed within the
network is displayed. In the status line, the name of the codec (see Page 70,
System Name) and the PC status is displayed. Below, two fields inform you
about the current connection status of the two available B channels. If a con-
nection exists, the calling number and the coding procedure used are dis-
played.
#1
#2
#10
LAN
LAN
LAN
RS232/LAN
LAN
List of
the available
MAGIC DC7/AC1 XIP
