AVT MAGIC Series - Assignment of the CTRL;DATA;TTL;RELAY Adapter Cable

PAGE 147
Interfaces
A4.3.2 Assignment of the CTRL/DATA/TTL/RELAY adapter cable
The adapter cable is available under the order number 490130.

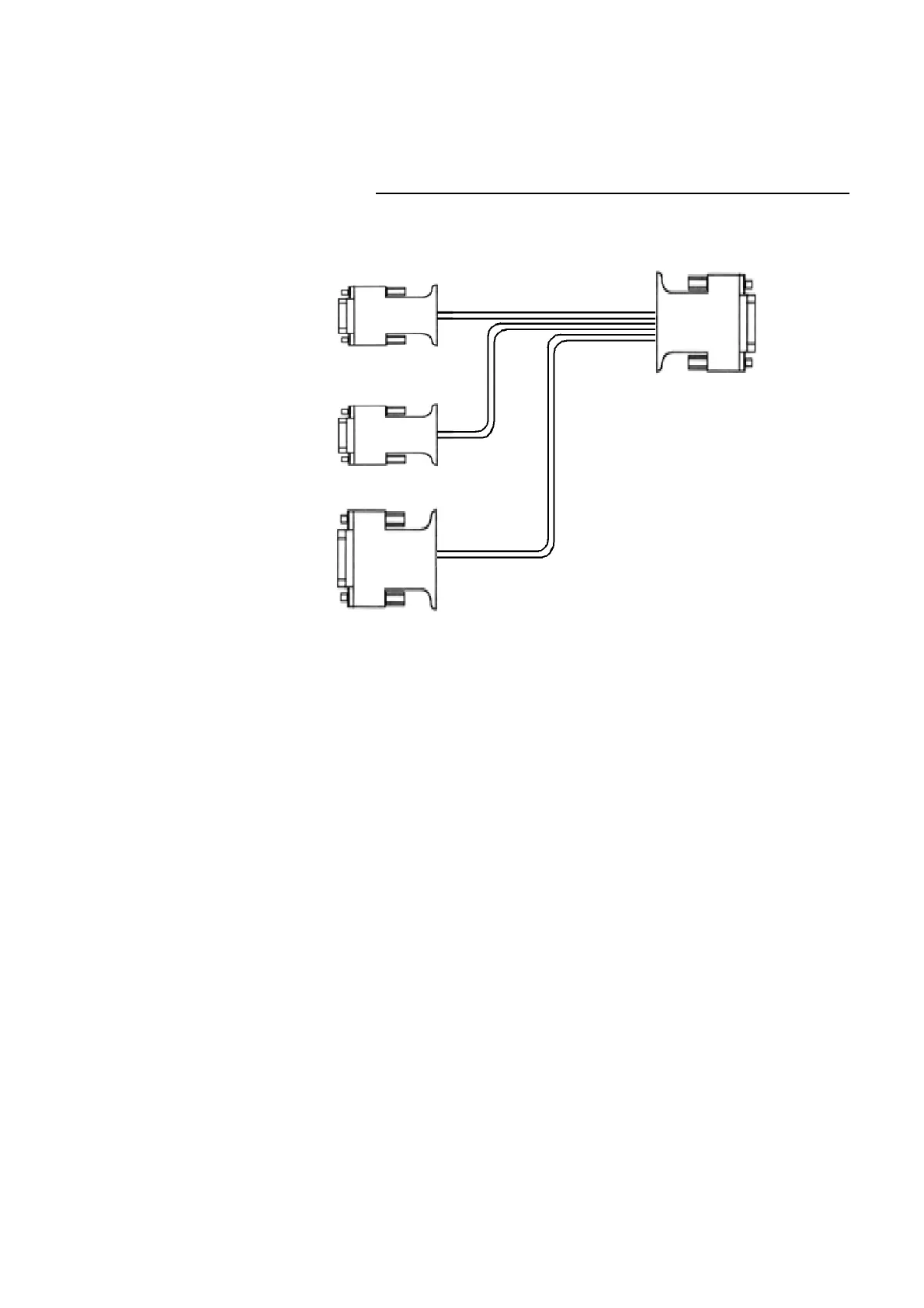

FIG. 93 ADAPTER CABLE CTRL/DATA
9 pole SUB-D socket
9 pole SUB-D socket
15 pole SUB-D socket
15 pole SUB-D connector
MAGIC DC7/AC1 XIP
DATA1/PC
DATA2
TTL/RELAY
Pin 2: RS232 RXD/RS485 Data (a)
Pin 5: GND
Pin 3: RS232 TXD/RS485 Data (b)
Pin 2: RS232 RXD/RS485 Data (a)
Pin 5: GND
Pin 3: RS232 TXD/RS485 Data (b)
Pin 5: GND
Pin 7: Relay 1B
Pin 6: Relay 1A
Pin 8: Relay 2A
Pin 9: TTL1
Pin 10: TTL2
Pin 11: TTL3
Pin 12: TTL4
Pin 13: TTL5
Pin 14: TTL6
Pin 15: Relay 2B
Assignment
see table
