Interfaces
A4.5 Headset/Micro Audio interface

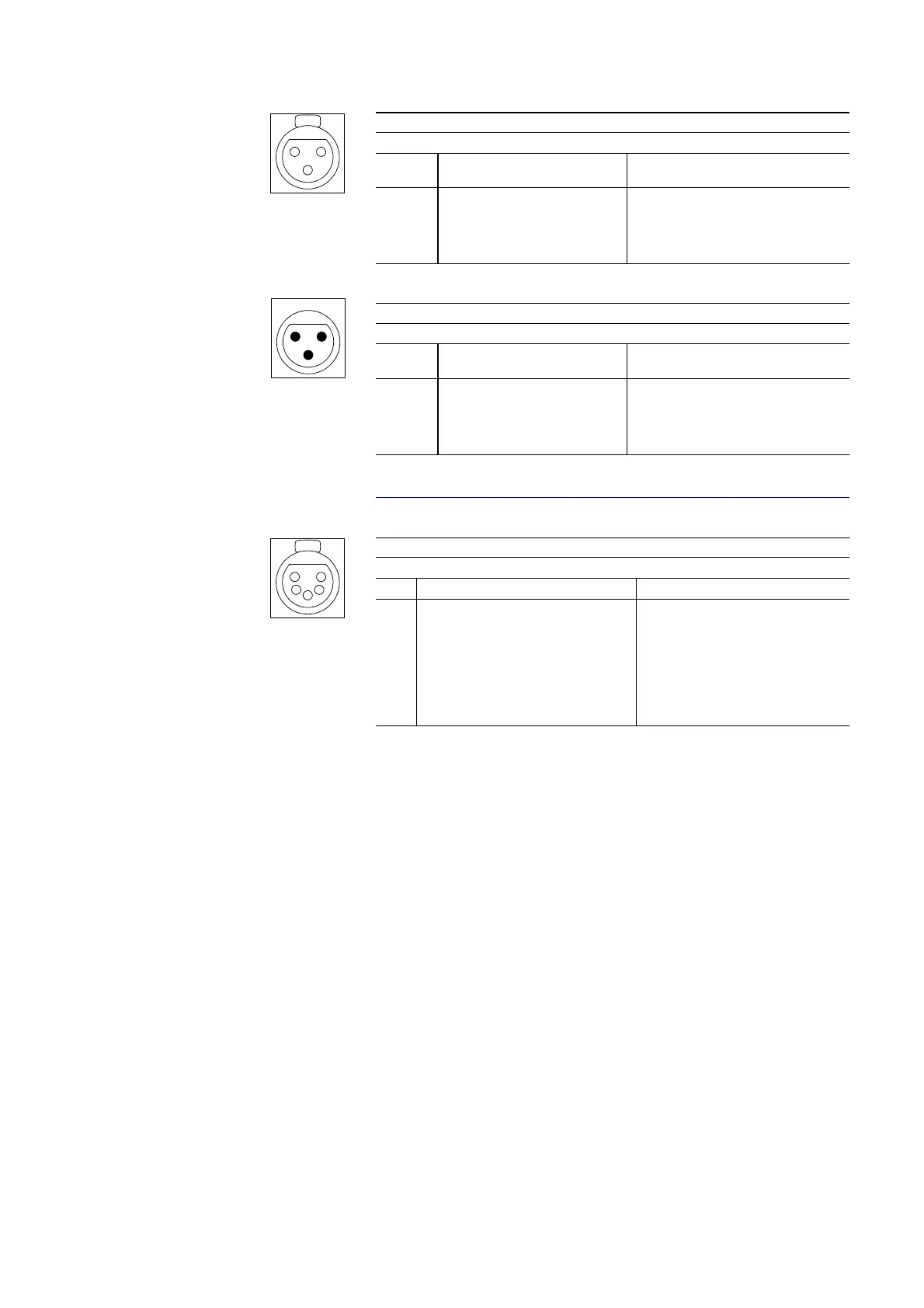

TAB. 16 PIN ASSIGNMENT: CLOCK INPUT (CLK IN)
Socket: 3 pole XLR
Connec-
tion
Signal Electrical characteristics
1 GND TTL
2CLOCK IN
3not used
TAB. 17 PIN ASSIGNMENT: CLOCK OUTPUT (CLK OUT)
Connector: 3 pole XLR
Connec-
tion
Signal Electrical characteristics
1 GND TTL
2CLOCK OUT
3not used
TAB. 18 PIN ASSIGNMENT: HEADSET/MICRO AUDIO INTERFACE
Socket: 5 pole XLR
Pin Signal Electrical characteristics
1 MIKROPHON a /+12V phantom power Microphone level:adjustable 0... 45 dB
2MIKROPHON b
3GND
4 HEADSET right channel
5 HEADSET left channel
Push
12
3
2
1
3
Push
15
3
24
