PAGE 15
Safety
1 CONSTRUCTION
The functions of the MAGIC DC7 XIP are implemented in a single unit. The
MAGIC AC1 XIP is additionally equipped with a module for MPEG Coding.
The system is designed for mounting in a half 19" rack (1 U).
Optionally, a MAGIC Audio Codec DUAL 19“ Mounting Kit (ID: 800212) is
available for the installation of two MAGIC DC7/AC1 XIP systems next to
each other.
The MAGIC AC1 XIP RM version is carried out as 19’’ x 1 U unit and has an
integrated power supply.

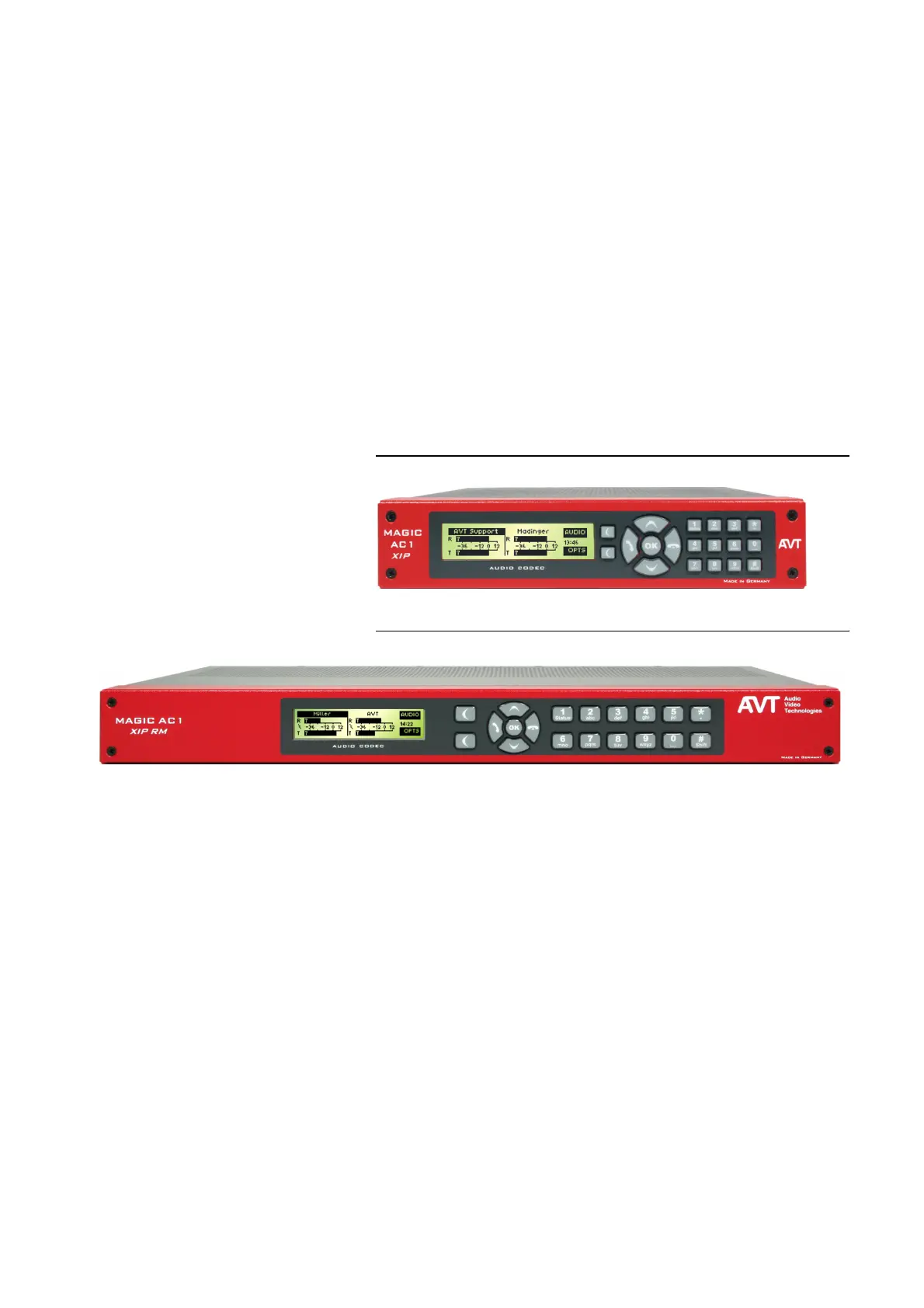

FIG. 1 FRONT SIDE: MAGIC AC1 XIP
FIG. 2 FRONT SIDE: MAGIC AC1 XIP RM
