• The actual available data rate depends on the number of the B channels
used and the Mode setting. Please select OFF, if you do not want to use the
data channel.
The actual bit rates are displayes in the main window:
– Rate: actual Audio data rate
– Data: band width J.52 data channel and
actual net bit rate (x kbit/s net)
– PAD: actual net bit rate (x kbit/s net) Ancillary Data

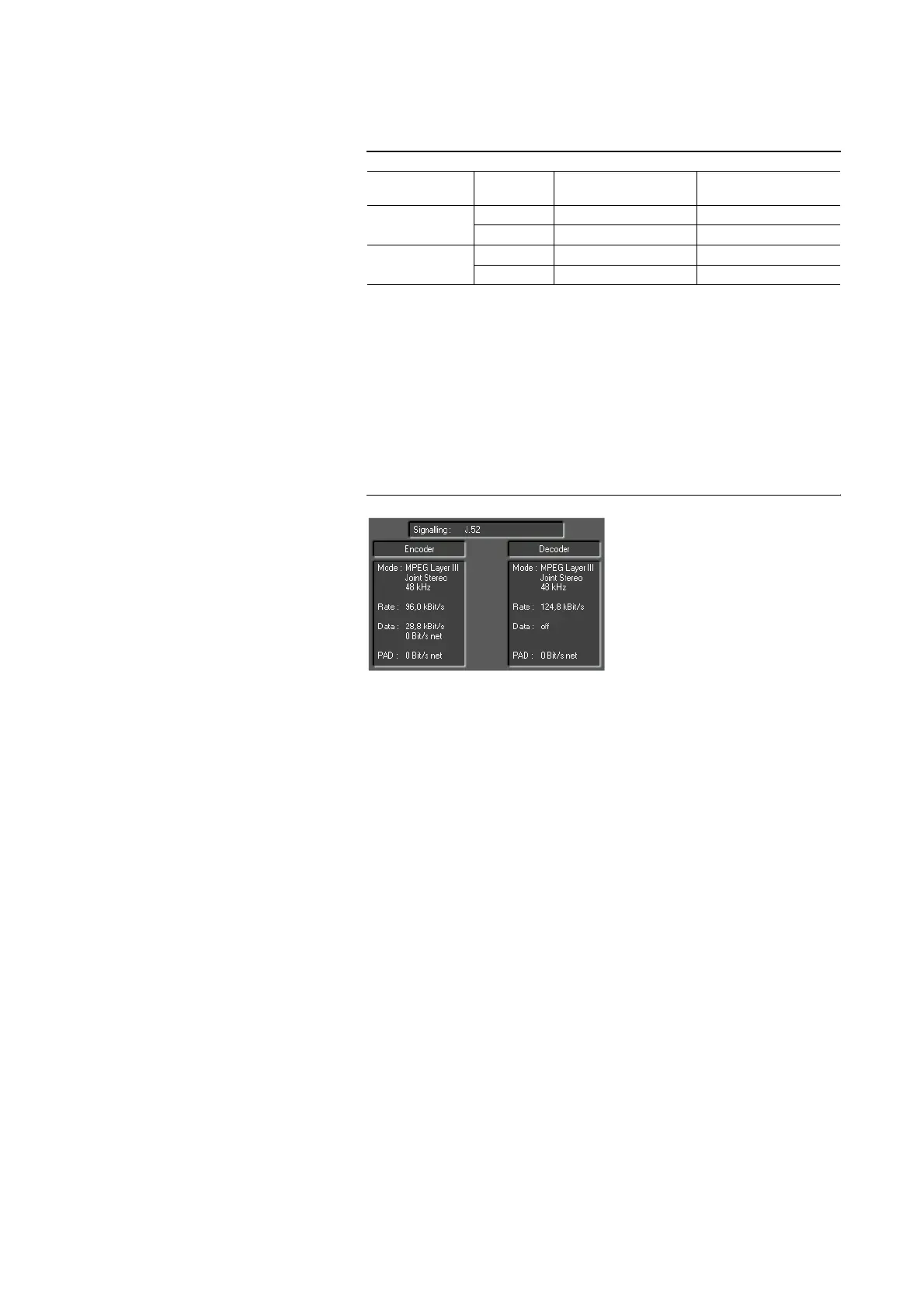

FIG. 38 DISPLAY OF THE BIT RATES IN THE MAIN WINDOW
TAB. 1 BIT RATE IN THE J.52 DATA CHANNEL
Mode
Data Channel 1/2
Number of
B-Kanäle
Bit Rate
MPEG Audio
Bit Rate
Data channel
LOW
1 56-kbit/s 6,4-kbit/s
2 112-kbit/s 12,8-kbit/s
HIGH
1 48-kbit/s 14,4-kbit/s
2 96-kbit/s 28,8-kbit/s
