18 BD High Throughput Sampler User’s Guide

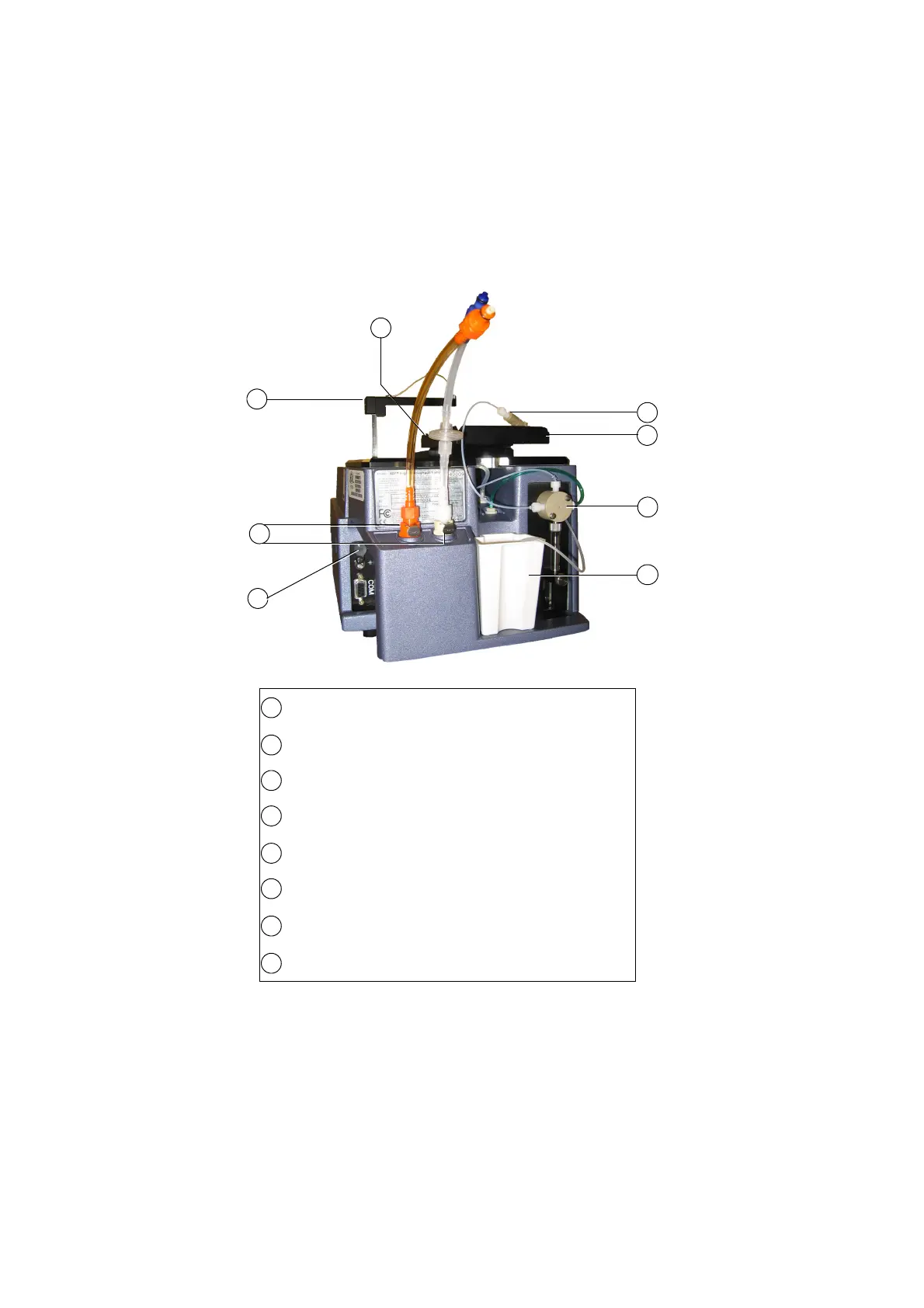

Figure 1-4 HTS unit for BD FACSCanto II—rear view
1
4
Probe assembly—moves front to back and up and down to transfer
sample between plate holder and injection port/wash station
Fluidics tubing: sheath (clear, with in-line filter) and waste (orange)
Door sensor cable connector—cable detects if safety door is open
Injection port/wash station—provides interface for sample injection
and probe washing
Sample coupler—connector between HTS unit to cytometer SIT
Plate holder—moves left to right and front to back to position plate so
the probe can pick up sample
Secondary pump and valve—delivers sample to flow cell in high-
throughput mode
Overflow reservoir—collects potential overflow from the injection port/
wash station or drips from the cytometer SIT
1
2
3
4
5
6
7
8
5
7
2
8
3
6
