User Defined Function Data - 153

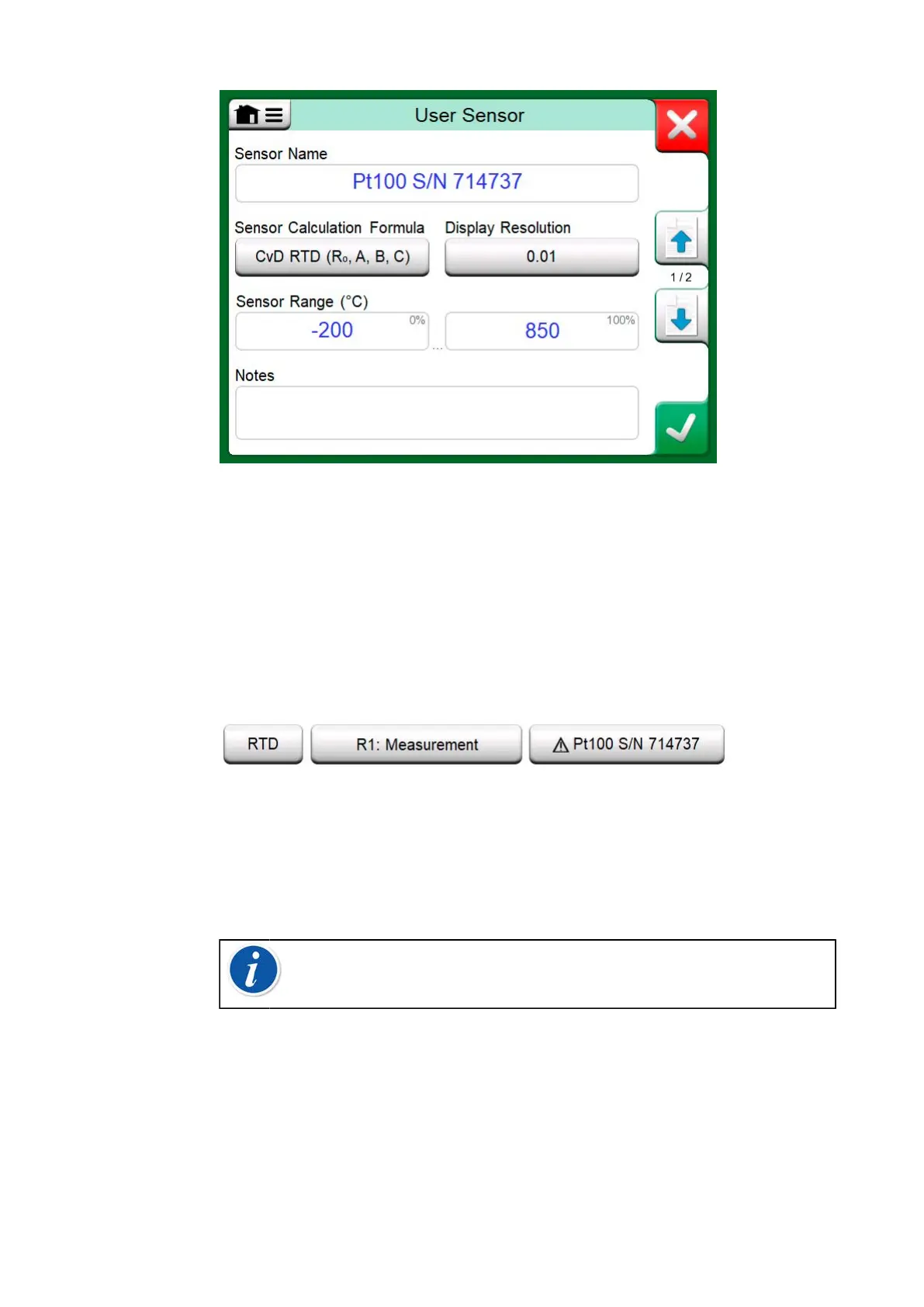

Figure 145: 1
st
configuration page
After the pages with pre-entered PRT sensors, there is room for user
defined PRT sensors.
When a user defined PRT sensor is in use, the sensor button displays a
warning symbol (triangle with an exclamation point inside) together with
the name of the user defined PRT sensor. See an example below on how
a user defined PRT sensor is shown in Calibrator. Other MC6-T's main
functions display the user defined PRT sensors similarly.
Figure 146: User defined PRT sensor in Calibrator
When defining custom sensors, the Sensor Calculation Formula on the
first configuration page is important. It affects what is available on further
configuration pages. The following subchapters present the use of different
formulas.
Note: For further information about Sensor Calculation
Formulas, refer to literature related to calibrating Platinum
Resistance Temperature sensors.
To Next Page
