Measurements - 45
Voltage Measurement
MC6-T's voltage measurement terminals are listed below as they are
shown in Figure 28: Voltage measurement terminals:
• TC1, measurement range: -1.01 to +1.01 VDC.
• TC2, measurement range: -1.01 to +1.01 VDC.
• IN, measurement range: -1.01 to +60.6 VDC.

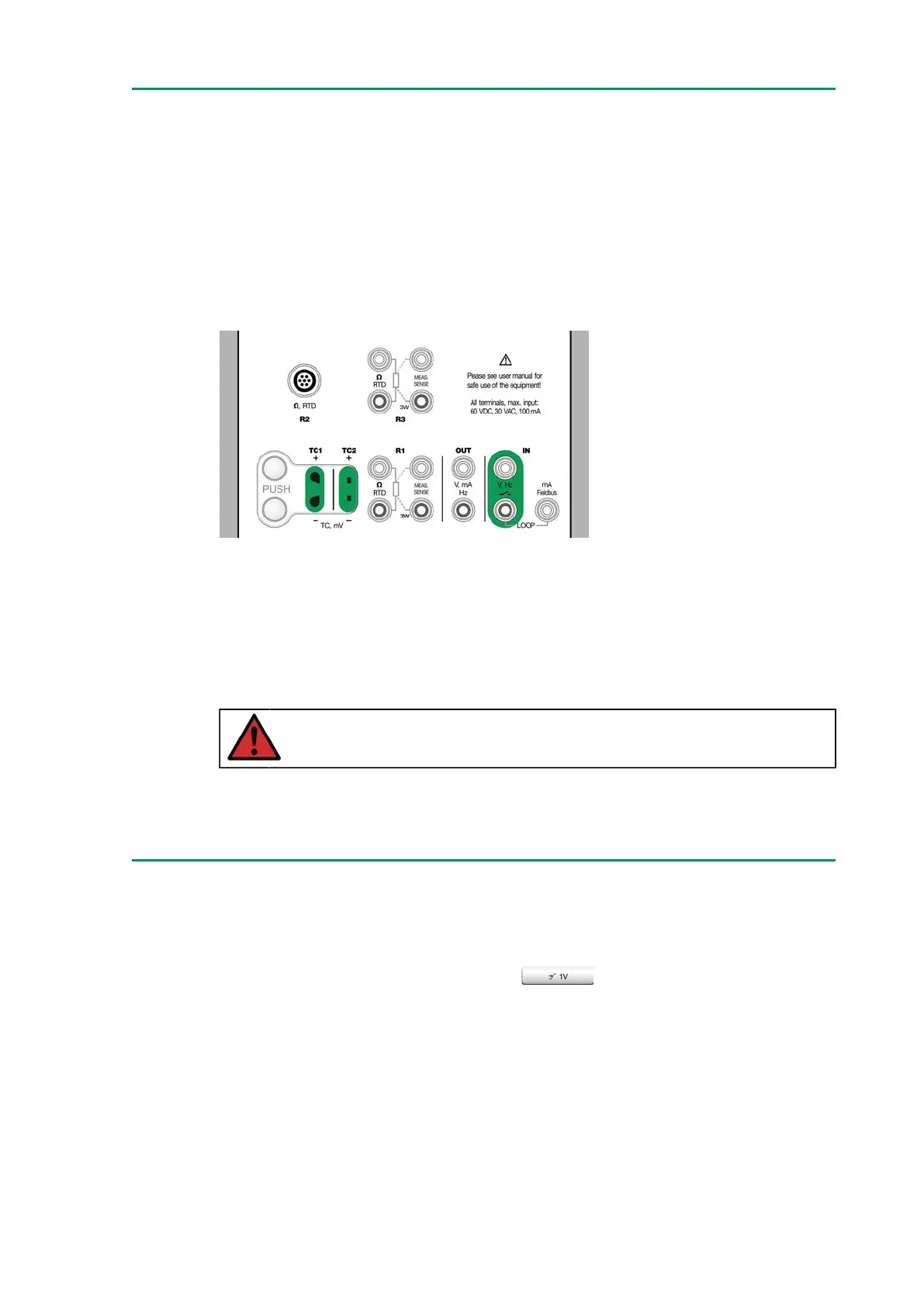

Figure 28: Voltage measurement terminals
Note that you may measure non-supported thermocouple signals using
either TC1 or TC2 port. The reading is in (milli)volts, so you need a data
table to convert the signal to temperatures. Scaling tool may be used for
converting millivolts to temperatures.
Warning: Do not apply hazardous voltages to MC6-T's
terminals.
See also chapters Voltage Generation and Temperature Measurement
(Thermocouple).
Frequency Measurement
In frequency measurement, be sure you select a suitable trigger level
setting. To do that, tap on the button . From the opened pop-up
window: Select a suitable trigger level.
