Calibration Results - 97
method. For fieldbus instruments, an additional menu option for trimming
the instrument is also available.

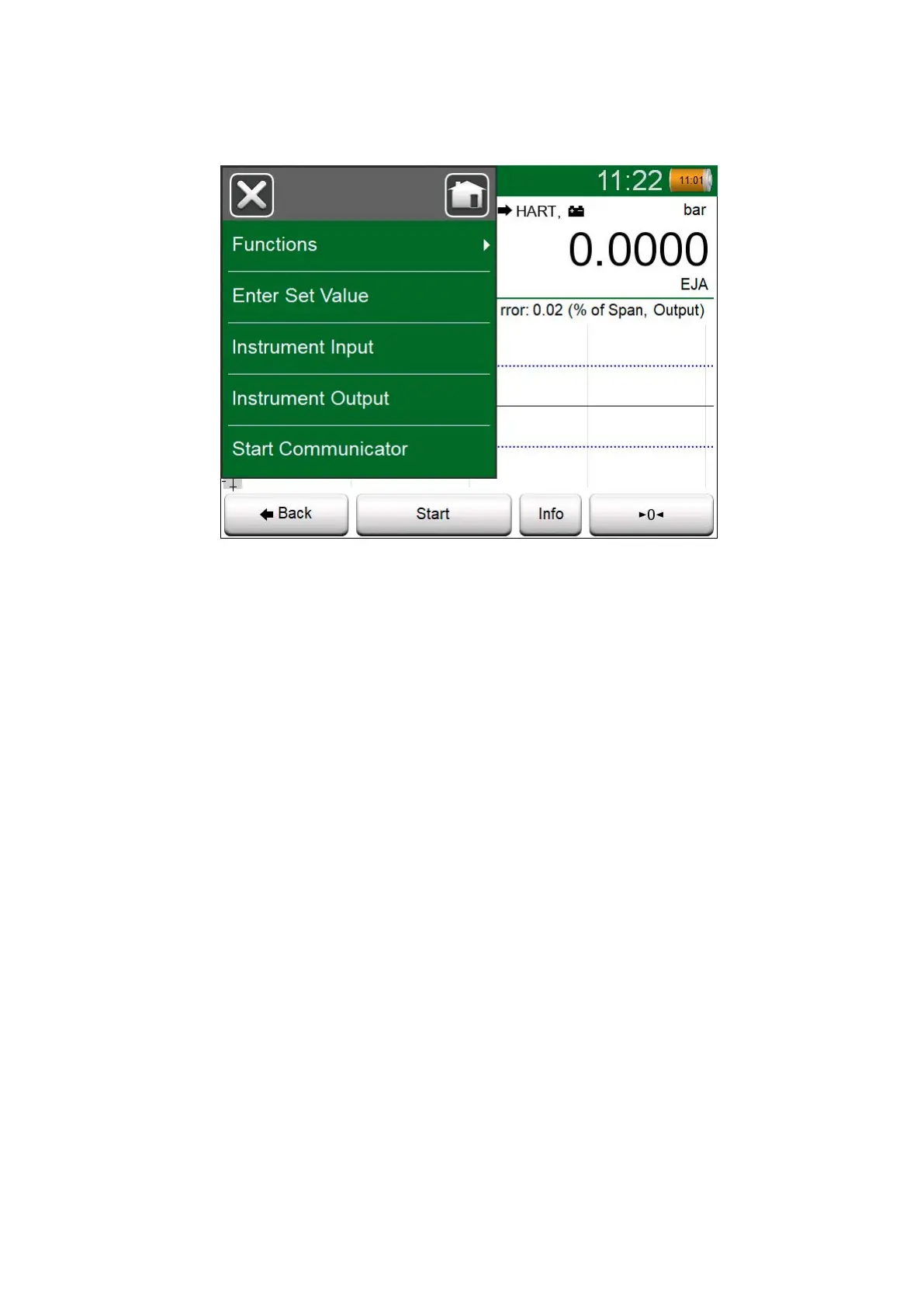

Figure 90: Menu in Documenting Calibrator when calibrating a HART
instrument
Calibration Results
Once an instrument has been calibrated, you may view saved calibration
results as follows:
• When viewing the Instrument Overview Window, select the
Calibration Results button.
The most recent saved calibration is presented. If you want to see older
results, open the menu in Calibration Results window and select Results
History. Then a list presenting all saved results opens. See Figure 91:
Calibration results history window.
To separate calibration events from each other, they have a different
shades of gray background colors. If the instrument's settings have
changed, a field with blue background is seen. Tap it to see the settings as
they were before that date/time.
