BEAMEX MC6-T - Changing the Pressure Module During Calibration

Calibrating Instruments - 95

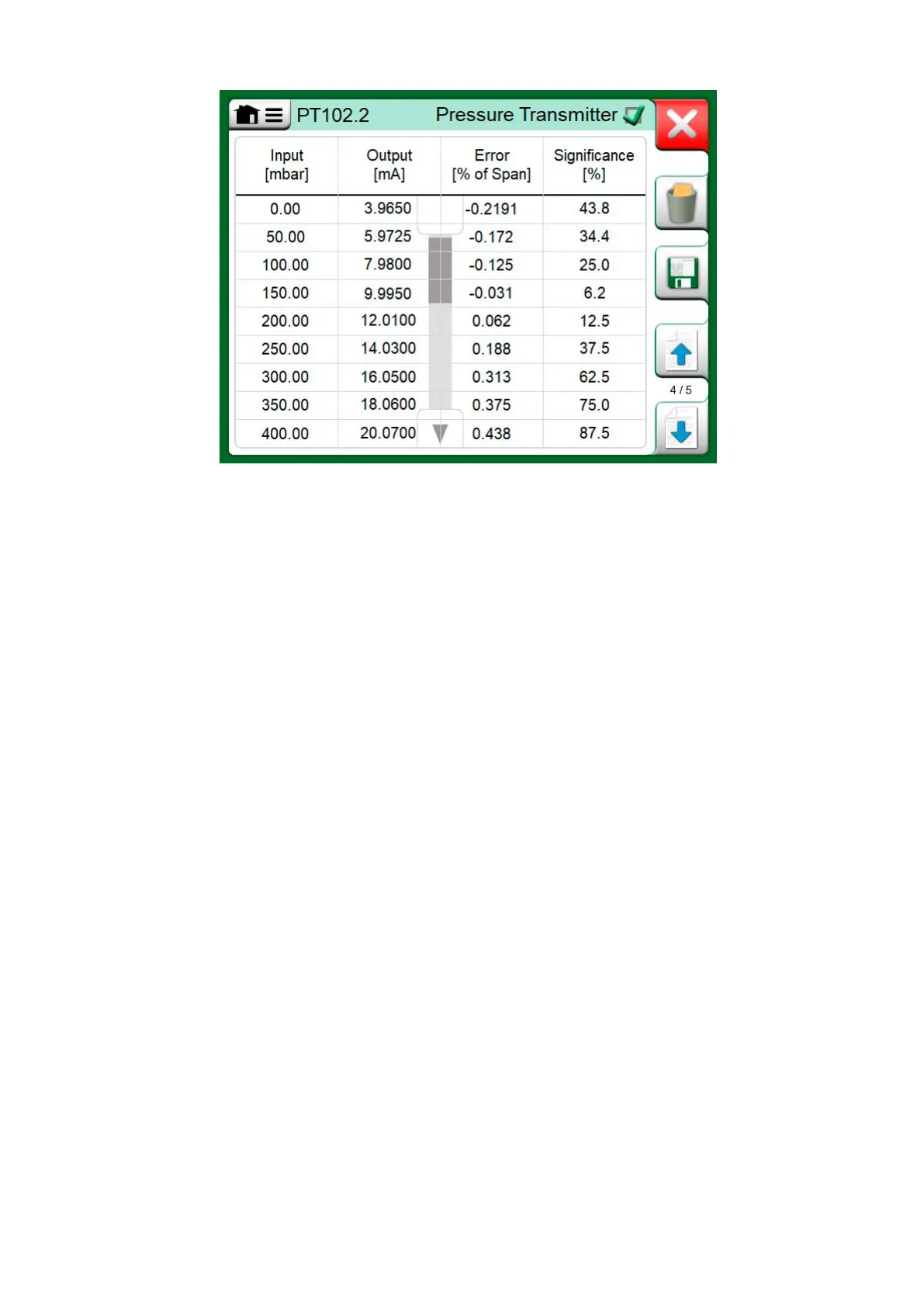

Figure 87: Numeric calibration results page. For results including
more than nine calibration points, use the scroll buttons or scroll bar
to view hidden data
Save or delete the results using the buttons available on the right side of
the window. When saving: In the following window: Tap on the Combine
with Previous Result check box, if you want to combine the most recent
result with previous results. When checked, calibration software treats all
combined results as one calibration event containing several repeats.
After saving the results, you are brought back to the Calibration window
where you may either start another calibration repeat or choose the Back
button, to end calibration for this instrument.
Changing the Pressure Module During Calibration
If a calibration requires the use of several Pressure Modules, the Pressure
Module has to be changed "on the fly". To do it, open Calibration window
menu, select either Input or Output (depending on where the Pressure
Module is connected). In the opened window:
• If the module to be used is internal or you are changing from an Internal
Pressure Module to an already connected External Pressure Module,
just tap the button below Port/Function text and select it from the
available Pressure Modules.
• If you want to change the External Pressure module in use to another
External Pressure Module connectable to the same port as the one
currently in use, tap on the button seen in Figure 88: Switching/
changing an external pressure module.. Continue with the change as
explained on MC6-T's display.
