Patient Monitor User’s manual
13-5
Caution:
Always connect the airway adapter to the sensor before inserting the
airway adapter into the breathing circuit. In reverse, always remove the
airway adapter from the breathing circuit before removing the sensor.
Always disconnect the cannula, airway adapter or sampling tube from
the CO
2
sensor when not in use.
Caution:
Do not insert the things other than sampling tube into receptacle of
sampling tube.
The sampling tubes are disposable. Please keep the sampling tube clean,
and prevent the tube from clogging by dust. It is advised to replace the
sampling tube every 12h (up to 120h of use with filter tip), the sampling
tube leaks or has been damaged and contaminated.

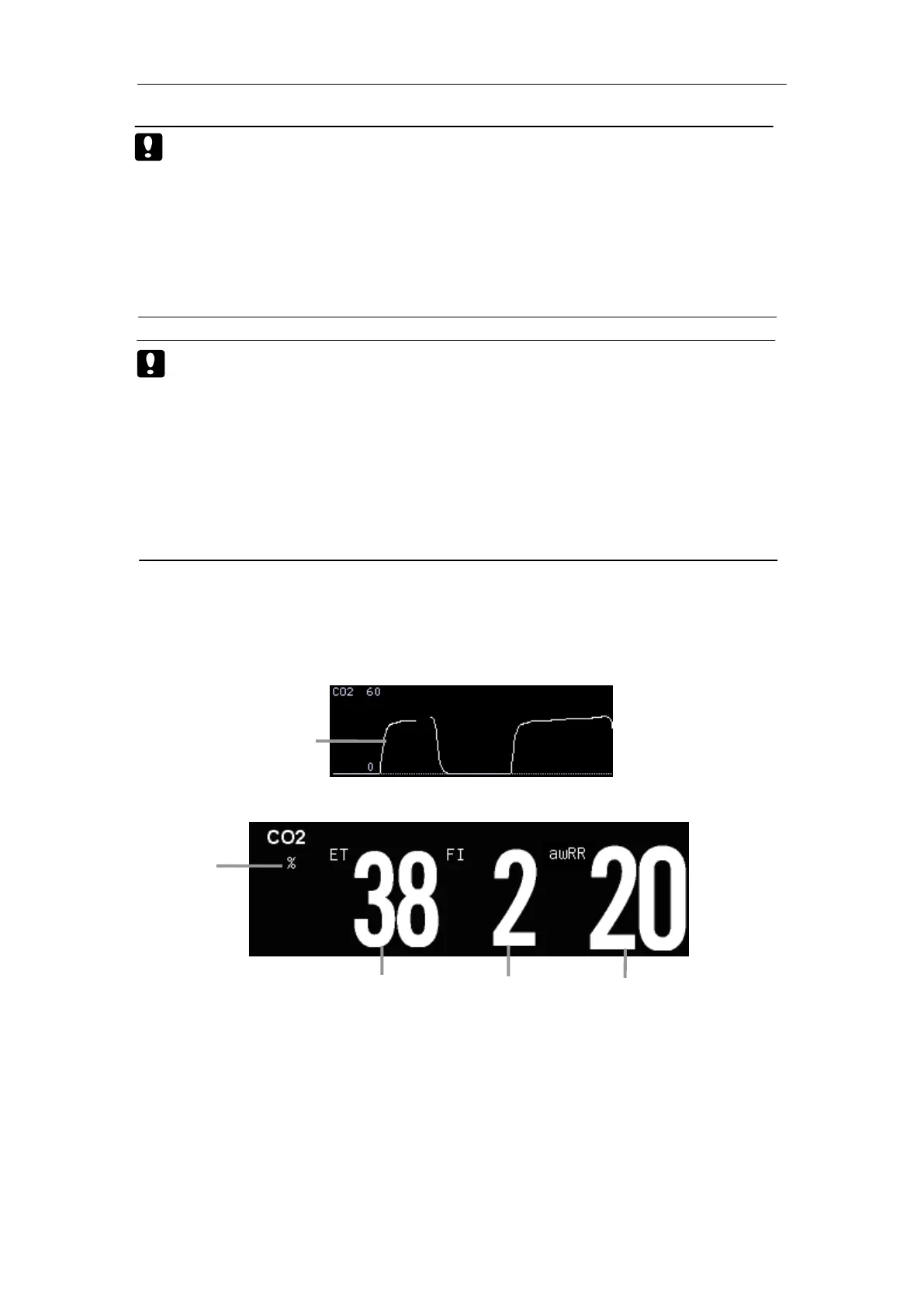

13.3 CO
2
Display
Waveform Display
Parameter Display
1. CO
2
waveform
2. Unit of CO
2
3. End-tidal CO
2
value (EtCO
2
)
4. Inspired minimum CO
2
(FiCO
2
)
5. Airway respiration rate (awRR)
1
2
3
4
5
