Getting Started 19
2.4 Preliminary Check
Complete the following steps to verify the Power supply is ready for use.
Verify AC
Input Voltage
Verify and check to make sure proper AC voltages are available to power the instrument.
The AC voltage range must meet the acceptable specication as explained in section “2.1
Input Power and Fuse Requirements”.
Connect Power
& Self-Test
Connect AC power cord to the AC receptacle in the rear panel and press the power button.
It will run through a self-test procedure initially before booting to the main screen.

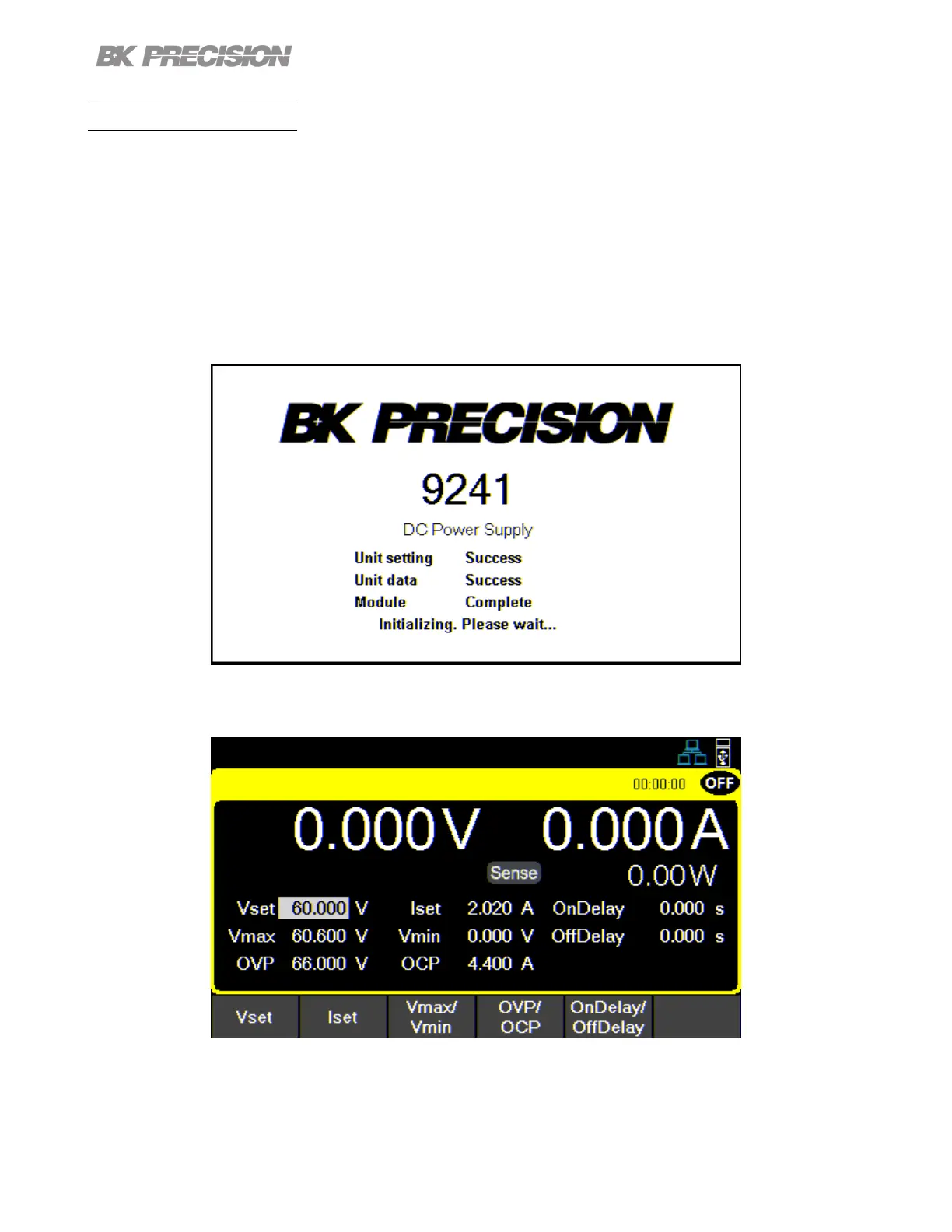

After Power on, during the self-test, the following should be displayed:
Figure 2.2 Initializing
After the system scan is complete the LCD will display as shown in Figure ??
Figure 2.3 Home Display
